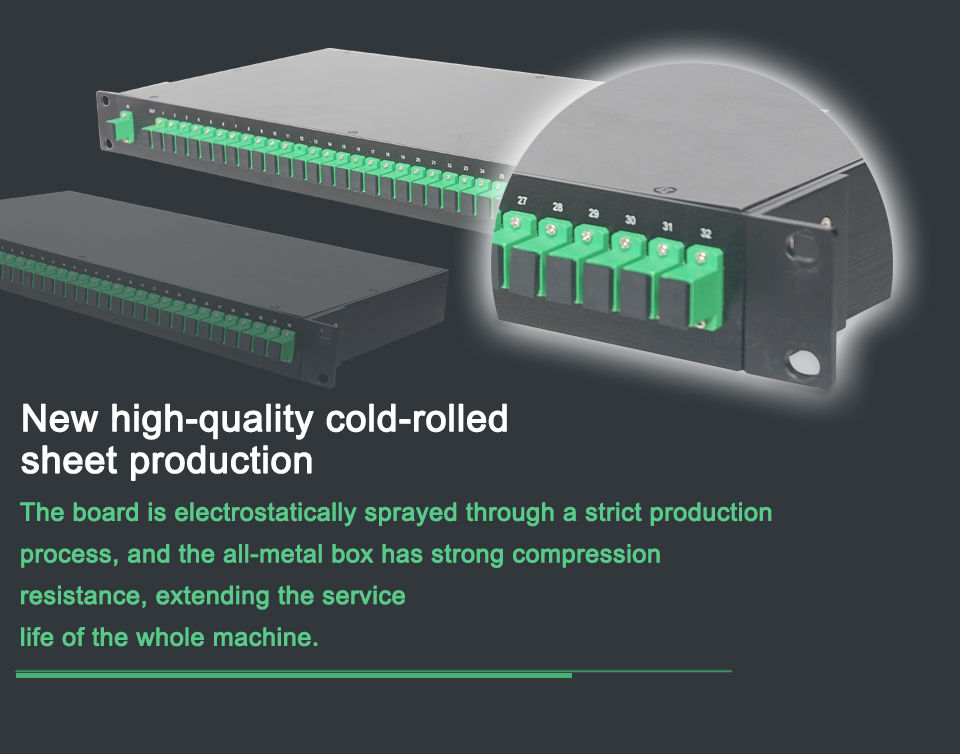

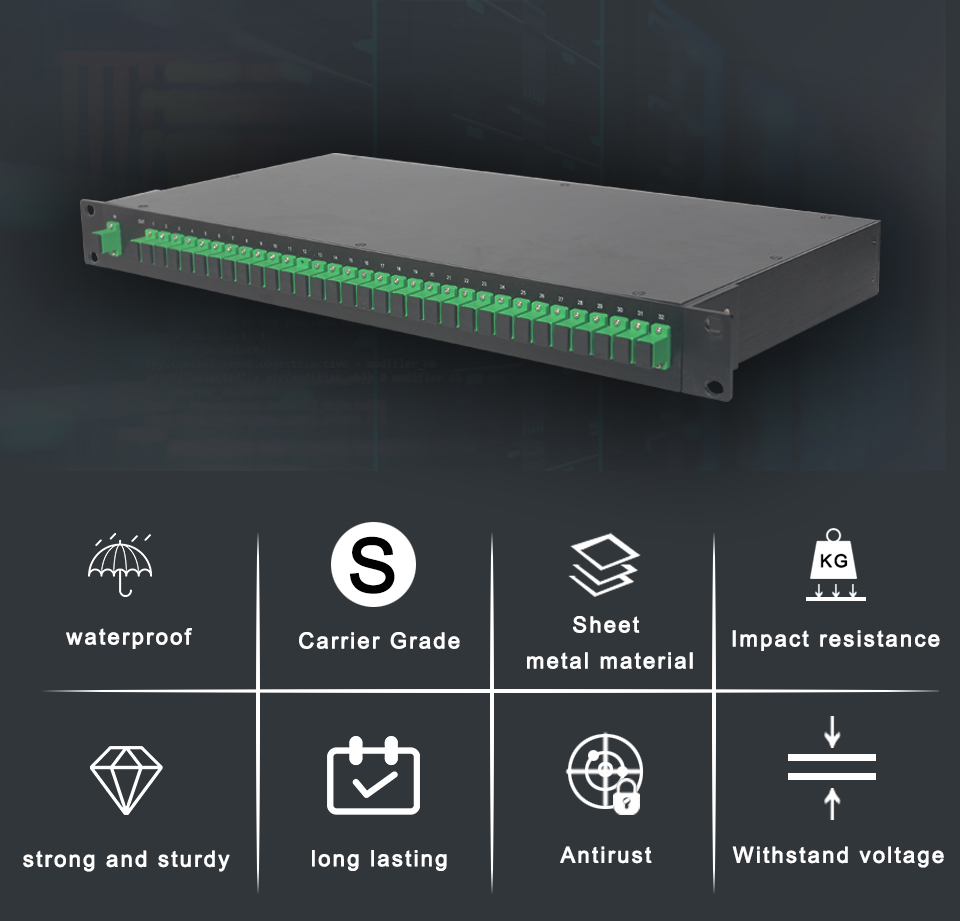

KEXINT - KEXINT 1U 1x32 SC APC Low Insertion Loss Fiber Optical Rack Mount PLC Splitter Fiber Optical PLC Splitter

Our KEXINT 1U 1x32 SC APC Low Insertion Loss Fiber Optical Rack Mount PLC Splitter is the perfect result of combining the perfect performance of all adopted raw materials. Thanks to that, fiber optic products,networking equipments,Communication system solutions,wireless transmission system,security monitoring system has many great features. Also, it is designed scientifically and reasonably. Its internal structure and external appearance are meticulously designed by our professional designers and technicians. Customers' requirements and tastes can be well satisfied.

SEND INQUIRY NOW

shipping:: Sea freight

Customization:: Customized logo (Min. Order: 500 Pieces) , Customized packaging (Min. Order: 1000 Pieces) , Graphic customization (Min. Order: 1000 Pieces)

Specification:: 1*32 SC/APC

SEND INQUIRY NOW

Products Details

Everyone needs KEXINT 1U 1x32 SC APC Low Insertion Loss Fiber Optical Rack Mount PLC Splitter, and we can offer you the best quality product of the world. KEXINT 1U 1x32 SC APC Low Insertion Loss Fiber Optical Rack Mount PLC Splitter After years of growth and development,Shenzhen Kexint Technology Co., ltd. have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.

Type:	PLC Splitter	Model Number:	1*32 SC/APC
Place of Origin:	Guangdong, China	Brand Name:	KEXINT
Size:	1U 19 Inches	type of connector:	SC/APC
type of fiber:	G657A1	Wavelenth:	1260-1650nm
fiber mode:	fiber mode	Insertion Loss:	17.1dB
Cable Diameter:	0.9mm	Operating temperature:	-40℃~85℃
Certification:	CE/ROHS/ISO9001	Warranty Time:	1 year

Products Description

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. we are provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.

Features:

Low insertion loss · Low Polarization Dependent Loss · Excellent Environmental Stability · Excellent Mechanical Stability · Telcordia GR-1221 and GR-1209 · Optional connectors termination upon request · Available in 250um & 900um fiber, 2mm or 3mm Application: Fiber to The Home (FTTH) Passive optical networks (PON) Local Area Networks (LAN) Cable Television (CATV)

Specifications：

1×32 Single Mode PLC Splitter Data Sheet
Operating Wavelength(nm)		1260-1650			Inspected Date			2018/12/8
P/N:		PLC-U-1X32			S/N:			20180308043
Fiber Type		G657A1			Fiber Length(m)			≥1.0
Connector Type	SC/APC			Package Dimension(mm)			482.6*44.45
Storage Temperature		-40～+85℃			Operating Temperature		-40～+85℃
Item		IL(dB)			PDL(dB)			RL(dB)
Wavelength(nm)		1310	1550	1310	1550	1310	1550
Spec.		MAX17.1			MAX 0.3			≥55
Port1		16.50	16.22	0.06	0.17	Pass	Pass
Port2		15.96	16.07	0.14	0.05	Pass	Pass
Port3		16.16	16.49	0.06	0.18	Pass	Pass
Port4		16.22	15.86	0.12	0.06	Pass	Pass
Port5		15.80	16.23	0.19	0.07	Pass	Pass
Port6		15.94	16.50	0.13	0.12	Pass	Pass
Port7		16.13	16.49	0.16	0.09	Pass	Pass
Port8		15.85	16.51	0.10	0.15	Pass	Pass
Port9		16.33	16.07	0.06	0.16	Pass	Pass
Port10		16.19	16.42	0.05	0.10	Pass	Pass
Port11		16.34	16.57	0.18	0.16	Pass	Pass
Port12		15.88	15.81	0.11	0.13	Pass	Pass
Port13		15.98	16.40	0.16	0.10	Pass	Pass
Port14		16.23	16.51	0.14	0.07	Pass	Pass
Port15		16.12	16.57	0.15	0.07	Pass	Pass
Port16		16.35	16.02	0.02	0.06	Pass	Pass
Port17		16.52	16.47	0.17	0.03	Pass	Pass
Port18		16.18	16.40	0.02	0.11	Pass	Pass
Port19		15.85	16.13	0.02	0.10	Pass	Pass
Port20		16.55	16.49	0.03	0.02	Pass	Pass
Port21		16.53	16.29	0.08	0.17	Pass	Pass
Port22		16.14	16.27	0.13	0.05	Pass	Pass
Port23		15.86	16.31	0.11	0.09	Pass	Pass
Port24		16.51	16.40	0.08	0.18	Pass	Pass
Port25		16.30	16.12	0.12	0.04	Pass	Pass
Port26		16.57	16.18	0.08	0.12	Pass	Pass
Port27		15.87	16.54	0.10	0.17	Pass	Pass
Port28		16.35	16.56	0.05	0.11	Pass	Pass
Port29		16.39	16.36	0.04	0.02	Pass	Pass
Port30		16.36	16.24	0.03	0.01	Pass	Pass
Port31		16.54	16.51	0.16	0.16	Pass	Pass
Port32		16.35	16.49	0.14	0.09	Pass	Pass
Input		N/A							Pass	Pass
MAX.		16.57	16.56	0.17	0.18	N/A
MIN.		15.85	16.12	0.02	0.01	N/A
Average		16.30	16.36	0.09	0.09	N/A
Uniformity(≤1.5dB)		0.72	0.44	Directivity(dB)			≥55

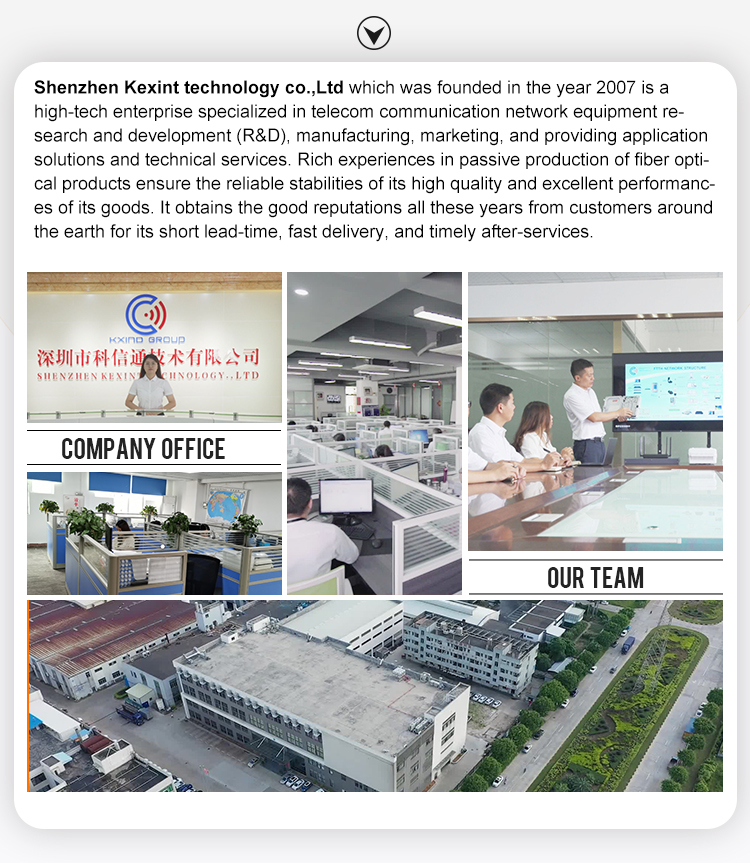

Company Profile
