A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, the terminal box,and ONU. FTTH drop cable patch cord are used for linking the equipment and components in the fiber optic network. This GJXFJPH drop cable is internal and external double sheath, has strong moisture and water resistance. And has UV resistance.The fiber is G657A1 or G652D, the material of jacket is LSZH, the cable can be laid by aerial or duct. we can provide 25m 50m 75m 100m 125m 150m length drop cable patch cord.
Detail Information | |||
| Name: | Fiber Optical Patch Cord | Length Of Cable: | 25m 50m 75m 100m 150m |
|---|---|---|---|
| Type Of Fiber: | 657A1 657A2 G652D | Mode Of Fiber: | SM |
| Insertion Loss: | 0.25db | Reture Loss: | 55 DB |
| Wenlenth: | 1310 1550 | Brand: | Outside Black Inside White |
| Material: | LSZH | Applications: | FTTH |
| High Light: | duplex fiber patch cord,fiber patch cables | ||
Product Construction:
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission
Test Equipment and CATV
Gigabit Ethernet
Cable type: GJXFH-1B6a2
Profile view:
Technology specification:
| Technology specification Item | Technology parameter |
| Cable type | GJXFJPH-1~4B6a2 |
| Tight buffer color | Blue, orange, green, brown |
| Tight buffer diameter mm | 0.85±0.05 |
| Fiber type | 9/125(G657A2) |
| Strength member | Aramid yarns |
| Jacket thickness mm | 0.80±0.10 |
| Internal sub-cable Jacket color | White |
| Cable outer sheath color | Black (PANTONE 136C, ΔE≤4) |
| Jacket material | LSZH |
| Internal sub-cable | 2.0(±0.1) |
| Cable diameter mm | 4.0 (±0.2) |
| Cable weight Kg/km | 15.0 |
| Min. bending radius mm | 10D |
| Attenuation dB/km | ≦ 0.4at 1310nm, ≦ 0.3 at 1550nm |
| Short tension N | 200 |
| Short crush N/100mm | 1000 |
| Operation temperature ℃ | -40~+70 |
| Installation temperature ℃ | -5~+60 |
| Transportation and storage temperature ℃ | -40~+70 |
Note: the product is accord with the instruction of EU RoHS.
Optical Cable Color:
| G652D/G657A | OM2 | OM3 | OM4 | Armored Cables |
| Black or White | Orange or Black | Aqua or Black | Magenta or Black | Blue or Black |
Connector Specification:
General Requirements
| Specification | Unit | SC, FC, LC | ST, MU, MT-RJ,SMA | MTP,MPO | E2000 | |||||
| Single-mode | Multimode | Single-mode | Multimode | Multimode | Single-mode | Single-mode | ||||
| UPC | APC | PC | UPC | PC | PC | APC | UPC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.7 | ≤0.75 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥50 | ≥60 | ≥30 | ≥50 | ≥30 | ≥25 | ≥45 | ≥55 | ≥75 |
| Wavelength | nm | 1310/1510 | 1310/1510 | 1310/1510 | 1310/1510 | |||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | |||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | |||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||
Special Designation:
| Type | Standard,Master |
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
| Fiber | Singlemode/Multimode |
| 50/125, 62.5/125 (Multimode) OM2&OM1 | |
| 50/125, 10G (Multimode) OM3 | |
| Cable | Simplex, Duplex |
| Φ3.0mm, Φ2.0mm, Φ0.9mm | |
| PVC or LSZH | |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
| ≤ 0.25dB (For Singlemode Standard) | |
| ≤ 0.25dB (For Multimode) | |
| Tested by JDS | |
| Return Loss (Singlemode) | UPC ≥ 50dB |
| SPC ≥ 55dB | |
| APC ≥ 60dB (typ.65dB) | |
| Tested by JDS | |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
| Geometry Requirement ( Singlemode) | Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) | |
| 10mm ≤ R ≤ 25mm (For Standard) | |
| Apex Offset ≤ 30 μm (For Master) | |
| Apex Offset ≤ 50 μm (For Standard) | |
| Undercut -50nm ≤ U ≤ 50nm | |
| Tested by DORC | |
| Geometry Requirement ( Singlemode) | Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) | |
| 10mm ≤ R ≤ 25mm (For Standard) | |
| Apex Offset ≤ 30 μm (For Master) | |
| Apex Offset ≤ 50 μm (For Standard) | |
| Undercut -50nm ≤ U ≤ 50nm | |
| Tested by DORC |

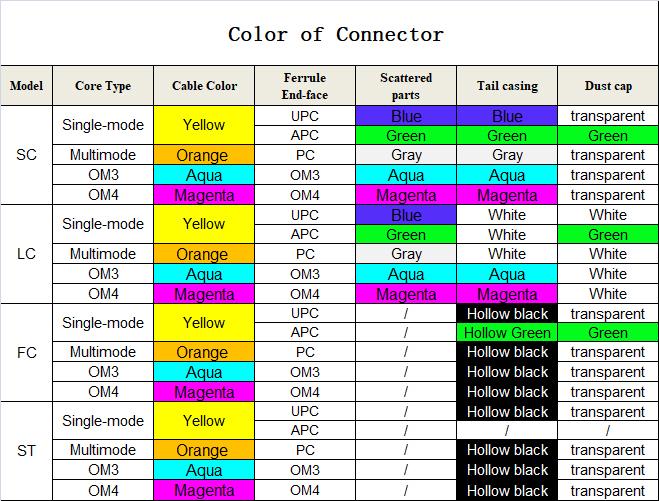

Color of connector:
Environmentally:
The product is accord with the instruction of EU ROHS
