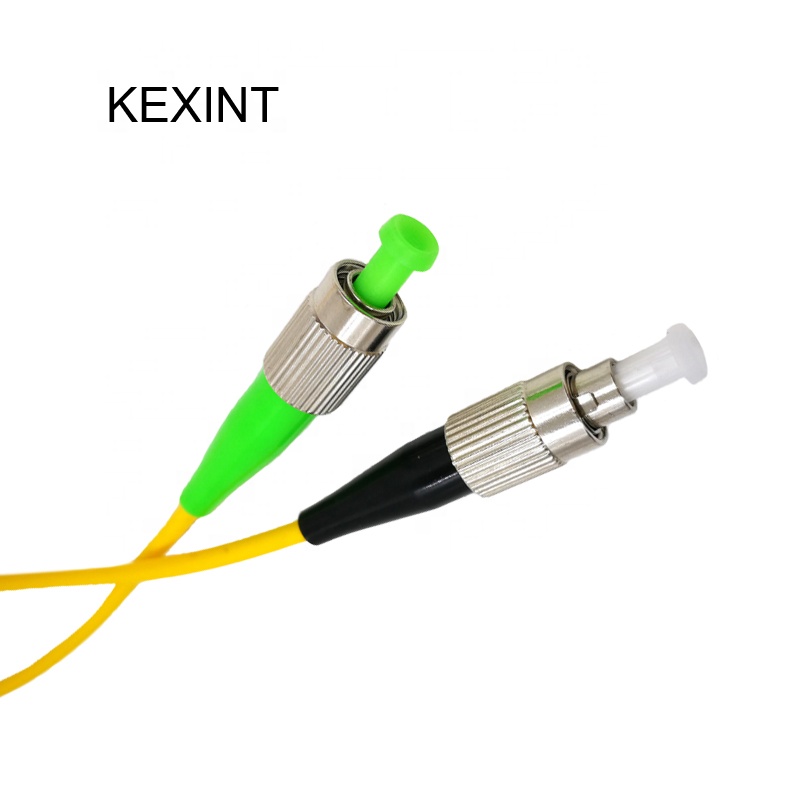

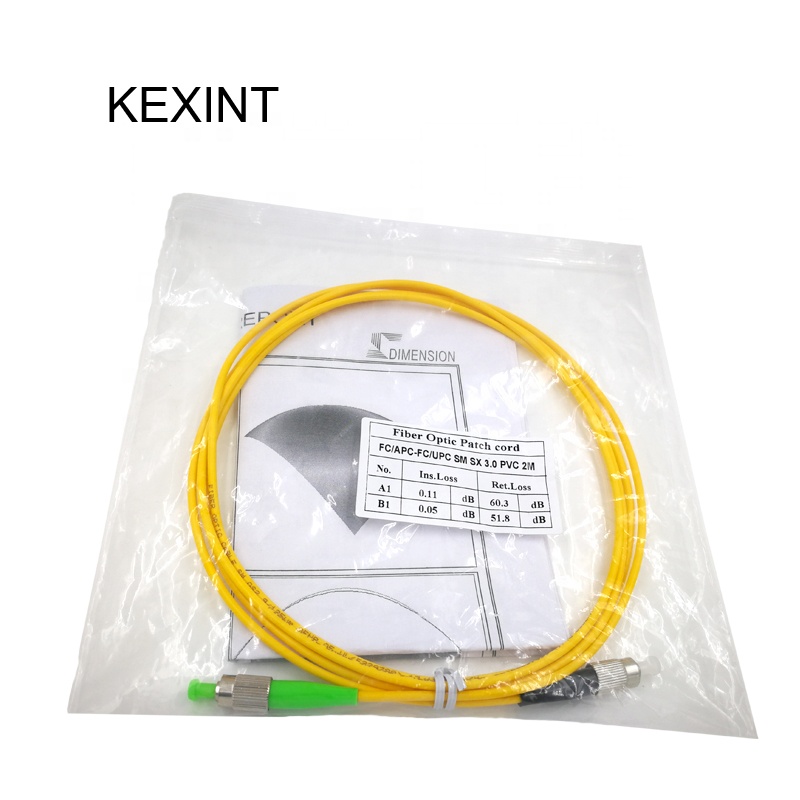

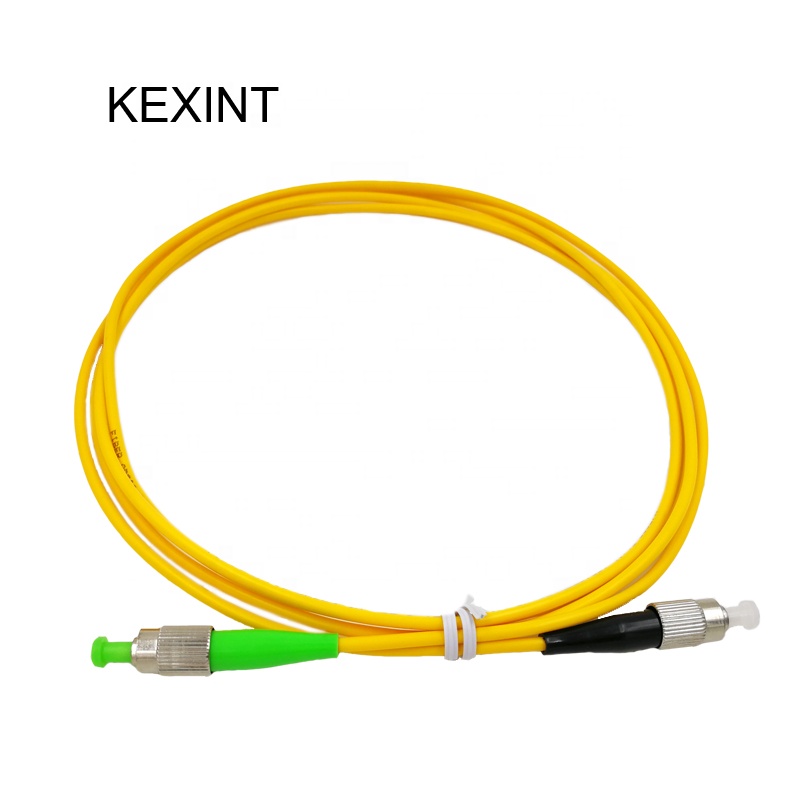

KEXINT - Simplex Customizable Meters 2.0 Or 3.0 mm FC/UPC-FC/APC Fiber Optic Patch Cord Fiber Optical Patchcord

Our engineers are skilled at utilizing technology.Due to the wide serviceability and strong functions,Simplex Customizable Meters 2.0 Or 3.0 mm FC/UPC-FC/APC Fiber Optic Patch Cord is commonly seen in the application scope(s) of Communication Cables now.

SEND INQUIRY NOW

shipping:: Sea freight

Customization:: Customized logo (Min. Order: 500 Pieces) , Customized packaging (Min. Order: 1000 Pieces) , Graphic customization (Min. Order: 1000 Pieces)

SEND INQUIRY NOW

Products Details

As expected,Shenzhen Kexint Technology Co., ltd. unveils a new product relying on our advanced technologies and industrious employees. It is Simplex Customizable Meters 2.0 Or 3.0 mm FC/UPC-FC/APC Fiber Optic Patch Cord and can be legally exported to foreign countries. Simplex Customizable Meters 2.0 Or 3.0 mm FC/UPC-FC/APC Fiber Optic Patch Cord has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. Shenzhen Kexint Technology Co., ltd. have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.

Model Number:	FC/UPC-FC/APC	Type:	Fiber Optical Patchcord
Place of Origin:	Guangdong, China	Brand Name:	KEXINT
Number of Conductors:	1	Fiber Type:	G657A1 or Customized
Outer sheath:	PVC, LSZH	Cable Diameter:	3.0mm,2.0mm
Operating temperature:	-40℃~85℃	Fiber length:	Customized
Insertion Loss(dB):	≤0.2	Return Loss:	PC≥45dB,UPC≥50dB,APC≥60dB
Certification:	CE/ROHS/ISO9001	Warranty Time:	1 year

Product Description

Optical fiber jumper means that both ends of the optical cable are equipped with connector plugs to realize the active connection of the optical path; one end with a plug is called a pigtail. Fiber optic jumpers are similar to coaxial cables, except that they do not have a mesh shield. In the center is the glass core through which light propagates. In a multimode fiber, the diameter of the core is 50μm~65μm, which is roughly equivalent to the thickness of a human hair. The diameter of the single-mode fiber core is 9 μm. The core is surrounded by a glass envelope with a lower refractive index than the core to keep the optical fiber in the core. On the outside is a thin plastic jacket to protect the envelope.

Key Features:
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: 1260-1650nm
6) Wide Operating Temperature: -40°C - 85°C
7) High Reliability and Stability

Application :
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems

Ordering Options:
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable Type: PVC, LSZH.

Parameter	Unit	Single mode
Insertion loss	dB	UPC	APC
Insertion loss	dB			≤0.2	≤0.2
Return loss	dB	≥50	≥60
Work wavelength	nm	1260-1650
interchangeability	dB	≤0.2	≤0.2
vibration frequency	dB	≤0.2	≤0.2
Working temperature	℃	-40~75
Storage temperature	℃	-40~85
Cable outer diameter	nm	3.0/2.0/0.9

Company Profile

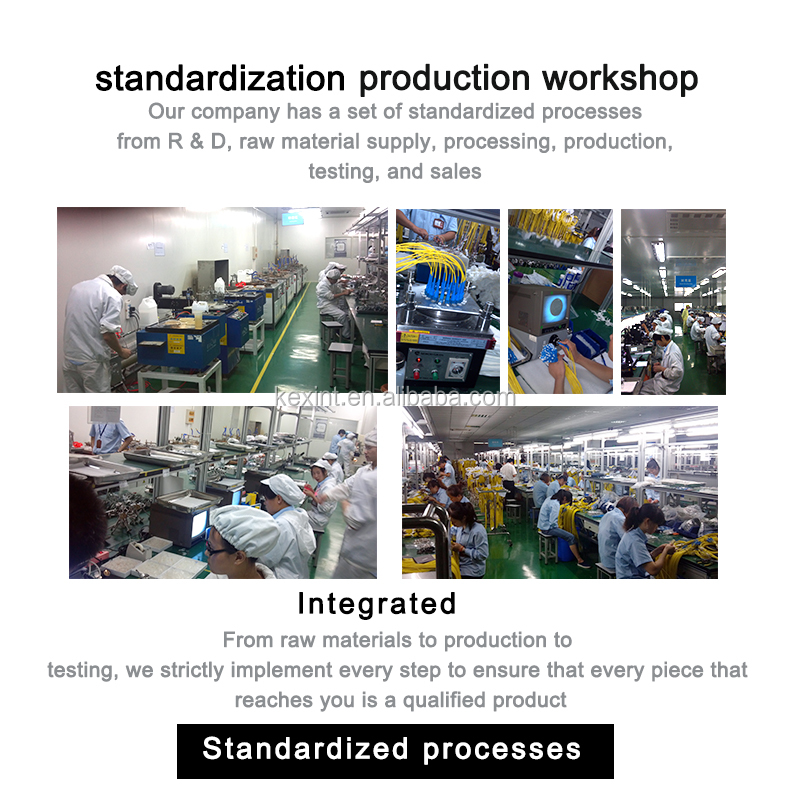

workshop

Our team

Exhibition

Certifications

Recommend Products

FAQ

Q1: Are you trading company or manufacturer ? A1: We are factory. Q2: How long is your delivery time? A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q3: Do you provide samples ? is it free or extra ? A3: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q4: What is your terms of payment ? A4: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Q5:Can I visit you？ A5:Sure,our factory is in Shenzhen ,China.Please contact us to make an appointment. Q6:Can I negotiate the prices? A6:Yes,we may consider discounts for multiple container load of mixed goods. Q7:How much will the shipping charges be? A7:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
