A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling
FTTH Drop cable patch cord are used for linking the equipment and components in the fiber optic network. This GJYXFCH drop cable is single core outdoor self-supporting cable, the fiber is G657A1 or G652D, the material of jacket is LSZH, the strengthen member is three phosphating steel wire or FRP strengthen, the cable can be laid by aerial or duct. This type of drop cable is single fiber, three phosphating steel wire or FRP strengthen, we can provide 20m 30m 50m 80m 100m 150m 200m 300m 500m length drop cable patch cord.
This type of drop cable is single fiber, three phosphating steel wire or FRP strengthen, we can provide 20m 30m 50m 80m 100m 150m 200m 300m 500m length drop cable patch cord, if you need more than 1km length drop cable, please contact us.
Detail Information | |||
| Name: | Fiber Optical Patch Cord | Length Of Cable: | 20m 30m 50m 75m 100m 150m |
| Type Of Fiber: | 657A1 657A2 G657B3 G652D | Mode Of Fiber: | SM OM1 OM2 OM3 OM4 |
| Insertion Loss: | 0.25db | Reture Loss: | 60 DB |
| Wenlenth: | 1310 1550 | Brand: | Black Or White |
| High Light: | duplex fiber patch cord,duplex fiber patch cord | ||
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission
Test Equipment and CATV
Gigabit Ethernet

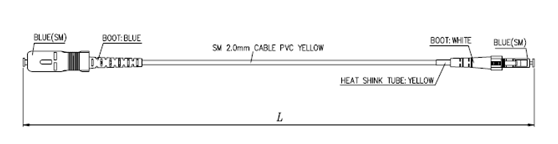

Cable type: GJYXFCH-1~4B6a2

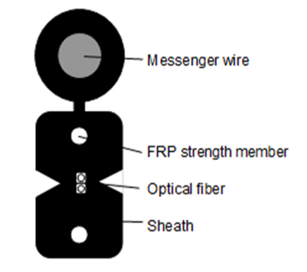

Profile view:
Technology specification:
| Item | Technology parameter |
| Cable specification | GJYXFCH-1~4B6a2 |
| Fiber color | Nature (or customize) |
| Fiber type | 9/125 (G657A2) |
| Sheath color | Black |
| Sheath material | LSZH |
| Coppered Steel wire diameter (mm) | 0.45 |
| Steel wire diameter (mm) | 1.0 |
| Cable dimension (mm) | 5.2(±0.1)*2.0(±0.1) |
| Cable weight (Kg/km) | 21 |
Min. bending radius (mm) (Along the cable flat direction) | 15(static) ;30(dynamic) |
| Attenuation (dB/km) | ≦0.4 at 1310nm, ≦0.3 at 1550nm |
Temperature Dependence Induced Attenuation (-40℃ to +60℃) (dB/km) | ≤0.04 |
| Short tension (N) | 600 |
| Short crush (N/100mm) | 2200 |
| Operation temperature (℃) | -40~+70 |
| Installation temperature (℃) | -5~+60 |
| Transportation and storage temperature (℃) | -40~+70 |
Note: the product is accord with the instruction of EU RoHS.
Optical Cable Color
| G652D/G657A | OM2 | OM3 | OM4 | Armored Cables |
| Black or White | Orange or Black | Aqua or Black | Magenta or Black | Blue or Black |
Connector Specification
General Requirements
| Specification | Unit | SC, FC, LC | ST, MU, MT-RJ,SMA | MTP,MPO | E2000 | |||||
| Single-mode | Multimode | Single-mode | Multimode | Multimode | Single-mode | Single-mode | ||||
| UPC | APC | PC | UPC | PC | PC | APC | UPC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.7 | ≤0.75 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥50 | ≥60 | ≥30 | ≥50 | ≥30 | ≥25 | ≥45 | ≥55 | ≥75 |
| Wavelength | nm | 1310/1510 | 1310/1510 | 1310/1510 | 1310/1510 | |||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | |||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | |||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||
Special Designation
| Type | Standard,Master |
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
| Fiber | Singlemode/Multimode |
| 50/125, 62.5/125 (Multimode) OM2&OM1 | |
| 50/125, 10G (Multimode) OM3 | |
| Cable | Simplex, Duplex |
| Φ3.0mm, Φ2.0mm, Φ0.9mm | |
| PVC or LSZH | |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
| ≤ 0.25dB (For Singlemode Standard) | |
| ≤ 0.25dB (For Multimode) | |
| Tested by JDS | |
| Return Loss (Singlemode) | UPC ≥ 50dB |
| SPC ≥ 55dB | |
| APC ≥ 60dB (typ.65dB) | |
| Tested by JDS | |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
| Geometry Requirement ( Singlemode) | Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) | |
| 10mm ≤ R ≤ 25mm (For Standard) | |
| Apex Offset ≤ 30 μm (For Master) | |
| Apex Offset ≤ 50 μm (For Standard) | |
| Undercut -50nm ≤ U ≤ 50nm | |
| Tested by DORC | |
| Geometry Requirement ( Singlemode) | Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) | |
| 10mm ≤ R ≤ 25mm (For Standard) | |
| Apex Offset ≤ 30 μm (For Master) | |
| Apex Offset ≤ 50 μm (For Standard) | |
| Undercut -50nm ≤ U ≤ 50nm | |
| Tested by DORC |

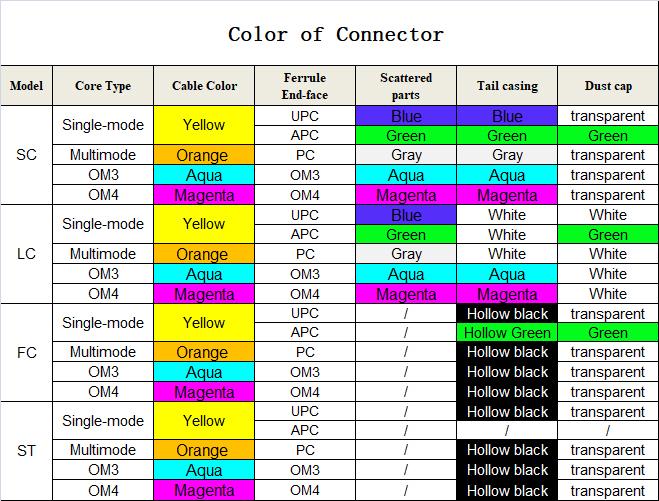

Color of connector:
