KEXINT - KXIND LC UPC simplex OS2 Single Mode Armored PVC OFNR 3.0mm Fiber Optic Patch Cable Fiber Optical Patchcord

Name: KEXINT - KXIND LC UPC simplex OS2 Single Mode Armored PVC OFNR 3.0mm Fiber Optic Patch Cable Fiber Optical Patchcord
Uploaded: 2022-03-29T22:27:10+08:00
Duration: 20 s
Description: Driven by business needs, we have been constantly optimizing and upgrading our technologies.These technologies contribute to our high-efficiency manufacturing process.In the application field(s) of Communication Cables, the fiber optic products,networking equipments,Communication system solutions,wireless transmission system,security monitoring system proves to be very useful.

Driven by business needs, we have been constantly optimizing and upgrading our technologies.These technologies contribute to our high-efficiency manufacturing process.In the application field(s) of Communication Cables, the fiber optic products,networking equipments,Communication system solutions,wireless transmission system,security monitoring system proves to be very useful.

SEND INQUIRY NOW

shipping:: Sea freight

Customization:: Customized logo (Min. Order: 100 Pieces) , Customized packaging (Min. Order: 100 Pieces) , Graphic customization (Min. Order: 100 Pieces)

Length:: 3meters

2.0mm or 3.0mm

SEND INQUIRY NOW

Products Details

Our heavy investment in the product R&D has finally paid off. Shenzhen Kexint Technology Co., ltd. has successfully rolled out a new product series, namely KXIND LC UPC simplex OS2 Single Mode Armored PVC OFNR 3.0mm Fiber Optic Patch Cable. It is totally unique in several aspects including its appearance, features, and applications. Compared with other similar Guangdong, China products in the market, fiber optic products,networking equipments,Communication system solutions,wireless transmission system,security monitoring system it can be very stable and long-lasting when applied in the field(s) of Communication Cables. Shenzhen Kexint Technology Co., ltd. has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.

Model Number:	Armored fiber optical patch cord	Place of Origin:	Guangdong, China
Brand Name:	KEXINT	Number of Conductors:	≥ 10
Short Term Tensile Strength:	400N	Operating Temperature:	-25°C To +70°C
Type of connector:	LC/UPC SC APC SC UPC	Fiber Type:	G657A2
Application:	FTTH FTTB FTTX Network	Wavelength:	1310nm/1490nm/1550nm
Short Term Crush Resistance:	5000N/100mm	Color of Cable:	Blue
Material:	LSZH, PVC	Cable Diameter:	3.0mm

Products Description

Application :
1; Telecommunication networks;
2; Local area networks; CATV;
3; Active device termination;
4; Data center system networks;

Features :
1; Comply with IEC, Telcordia-GR-326-Core standards;
2; Different size & color boot option;
3; Low insertion loss; High return loss;
4; 100% interferometer measurement;

Technology specification:

Technology specification Item	Technology parameter
Cable type	GJXFJPK-1~4B6a2
Tight buffer color	Blue, orange, green, brown
Tight buffer diameter mm	0.85±0.05
Fiber type	9/125(G657A2)
Strength member	Aramid yarns
Jacket thickness mm	0.80±0.10
Internal sub-cable Jacket color	White
Cable outer sheath color	Black (PANTONE 136C, ΔE 4)
Jacket material	LSZH SOS Armoured
Internal sub-cable	0.9(±0.1)
Cable diameter mm	3.0 (±0.2)
Cable weight Kg/km	15.0
Min. bending radius mm	10D
Attenuation dB/km	0.4at 1310nm, 0.3 at 1550nm
Short tension N	200
Short crush N/100mm	1000
Operation temperature ℃	-40~+70
Installation temperature ℃	-5~+60
Transportation and storage temperature ℃	-40~+70

Company Profile

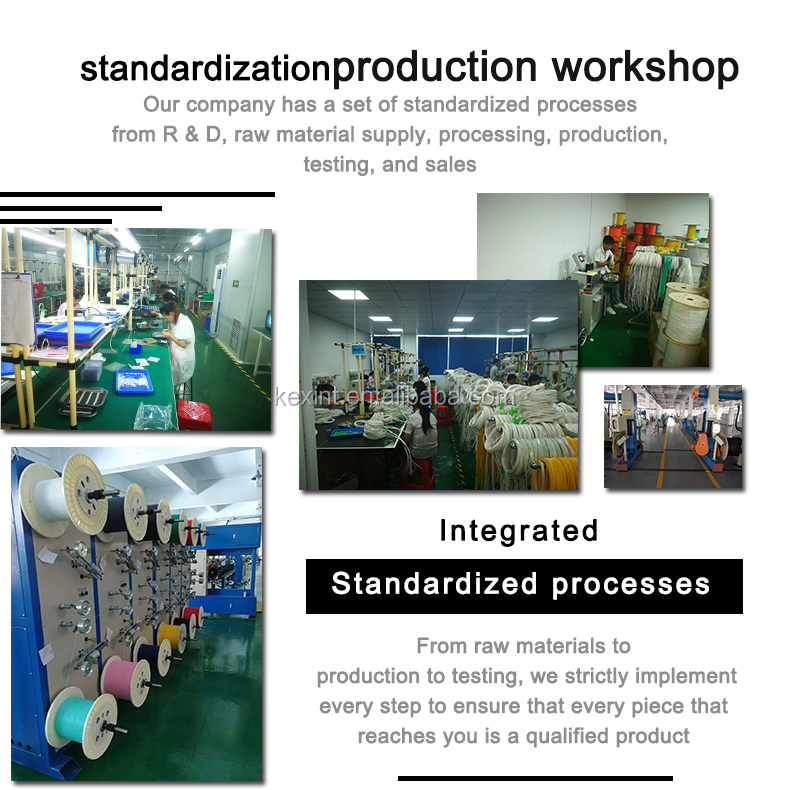

work shop

Our team

Certifications

Recommend Products

FAQ

Q1: Are you trading company or manufacturer ? A1: We are factory. Q2: How long is your delivery time? A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q3: Do you provide samples ? is it free or extra ? A3: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q4: What is your terms of payment ? A4: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Q5:Can I visit you？ A5:Sure,our factory is in Shenzhen ,China.Pliease contact us to make an appointment. Q6:Can I negotiate the prices? A6:Yes,we may consider discounts for multiple container load of mixed goods. Q7:How much will the shipping charges be? A7:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested. If you have another question, pls feel free to contact us as below:
