Detail Information

Armor:Steel TapeFiber Count:72
Package:Wooden DrumSheath Color:Black PE
Application:Outdoor Aerial ApplicationLength Per Roll:2km
Fiber Brand:Corning/YOFC/FIBERHOMEFiber:G652D
High Light:

armored fiber cable

,

armoured fiber cable



GYTS-72B1.3

Cable design

  • 12 SM-fibers (max.) placed in each tube.

  • Steel wire as central strength member.

  • Loose buffer tubes SZ-stranded.

  • The buffered tube filled with filling compound while the stranded core covered with water block material

  • Corrugated steel tape armored for rodent attack.

  • HDPE Cable Outer sheath.

  • Suitable as: Duct Installation.
    Reference Standard

IEC 60793-1, 60793-2, 60794-1

ITU-T G650, G652
Optical and mechanical characteristics of fiber

MFD(1310nm)9.2mm±0.4mm
MFD(1550nm)10.4mm±0.8mm
Cladding diameter125mm±1.0mm
Fiber diameter250 ± 15 mm (Colored)
Core/cladding concentricity error£0.6mm
MFD concentricity error£0.8mm
Cladding non circularity£1.0%
Cut off wavelength£1260nm
Attenuation coefficient1310nm: £0.35dB/km
1550nm: £0.21dB/km
Bending-loss performance of optical fiber£0.05dB
Polarization mode dispersion£0.1ps/Ökm
Zero-dispersion wavelength1300 – 1324 nm
Zero-dispersion slope£0.092ps/(nm2•km)

Mechanical requirements and methods of fiber cable

Tensile strength1500N, conform to IEC 60794-1-E1 while fiber strain is ≤0.33%
Crush1000N/100mm, conform to IEC 60794-1-E3
Impactconform to IEC 60794-1-E4
Repeated bendingconform to IEC 60794-1-E6
Torsionconform to IEC 60794-1-E7
Flexingconform to IEC 60794-1-E8
Kinkconform to IEC 60794-1-E10
Cable bendconform to IEC 60794-1-E11
Temperature cycling testconform to IEC 60794-1-F1
Water penetrationconform to IEC 60794-1-F5B
Spark test voltageSpark test voltage of cable outer jacket will be no less than 8kV AC

Fiber color coding and Tube color coding

Color code123456
BlueOrangeGreenBrownSlateWhite
789101112
RedBlackYellowVioletRoseAqua

Structure

GYTS 72B1.3 Outdoor Fiber Optic Armoured Cable G652D 36B1.3 G652D Overhead / Pipeline PE 0







Mechanical specification

ItemsDescriptions
Optical fiberCategoryG.652D
Counts72
Optical fibers per tubeCountsMax. 12
Central strength memberMaterialSteel wire
Diameter(mm)1.55
PE cushion(mm)1.55
Loose tubeMaterialPBT
Diameter(mm)2.0
Counts6
Filler rodCounts0
ColorNature
ArmorMaterialCorrugated steel tape
Outer sheathMaterialHDPE
ColorBlack
Thickness (mm)Nominal 1.7
Cable diameter (mm) ±0.512.7
Cable weight (kg/km) ±10%131
Tensile strengthShort term(N)1500
Long term(N)600
CrushShort term(N/10cm)1000
Long term(N/10cm)300
Applicable temperature rangeOperation- 40℃ ~ +70℃
Installation- 20℃ ~ +60℃
Storage & shipping- 40℃ ~ +70℃
Bending Radiusunloaded10 times of outer diameter
loaded20 times of outer diameter

Environmentally

The product is accord with the instruction of ISO 14001 and EU RoHS6.

Packing and Logo

Packing

Each single length of cable shall be wound on a wooden composite drum.

Covered by plastic buffer sheet.

Sealed by strong wooden battens.

Drum length

Standard drum length is 3000m;

Total quantity is at least the ordered quantity.

Or it can be delivered according to customers’ requirements, but not longer than 5000m.

Drum Marking

  • Manufacturer name;

  • Manufacturing year and month;

  • Roll-direction arrow;

  • Cable outer end position indicating arrow;

  • Cable type and size;

  • Drum number;

  • Drum length;

  • Gross / net weight;

  • Caution plate indicating the correct method for loading, unloading and convey the cable;

  • Other customer information such as contract no., project no., and delivery destination. (if needed)

Cable identification documents

  • Product qualified certificate;

  • Test report.

  • Accurate volume and weight information.

Service description

The service life of cable shall not less than 25 years.

The warranty period of cable is guaranteed for 24months after the date of cable is received by destination. If quality of cable happened, delivery and pick-up charges are at the manufacturer’s expense for all repairs made under the warranty.





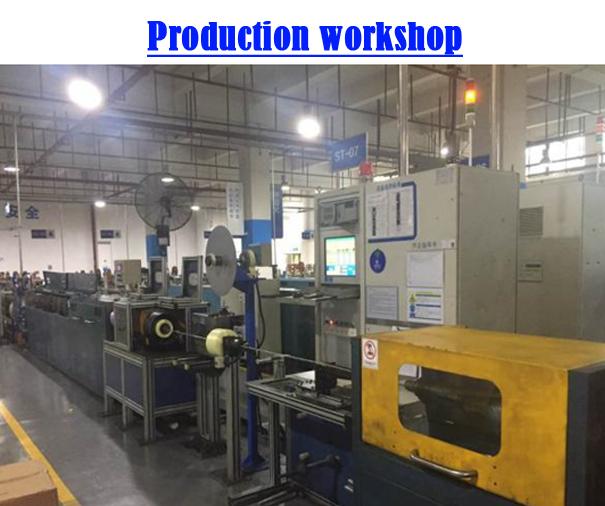

GYTS 72B1.3 Outdoor Fiber Optic Armoured Cable G652D 36B1.3 G652D Overhead / Pipeline PE 1


Package and Shipping:

1. All of our fiber optic cable package are with export wooden drum.

2. 2~3km/drum, Outdoor fiber optic cable's wooden dimension is 110cm*110cm*71cm, 0.85CBM,

3. Can be load about 39 drums for a 20GP.

Also accept custom cable drum from customers. welcome to contact us!
