Shenzhen Kexint Technology Co., ltd. is always dedicated to the research and development, production and sale of KEXINT GYTS 72B1.3 Outdoor Fiber Optic Armoured Cable G652D 36B1.3 G652D Overhead and Pipeline PE. We manufacture it in a variety of color and styles. Shenzhen Kexint Technology Co., ltd. adhere to the corporate philosophy of 'people orientation' and always advocate honesty, innovation, and fairness. We hope to occupy an important position in the industry and become one of the most leading brands in the future.

Model Number:FRP strength member cableType:Fiber Optical cable
Place of Origin:Guangdong, ChinaBrand Name:Kexint
Number of Conductors:≥ 10Out Sheath:HDPE / LSZH
Fiber Count:1/2/4/6/8/12/24Fiber Type:G652D,G657A1,G657A2,OM1,OM2,OM3,OM4
Sheath Color:BlackApplication:FTTH FTTB FTTX Network
Outer Jacket:HDPEReinforcement:Iron OR KFRP OR FRP
Package:Wooden DrumType of Optical:Power Optical Cable
Certification:FCC, RoHS, ce

Product Description

GYTS 72B1.3 Outdoor Fiber Optic Armoured Cable G652D 36B1.3 G652D Overhead and Pipeline PE



GYTS-72B1.3

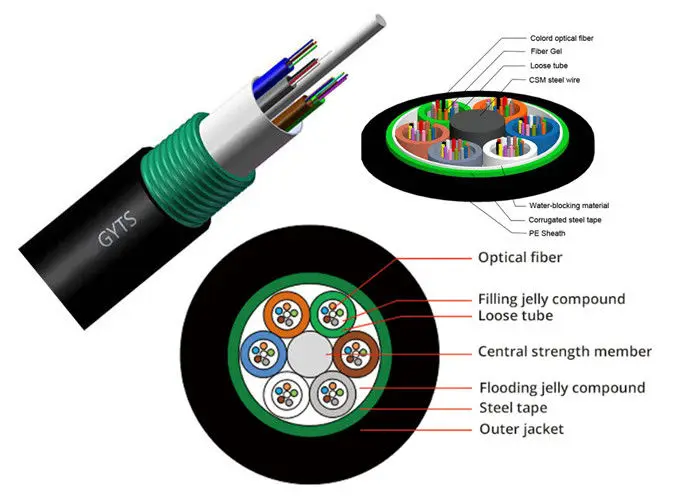

Cable design

  • 12 SM-fibers (max.) placed in each tube.
  • Steel wire as central strength member.
  • Loose buffer tubes SZ-stranded.
  • The buffered tube filled with filling compound while the stranded core covered with water block material
  • Corrugated steel tape armored for rodent attack.
  • HDPE Cable Outer sheath.
  • Suitable as: Duct Installation.



1 Reference Standard

IEC 60793-1, 60793-2, 60794-1

ITU-T G650, G652



2 Optical and mechanical characteristics of fiber

MFD(1310nm)9.2mm±0.4mm
MFD(1550nm)10.4mm±0.8mm
Cladding diameter125mm±1.0mm
Fiber diameter250 ± 15 mm (Colored)
Core/cladding concentricity error£0.6mm
MFD concentricity error£0.8mm
Cladding non circularity£1.0%
Cut off wavelength£1260nm
Attenuation coefficient1310nm: £0.35dB/km
1550nm: £0.21dB/km
Bending-loss performance of optical fiber£0.05dB
Polarization mode dispersion£0.1ps/Ökm
Zero-dispersion wavelength1300 – 1324 nm
Zero-dispersion slope£0.092ps/(nm2•km)

3 Mechanical requirements and methods of fiber cable

Tensile strength1500N, conform to IEC 60794-1-E1 while fiber strain is ≤0.33%
Crush1000N/100mm, conform to IEC 60794-1-E3
Impactconform to IEC 60794-1-E4
Repeated bendingconform to IEC 60794-1-E6
Torsionconform to IEC 60794-1-E7
Flexingconform to IEC 60794-1-E8
Kinkconform to IEC 60794-1-E10
Cable bendconform to IEC 60794-1-E11
Temperature cycling testconform to IEC 60794-1-F1
Water penetrationconform to IEC 60794-1-F5B
Spark test voltageSpark test voltage of cable outer jacket will be no less than 8kV AC

4 Fiber color coding and Tube color coding

Color code123456
BlueOrangeGreenBrownSlateWhite
789101112
RedBlackYellowVioletRoseAqua

Our Company
work shop
Our team
Certifications
Related Products

(1) GYTA Cable

(2) GYXTW CABLE

(3)ADSS Cable

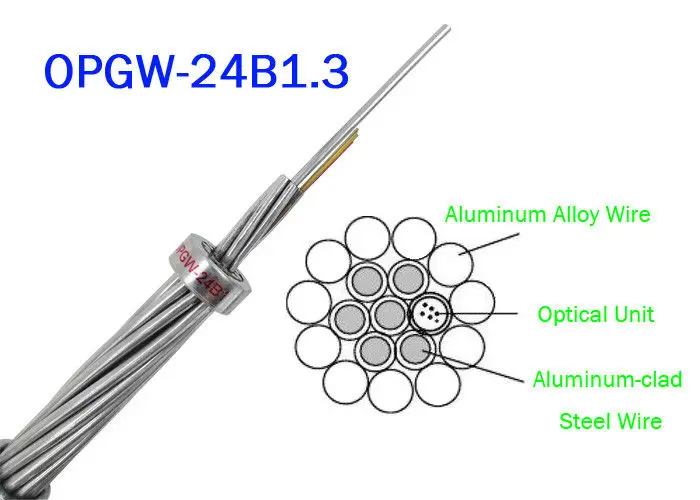

OPGW fiber Optical cable

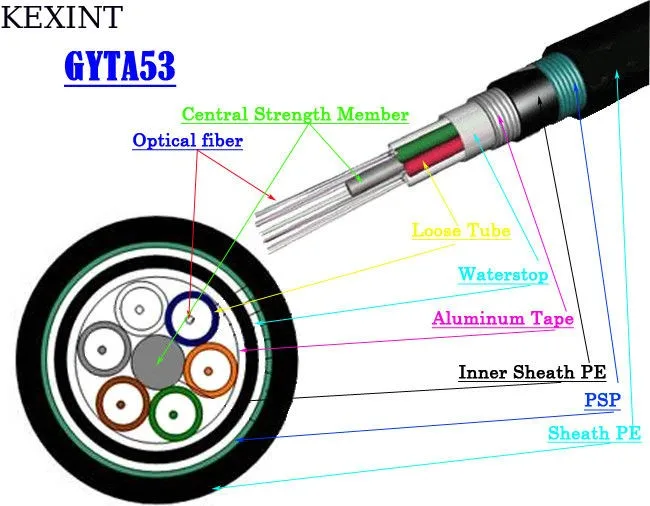

GYTA53 Fiber Optical cable

Armored optical cableArmored optical cable

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
