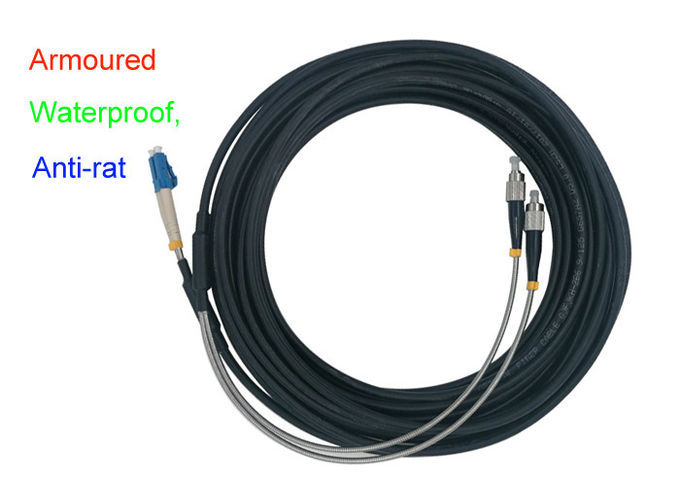

Waterproof Armoured Duplex Fiber Optical Indoor 5.0 Patch Cord Anti-rat Blue SOS DX LC FC 20M.Waterproof fiber optic cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.
Detail Information | |||
| Name: | Armored Fiber Optical Patchcord | Model Number: | Waterproof Optic Cable 9/125 LC-FC DX |
|---|---|---|---|
| Type Of Connector: | LC/UPC-FC/UPC | Color Of Cable: | BLACK |
| Wavelength: | 1310 1550 | Material: | LSZH, PVC.PE |
| Fiber Type: | G652D,G657A | Cable Diameter: | 5.0mm |
| High Light: | duplex fiber patch cord,fiber patch cables | ||
Application :
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission
Test Equipment and CATV
Gigabit Ethernet
Features :
1.Comply with IEC, Telcordia-GR-326-Core standards;
2.Different size & color boot option;
3.Low insertion loss; High return loss;
4.100% interferometer measurement;
Technology specification:
| Technology specification Item | Technology parameter |
| Cable type | GJXFJPK-1~4B6a2 |
| Tight buffer color | Blue, orange, green, brown |
| Tight buffer diameter mm | 0.85±0.05 |
| Fiber type | 9/125(G657A2) |
| Strength member | Aramid yarns |
| Jacket thickness mm | 0.80±0.10 |
| Internal sub-cable Jacket color | White |
| Cable outer sheath color | Black (PANTONE 136C, ΔE≤4) |
| Jacket material | LSZH SOS Armoured |
| Internal sub-cable | 0.9(±0.1) |
| Cable diameter mm | 5.0 (±0.2) |
| Cable weight Kg/km | 15.0 |
| Min. bending radius mm | 10D |
| Attenuation dB/km | ≦ 0.4at 1310nm, ≦ 0.3 at 1550nm |
| Short tension N | 200 |
| Short crush N/100mm | 1000 |
| Operation temperature ℃ | -40~+70 |
| Installation temperature ℃ | -5~+60 |
| Transportation and storage temperature ℃ | -40~+70 |
