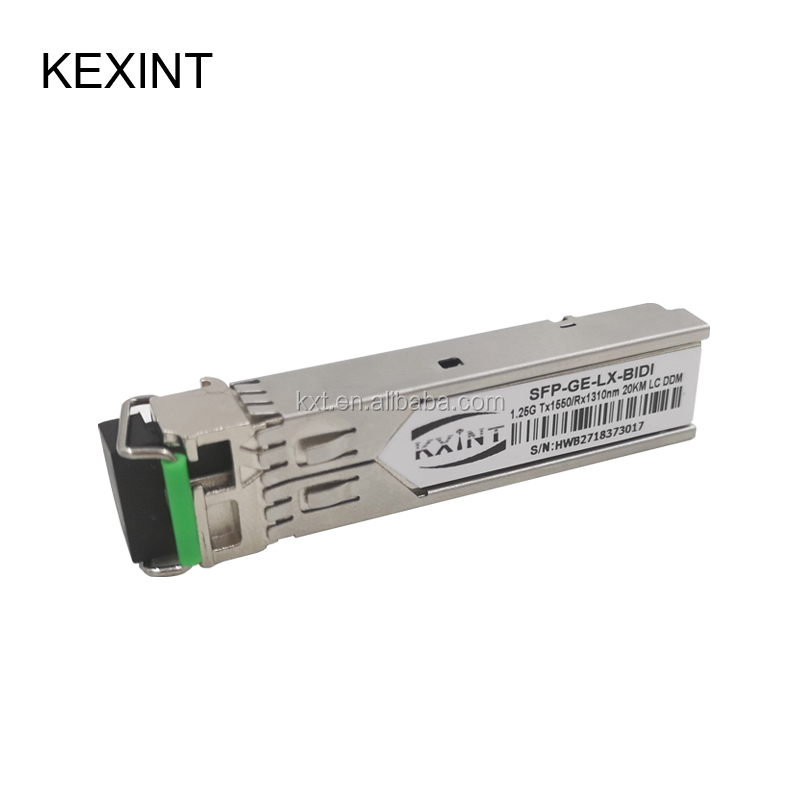

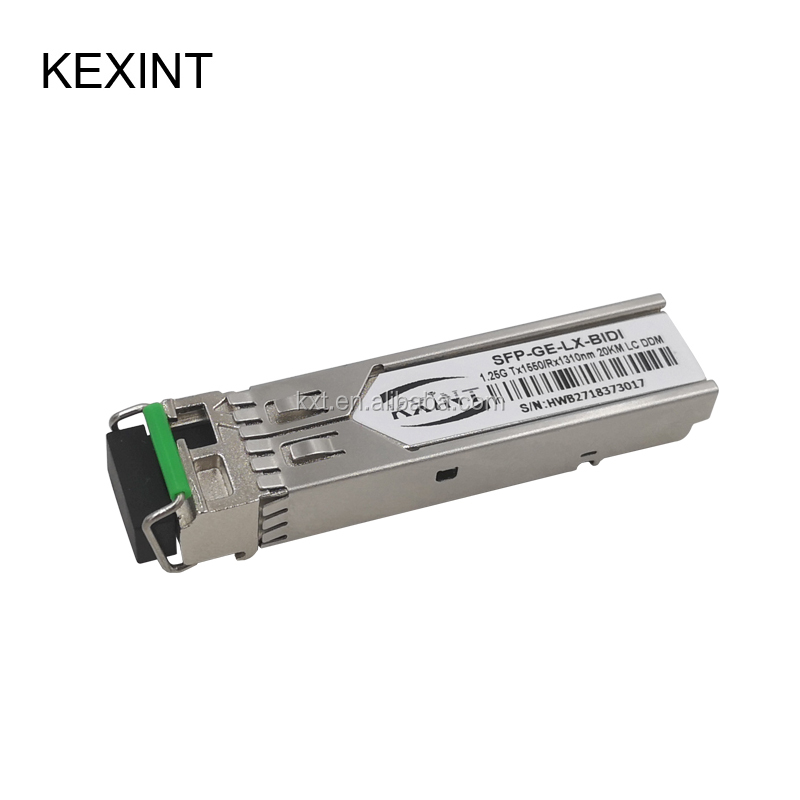

KEXINT - 1.25 Gigabit Fiber optic SFP module LC connector 20km T1550 R1310nm SFP module

KEXINT - 1.25 Gigabit Fiber optic SFP module LC connector 20km T1550 R1310nm SFP module

Once 1.25 Gigabit Fiber optic SFP module LC connector 20km T1550 R1310nm was launched, it was well received by users and the market feedback was excellent, which really solved the pain points of users.

SEND INQUIRY NOW

shipping:: Sea freight

Customization:: Customized logo (Min. Order: 500 Pieces) , Customized packaging (Min. Order: 1000 Pieces) , Graphic customization (Min. Order: 500 Pieces)

SEND INQUIRY NOW

Products Details

Buy top of the line quality of 1.25 Gigabit Fiber optic SFP module LC connector 20km T1550 R1310nm at low prices from some of the best manufacturers of the products. The key to 1.25 Gigabit Fiber optic SFP module LC connector 20km T1550 R1310nm competitiveness is innovation. Shenzhen Kexint Technology Co., ltd. will keep pace with the tide and focus on improving technologies, thereby creating and manufacturing products that better suit the needs of customers. We aim to lead the market trends one day.

Type:	SFP module	Model Number:	SFP
Place of Origin:	Guangdong, China	Brand Name:	kexint
Application:	FTTH FTTX FTTB Network	Data Rate:	SC/APC
Wavelength:	1310nm/1550nm	Connector:	LC
Distance:	20KM	Warranty:	3 Year

Products Description

PRODUCT DESCRIPTION:

Kexint BIDI-1.25G-1310/1550nm-10km-LC-DDM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser (the 1550nm DFB laser) and the PIN photo-detector. The module data link up to 20KM in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Specification of Transmitter:

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Average Output Power	POUT	-9		-3	dBm	Note (1)
Extinction Ratio	ER	9			dB
Center Wavelength	λC	1290	1310	1330	nm	XYT-SFP-BX-U
Center Wavelength	λC	1530	1550	1570	nm	XYT-SFP-BX-D
Spectrum Width (RMS)	σ			3.5	nm	FP Laser
Spectrum Width (RMS)	σ			3.5	nm	(TX:1310nm)
Side Mode Suppression Ratio	SMSR	30			dB	DFB Laser
Spectrum Bandwidth(-20dB)	σ			1	nm	(TX:1550nm)
Transmitter OFF Output Power	POff			-45	dBm
Differential Line Input Impedance	RIN	90	100	110	Ohm
Output Eye Mask	Compliant with IEEE802.3 z (class 1 laser safety)					Note (2)

Specification of Receiver:

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Input Optical Wavelength	λIN	1530	1550	1570	nm	XYT-SFP-BX-U
Input Optical Wavelength	λIN	1290	1310	1330	nm	XYT-SFP-BX-D
Receiver Sensitivity	PIN			-20	dBm	Note (1)
Input Saturation Power (Overload)	PSAT	-3			dBm
Los Of Signal Assert	PA	-35			dBm
Los Of Signal De-assert	PD			-22	dBm	Note (2)
LOS Hysteresis	PA-PD	0.5	2	6	dB

Product Features:

1) Single LC or SC receptacle optical interface compliant

2) Hot-pluggable SFP footprint

3) 1310nm FP laser transmitter; 1550nm DFB laser transmitter

4) RoHS compliant and Lead Free

5) Up to 3km on 9/125um SMF

6) Metal enclosure for lower EMI

7) Single 3.3V power supply

8) Low power dissipation <600mW

9) Commercial operating temperature range: 0 to 70

10) Digital Diagnostic Monitoring optional

Applications:
Gigabit Ethernet
Fiber Channel
WDM Application

General :

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

kEXINT SFP FORM:

Name	Model	Encapsulation	Frequency	Wavelength	Distance	Media	Connector	DDM	Temperature
QSFP28 100G	KXTQP28-100G-SR4	QSFP28	103G	850nm	100m	MMF	MPO	YES	0℃~70℃
	KXTQP28-100G-LR4	QSFP28	103G	1295.56/1300.05/ 1304.58/1309.14nm	10km	SMF	LC	YES	0℃~70℃
	KXTQP28-100G-CLR4 CWDM4	QSFP28	103G	1271/1291/ 1311/1331nm	2km	SMF	LC	YES	0℃~70℃
	KXTQP28-100G-PSM4	QSFP28	103G	1310nm	500m	SMF	MPO	YES	0℃~70℃
	KXTQP28-100G-LR4-A	QSFP28	103/112G	1295.56/1300.05/ 1304.58/1309.14nm	10km	DML SMF	LC	YES	0℃~70℃
	KXTQP28-100G-LR4-B	QSFP28	103/112G	1295.56/1300.05/ 1304.58/1309.14nm	10km	EML SMF	LC	YES	0℃~70℃
CFP4 100G	KXTCP4-100G-SR10	CFP4	103G	850nm	100m	MMF	MPO	YES	0℃~70℃
CFP4 100G	KXTCP4-100G-LR4	CFP4	103G	1295.56/1300.05/ 1304.58/1309.14nm	10km	SMF	LC	YES	0℃~70℃
CFP2 100G	KXTCP2-100G-SR10	CFP2	103G	850nm	100m	MMF	MPO	YES	0℃~70℃
	KXTCP2-100G-LR4	CFP2	103G	1295.56/1300.05/ 1304.58/1309.14nm	10km	SMF	LC	YES	0℃~70℃
	KXTCP2-100G-ER4	CFP2	103G	1295.56/1300.05/ 1304.58/1309.14nm	40km	SMF	LC	YES	0℃~70℃
CFP 100G	KXTCP-100G-SR10	CFP	103G	850nm	100m	MMF	MPO	YES	0℃~70℃
	KXTCP-100G-LR4	CFP	103G	1295.56/1300.05/ 1304.58/1309.14nm	10km	SMF	LC	YES	0℃~70℃
	KXTCP-100G-ER4	CFP	103G	1295.56/1300.05/ 1304.58/1309.14nm	40km	SMF	LC	YES	0℃~70℃
QSFP+ 40G	KXTQP-40G-SR4	QSFP+	40G	850nm	100m	MMF	MPO	YES	0℃~70℃
	KXTQP-40G-SR-BD	QSFP+	40G	850/900nm	100m	MMF	LC	YES	0℃~70℃
	KXTQP-40G-LR4	QSFP+	40G	1295.56/1300.05/ 1304.58/1309.14nm	10km	SMF	LC	YES	0℃~70℃
	KXTQP-40G-ER4	QSFP+	40G	1295.56/1300.05/ 1304.58/1309.14nm	30km	SMF	LC	YES	0℃~70℃
	KXTQP-40G-ER4	QSFP+	40G	1295.56/1300.05/ 1304.58/1309.14nm	40km	SMF	LC	YES	0℃~70℃
QSFP 25G	KXTQP-25G-SR4	SFP28	25G	850nm	100m	MMF	LC	YES	0℃~70℃
	KXTQP-25G-LR4	SFP28	25G	1295.56/1300.05/ 1304.58/1309.14nm	10km	SMF	LC	YES	0℃~70℃
	KXTQP-25G-LR4	SFP28	25G	1295.56/1300.05/ 1304.58/1309.14nm	10km	SMF	LC	YES	"-40℃~85℃
10G SFP+ MM	KXTPP-10G-SR	SFP+	10G	850nm	300m	MMF	LC	YES	0℃~70℃
10G SFP+ MM	KXTPP-10G-LRM	SFP+	10G	1310nm	220m	MMF	LC	YES	0℃~70℃
10G SFP+ SM	KXTPP-10G-LR	SFP+	10G	1310nm	10km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-ER-13	SFP+	10G	1310nm	40km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-ER	SFP+	10G	1550nm	40km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-ZR	SFP+	10G	1550nm	80km	SMF	LC	YES	0℃~70℃
10G SFP+ CWDM	KXTPP-10G-C**-40	SFP+	10G	1270~1450nm	40km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-C**-40	SFP+	10G	1470~1610nm	40km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-C**-80	SFP+	10G	1470~1610nm	80km	SMF	LC	YES	0℃~70℃
10G SFP+ DWDM	KXTPP-10G-D**-40	SFP+	10G	C20~C59	40km	SMF	LC	YES	0℃~70℃
10G SFP+ DWDM	KXTPP-10G-D**-80	SFP+	10G	C20~C59	80km	SMF	LC	YES	0℃~70℃
10G SFP+ BiDi	KXTPP-10G-B10-23	SFP+	10G	T1270/R1330nm	10km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-B10-32	SFP+	10G	T1330/R1270nm	10km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-B40-23	SFP+	10G	T1270/R1330nm	40km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-B40-32	SFP+	10G	T1330/R1270nm	40km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-B60-23	SFP+	10G	T1270/R1330nm	60km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-B60-32	SFP+	10G	T1330/R1270nm	60km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-B80-45	SFP+	10G	T1490/R1550nm	80km	SMF	LC	YES	0℃~70℃
	KXTPP-10G-B80-54	SFP+	10G	T1550/R1490nm	80km	SMF	LC	YES	0℃~70℃
10G XFP MM	KXTXP-10G-SR	XFP	10G	850nm	300m	MMF	LC	YES	0℃~70℃
10G XFP MM	KXTXP-10G-LRM	XFP	10G	1310nm	220m	MMF	LC	YES	0℃~70℃
10G XFP SM	KXTXP-10G-LR	XFP	10G	1310nm	10km	SMF	LC	YES	0℃~70℃
	KXTXP-10G-ER-13	XFP	10G	1310nm	40km	SMF	LC	YES	0℃~70℃
	KXTXP-10G-ER	XFP	10G	1550nm	40km	SMF	LC	YES	0℃~70℃
	KXTXP-10G-ZR	XFP	10G	1550nm	80km	SMF	LC	YES	0℃~70℃
10G XFP CWDM	KXTXP-10G-C**-40	XFP	10G	1270~1450nm	40km	SMF	LC	YES	0℃~70℃
	KXTXP-10G-C**-40	XFP	10G	1470~1610nm	40km	SMF	LC	YES	0℃~70℃
	KXTXP-10G-C**-80	XFP	10G	1470~1610nm	80km	SMF	LC	YES	0℃~70℃
10G XFP DWDM	KXTXP-10G-D**-40	XFP	10G	C20~C59	40km	SMF	LC	YES	0℃~70℃
	KXTXP-10G-D**-80	XFP	10G	C20~C59	80km	SMF	LC	YES	0℃~70℃
	KXTXP-10G-DT-80	XFP	10G	Tunable	80km	SMF	LC	YES	0℃~70℃
X2 TO SFP+	X2 to SFP+ Converter	-	10G					No	0℃~70℃

1.25G Electric port	KXTFP-GE-T	SFP	1000M		100m	UTP	RJ45	NO	0℃~70℃
1.25G Electric port	KXTFP-GE-TA	SFP	10/100/1000M		100m	UTP	RJ45	NO	0℃~70℃
1.25G MM	KXTFP-GE-SX	SFP	1.25G	850nm	550m	MMF	LC	YES	0℃~70℃
1.25G SFP SM	KXTFP-GE-LX	SFP	1.25G	1310nm	20km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-EX	SFP	1.25G	1310nm	40km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-EX-15	SFP	1.25G	1550nm	40km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-ZX	SFP	1.25G	1550nm	80km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-EZX	SFP	1.25G	1550nm	120km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-150	SFP	1.25G	1550nm	150km	SMF	LC	YES	0℃~70℃
1.25G SFP CWDM	KXTFP-GE-C**-40	SFP	1.25G	1270~1610nm	40km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-C**-80	SFP	1.25G	1270~1610nm	80km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-C**-100	SFP	1.25G	1270~1610nm	100km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-C**-120	SFP	1.25G	1270~1610nm	120km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-C**-150	SFP	1.25G	1270~1610nm	150km	SMF	LC	YES	0℃~70℃
1.25G SFP DWDM	KXTFP-GE-D**-40	SFP	1.25G	C20~C59	40km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-D**-80	SFP	1.25G	C20~C59	80km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-D**-100	SFP	1.25G	C20~C59	100km	SMF	LC	YES	0℃~70℃
	KXTFP-GE-D**-120	SFP	1.25G	C20~C59	120km	SMF	LC	YES	0℃~70℃
1.25G SFP BiDi	KXTFP-GE-B20-35	SFP	1.25G	T1310/R1550nm	20km	SMF	LC	YES	0℃~70℃
1.25G SFP BiDi	KXTFP-GE-B20-53	SFP	1.25G	T1550/R1310nm	20km	SMF	LC	YES	0℃~70℃

Company Profile

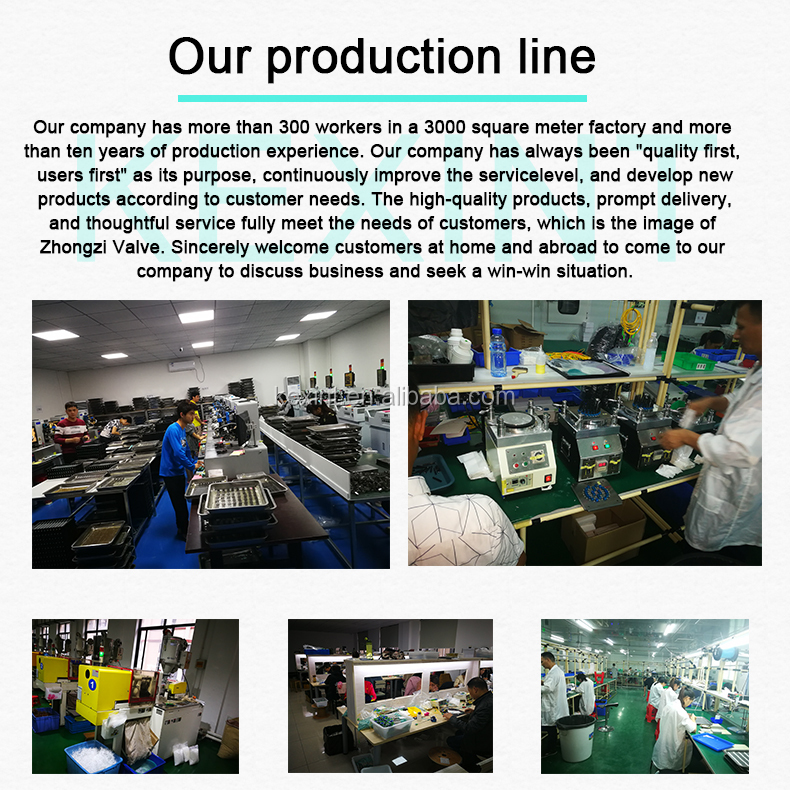

workshop
