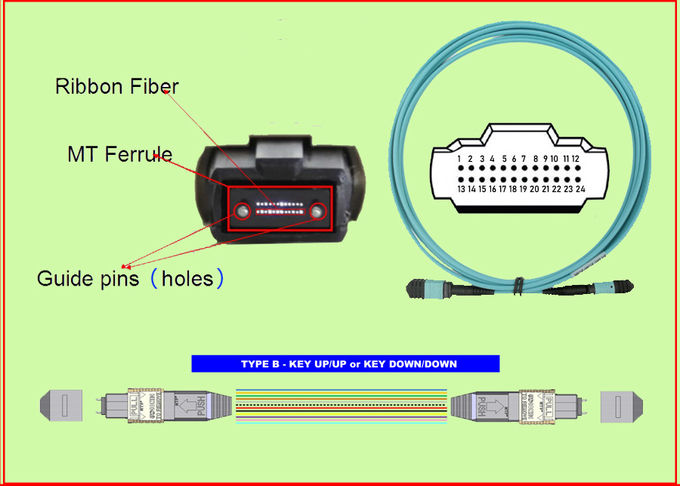

OM3 24 MTP MPO Fiber Optical Patch Cord 3M 24 Core type B SENKO Water Blue
Detail Information | |||
| Type Of Fiber: | OM3 | Speed Of Transmission: | 40 G |
|---|---|---|---|
| Colour Of Cable: | Water Blue | Wavelength: | 850/1300nm |
| Return Loss: | >30db | Transmission Distance: | 300 M |
| Cable Material: | LSZH, OFNR, OFNP Available | Suppler Of Connrctor Mtp: | SENKO MPO Female (pinless) |
| High Light: | mtp fiber optic cable,mtp mpo cable | ||
OM3 24 MTP MPO Fiber Optical Patch Cord 3M 24 Core type B SENKO Water Blue
Our strength:
The necessary conditions for the construction of the computer room and the construction of the Internet of Things! Standard loss, low loss, covering single-mode OM3, OM4 fiber; whether it is 12 core, 24 core or 1U-96 core rack, 1U-144 core rack, full chain support, one-stop service construction, everything!

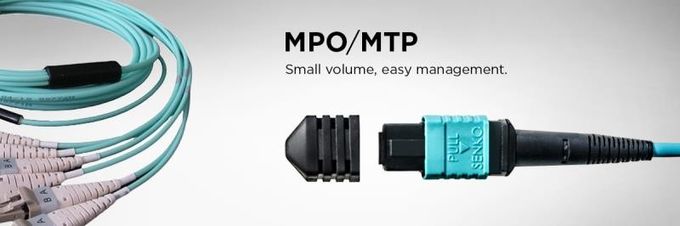

MPO / MTP patch cord are designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings.Our trunk cables are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with GR-1435-Core, GR-326-CORE for patchcords, GR-1209-CORE and GR-1221-CORE Compliant.
Specifications:
| Item | MPO/PC/F-MPO/PC/F-OM3-24B-3.0-5M-OFNP-AQUA-B |
| lnsertion loss | PC<0.7 dB |
| Return loss | PC>25 dB |
| Insert–pull test | (500 times)<0.3 dB |
| Operation temperature | -40℃ ~ +80℃ |
| Anti-tensile force | 15kgf |
End face geometric parameters and standards:
| Requirement | MM (50 & 62.5/125) | SM(APC) |
Surface inclination angle (X) | -0.2 °/0.2° | -0.2° / 0.2° |
Surface inclination angle (Y) | -0.2°/ 0.2° | 7.8°/ 8.2 ° |
| Fiber height | 1000nm - 3500nm, | 1000nm - 3500nm, |
| Maximum height difference of all optical fibers | <750nm | <600nm |
| Core height(nm) | -50-300 mm | -50-300 mm |

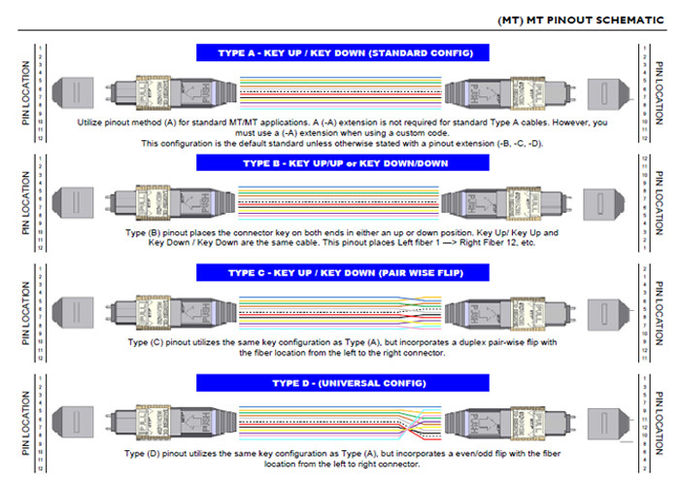

Scheme:A / B / C / D

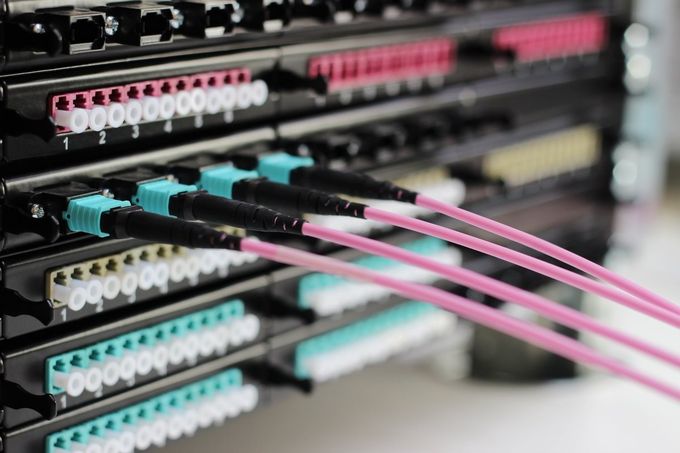

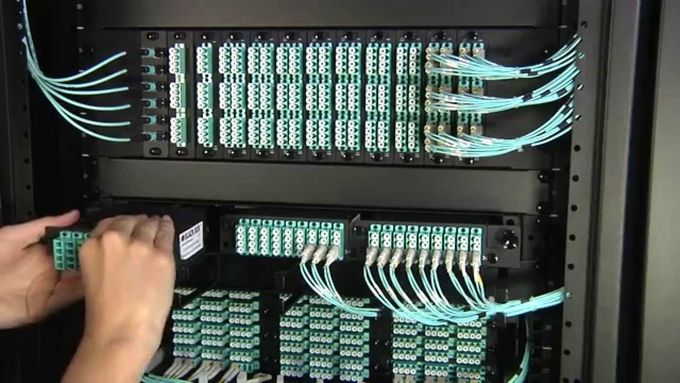

Application:
