Product Description
KXTG/E02 It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Detail Information | |||
| PON: | GPON | Downstream Rate: | 2.4 Gbps |
| Upstream Rate: | 1.25Gbps | Dimension: | 140mm*102mm*33mm(length*width*height) |
| Operating Condition: | -5 ~ +55℃,Operating Humidity: 10~90% (non-condensed) | Button: | RST, Power |
| Optical Wavelength: | Tx 1310nm, Rx 1490nm | Chipsets: | REALTEK/ZTE |
| High Light: | olt gepon,onu device | ||
Product Descriptions
♦ Complies with ITU G.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4 provides comprehensive GPON network compatibility
♦ Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
♦ Fiber access and gigabit port provide incredibly fast transfer speeds
♦ Supports OMCI (ONT Management Control Interface) remote management
| Technical items | Descriptions |
| Chipsets | REALTEK/ZTE |
| Optical interface | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Optical Wavelength | Tx 1310nm, Rx 1490nm |
| Optical interface | SC/PC |
| RX sensitivity | < -25dBm @ 1490nm |
| LAN interface | Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| DC power supply | DC 12V/1A, external AC-DC power adaptor |
| Button | RST, Power |
| Power consumption | ≤ 10W |
| Operating condition | Operating temp: -5 ~ +55℃,Operating humidity: 10~90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +60℃,Storing humidity:10~90%(non-condensed) |
| Dimension | 120mm*80mm*30mm(length*width*height) |
| Net weight | 0.3Kg |
Data Service Functions
1) Full speed non-blocking switching.
2) 2048 MAC address table.
3) 64 full range 4095 VLAN ID
4) Support VLAN QinQ, transparent, tag, translation, trunk, etc.
5) Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
6) Support auto polarity detection of Ethernet ports (AUTO MDIX).
7) Integrated IEEE802.1p QoS with four level priority queues.
8) Support IPv4 IGMP snooping and IPv6 MLD snooping.
9) Support bridging, router and bridging/router mixed mode.

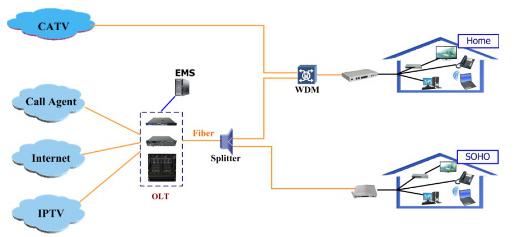

Application chart
