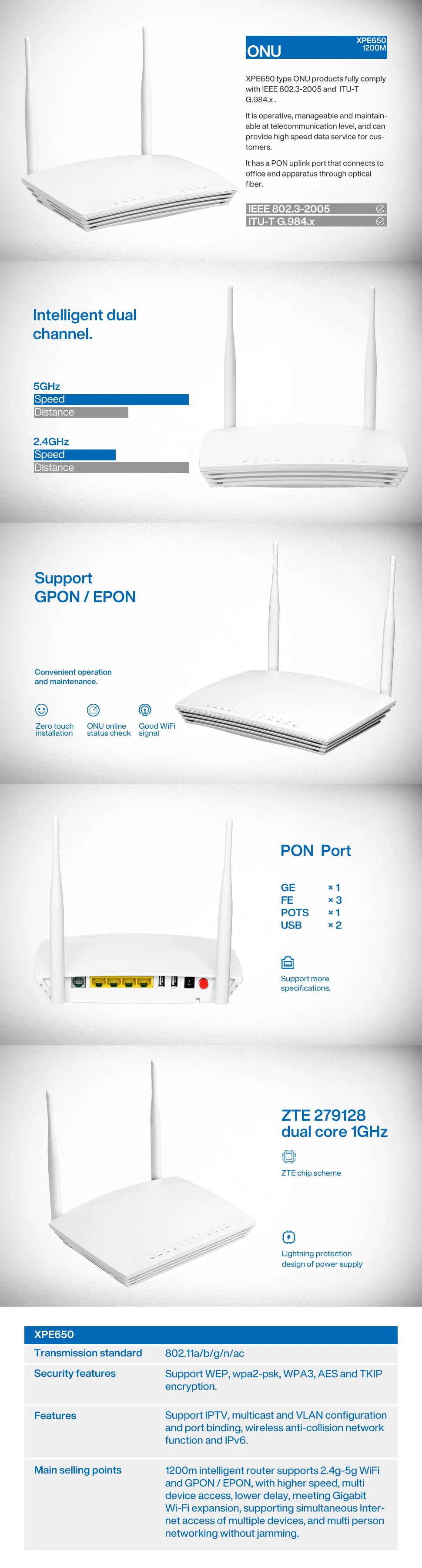

With the effort of excellent designers,fiber optic equipment KEXINT FTTH 1GE+3FE+1FXS+2USB+1Power Interface+WIFI(2.4G&5G) Catv Optical Network XPON ONU has unique style in its shape and appearance. The fiber optic equipment KEXINT FTTH 1GE+3FE+1FXS+2USB+1Power Interface+WIFI(2.4G&5G) Catv Optical Network XPON ONU has the significance of taking a leap forward and injects new impetus into the development of the industry. The research and development of fiber optic equipment KEXINT FTTH 1GE+3FE+1FXS+2USB+1Power Interface+WIFI(2.4G&5G) Catv Optical Network XPON ONU has further improved the company's market competitiveness.

Model Number:KXT- XPE650Type:ONU
Place of Origin:Guangdong, ChinaBrand Name:KEXINT
Use:FTTXWarranty Time:2 years
Network:NoneSize:194 * 152 * 32 mm (L * w * h)
Power supply:12V / 1Areceiving sensitivity:< - 27dBm
output optical power:- 1 ~ + 4dbmreceiving wavelength:1490 NM
transmission wavelength:1310 nmmaximum spectral ratio:1:128
rate:uplink 1.25gbps, downlink 2.5GbpsOperating temperature:- 5 ~ 55 ℃
Storage temperature:- 40 ° ~ 70

Products Description
XPE650 type ONU products fully comply with IEEE 802.3-2005 and ITU-T G.984.x . It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.
Data parameter
DDR
512M
FLASH
2GB
Optical fiber interface
1 SC / APC fiber port
Ethernet interface
1 x 10 / 100 / 1000m adaptive port (RJ45)
3 x 10 / 100M adaptive ports (RJ45)
Telephone interface
1 2-core telephone port
Wireless WiFi
2 external antennas
IEEE 802.11b/g/n compliant
2.4GHz wireless network
IEEE 802.11a/n/ac compliant
5GHz wireless network
USB port
2 USB 2.0 port
Product features:
➤ Comply with ITU-T g.984 standard
➤ Comply with H.248, MGCP and SIP protocol standards
➤ Comply with 802.11 n / B / g protocol standard
➤ It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
➤ Support frame filtering and suppression
➤ Support the standard 802.1Q VLAN function and VLAN conversion
➤ 4094 VLANs supported
➤ Support dynamic bandwidth allocation
➤ Support PPPoE, ipoe, bridge and other services
➤ Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic
control
➤ Support IGMP proxy and IGMP snooping
➤ Support Ethernet port speed limit, loop detection and layer-2 isolation
➤ Support power failure alarm
➤ Support remote reset and restart functions
➤ Support the function of restoring factory parameters
➤ Support data encryption
➤ Support status detection and fault reporting
➤ Support power lightning protection
➤ support GPON / EPON dual mode

Port characteristics:
✦ PON: connect the OLT equipment at the source end through the optical fiber line
✦ Ethernet port: connected to user side equipment through twisted pair network cable, lan1 port speed is 10 / 100 / 1000m, adaptive, lan2-lan4 end Adaptive port rate of 10 / 100M
✦ Telephone port: connected to user side equipment through telephone line
✦ Reset button: restart the equipment; Press and hold for more than 3 seconds and the system will return to the factory default
✦ WiFi button: wireless routing function on / off
✦ WPS button: WPS is used to simplify Wi Fi wireless security settings and network management, that is, Wi Fi protection settings, which you can set according to the client Support and select the appropriate mode
✦ Led button: LED indicator on / off
✦ Power switch: power on / off
✦ Power interface: connected to external power supply

Optical properties:
♣ support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
♣ interface type: SC / APC
♣ maximum spectral ratio: 1:128
♣ rate: uplink 1.25gbps, downlink 2.5Gbps
♣ transmission wavelength: 1310 nm
♣ receiving wavelength: 1490 NM
♣ output optical power: - 1 ~ + 4dbm
♣ receiving sensitivity: < - 27dBm
♣ The longest distance between OLT and ONU is 20km

Physical properties:
♠ Power supply: 12V / 1A
♠ Operating temperature: - 5 ~ 55 ℃
♠ Storage temperature: - 40 ° ~ 70 °
♠ Chassis specification: 194 * 152 * 32 mm (L * w * h)
