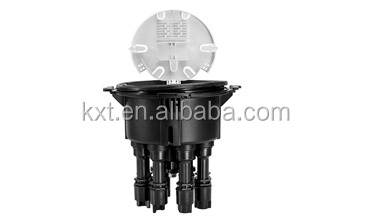

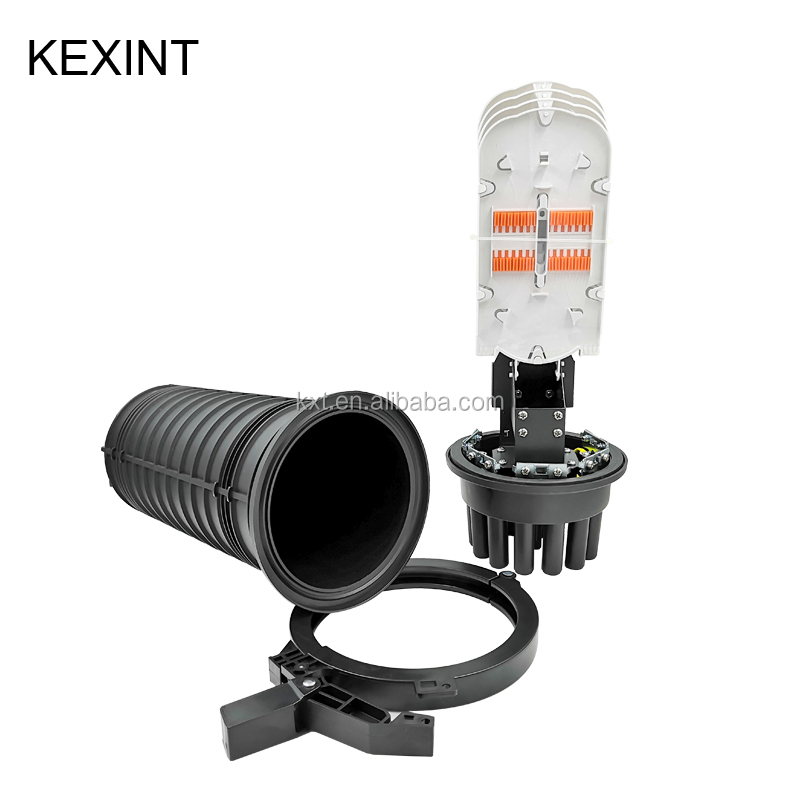

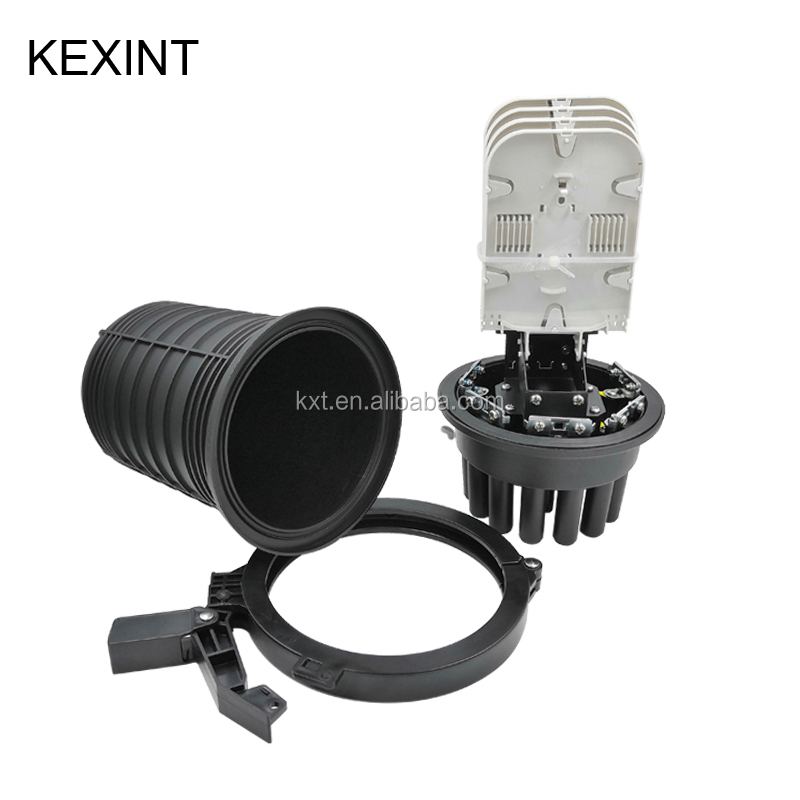

KXT-C-04 fiber access termination closure is able to hold
up to 16-24 subscribers and 96 splicing points as closure.
It is used as a splicing closure and a termination point for
the feeder cable to connect with drop cable in FTTx
network system. It integrates fiber splicing, splitting,
distribution, storage and cable connection in one solid
1.Water-proof design with IP-68 Protection level.
2. Integrated with flap-up splice cassette and adaptor holder.
3. Impact test:IK10,Pull Force:100N,Full rugged design
4. All stainless metal plate and anti-rusting bolts,nuts.
5. Fiber bend radius control more than 40mm.
6. Suitable for the fusion splice or mechanical splice.
7. 2 pcs of 1*8 Splitter can be installed as an option.
8. Mechanical sealing structure and mid-span cable entry.
9. 16 ports cable entrance for drop cable.
10. 24 adaptors for drop cable patching.
|Material||Size||Max Capacity||Nos of Adaptor||Weight||Color|
|Splice 96 Fibers|
2pcs of 1x8
|24pcs of SC||4kg||Bla|
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,
hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.
|3||Sealing ring||1||Box sealing|
|4||sealing parts||24||Sealing cable ports|
|5||Splice tray||4||For cable splicing and storage|
|6||Splice tray cover||1|| |
|7||Splice tray bandage||1||Fixing several splice trays|
|8||Fastener bolt||2||Fixing lid and cover of closure|
|9||Buckle||4||Fixing lid and cover of closure|
|10||Tight nuts||24||Sealing soft cable ports|
|11||Tight tool||1||Special for tight the nuts|
|12||Cable fixing panel||1||Fixing un-cut cable|
|13||Adaptor installation panel||4||An adaptor panel for 6 SC simplex adaptors|
|14||Splice tray bracket||1||Install 4 splice trays|
|15||Top cover stopper||1||Limit top cover|
|16||Wall mounting kit||1||For wall mounting|
|17||Expansion anchor bolt||2||Parts of the wall mounting kit|
|18||Hexagon bolt||2||Parts of the wall mounting kit|
|19||Nylon tie(3*120mm)||12||Fixing cable|
|20||Fusion sleeve(Φ1.0*60mm)||According to the fiber cores.||Cable splicing|
|21||0.2m coil tube||1||Protect the fiber|
|22||Insulation tape||1||Accessorial fixation|
|23||0.5m EVA tube||1||Protect fiber|
|25||Pole mounting kit||1||For pole mounting|
|26||Valve||1||Testing sealing performance|
Un-cut cable working procedure
