Detail Information |
|||
| Accessible Cables: | 1 In , 4 Out | Fiber Optical Quantity: | 12 Cores ~ 144 Cores |
|---|---|---|---|
| Sealing Standard: | IP68 | Cable Diameter (mm): | 7~18mm |
| Material: | MPP | Colour: | Black |
| Size: | Φ182.5 X 521.1 Mm | Diameter Of Fiber Cable: | 4*Φ18mm+1*Φ42 Mm |
| Maximuam Splitting: | 1:4 (4pcs); 1:8(2pcs); 1:16(1pcs) | Splice Tray: | 4* 24 Cores |
| High Light: | FOSC Dome Fiber Optical Closure,IP68 Dome Fiber Optical Closure,PP Thread Fiber Optic Enclosures |
||
Fiber Optic Dome Closure IP65 Outdoor FOSC PP Thread Mechanical sealing, silicon rubber
KXT-14 A member of dome closure, used for the products' straight through connection in the optical transmission process, provides protection for the joint connection. With four small round ports and one large round port, it adopts threaded mechanical seal, can be used for aerial, pole-mounting, wall-mounting and underground application. It is excellent in sealing performance, easy for installation, and has wide application.
1.Features:
(1) Adapter: can load 36pcs SC simple adapters or 36pcs LC duplex adapters
(2) Splitter: can loaded 1pc PLC splitter 1*8,1*16 or 1*32
(3) Splice tray: 3pcs, each 24cores
(4) Cable port: 5 cable ports: 4pcs(Φ18mm), 1pcs (Φ42mm, cable no cutting). All cable ports are mechanical sealing
(5) With different size rubber gasket for simplex, FTTH drop cable entry/exit
(6) Waterproof: IP68
(7) Wall-mounting, aerial hanger and pole holding
(8) Material: high impact resistance PP materials with UV
2. Specification:
| Model | Capacity | Dimension | Splice tray | Weight |
| KXT-M14 |
72 fibers Max. 144 fibers |
Φ182.5 x 521.1 mm |
3pcs, each 24 fibers If without adapter panel, Max.6pcs |
4.0 kgs |

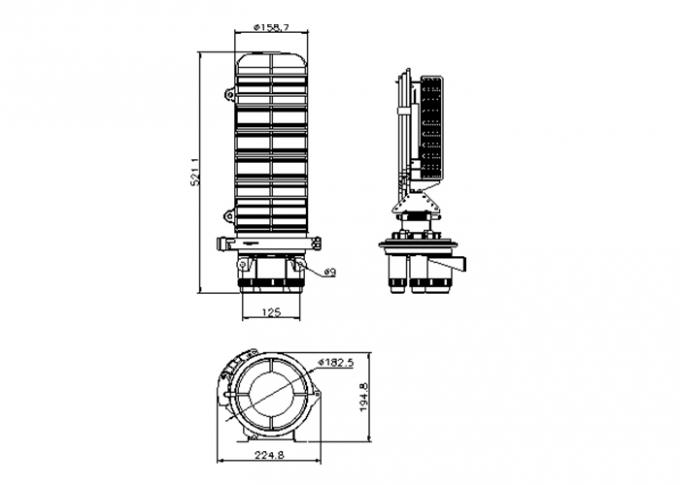

3. Size(mm):

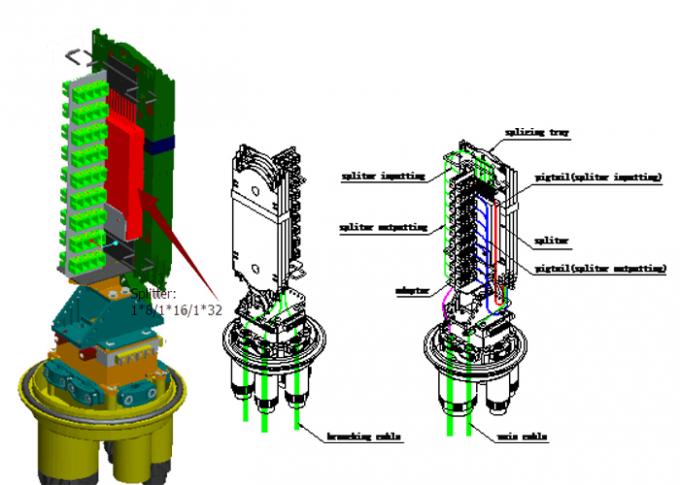

4Cable distribution:
5Packing list:
| Box body | 1 set | Manual | 1 pc |
| Stainless steel mounting set | 1 set | Ground wire (L=120mm) | 1 pc(optional) |
| Branch fork | 1 pc | Pole connector | 2 pcs(optional) |
| Splice bag (12 pcs)/bag | Configured by core number | Foil paper | 2 pcs(optional) |
| Bare fiber protection tube | optional | Stainless steel hoop | 4 pcs(optional) |
