Detail Information |
|||
| Size: | 374×143×60 | Material: | PC |
|---|---|---|---|
| Capacity: | 1 Into 12 Out | Color: | Black |
| Mounting Way: | Wall Mounting , Holding Pole And Buried Underground | Waterproof Level: | IP68 |
| Application: | FTTX Network Off-road | Compatibility: | CORNING And HUAWEI(MTP/MPO/SC/LC) |
| High Light: | fiber optic joint box,optical fibre cable joint closure |
||

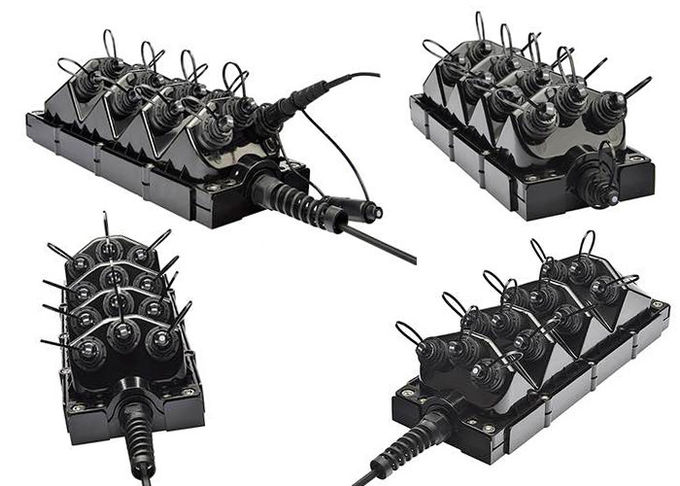

Outdoor Waterproof 12 Core Fiber Optic Closure Optitap Mini Off-road antenna ODVA IP68 terminal box
Specification
| Dimensions LxWxH | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
| Ingress protection | IP68 |
| Temperature range | -40 to + 80°C |
| Cable strength member | Armoured or Non-armoured |
| Cable type | Hybrid or non-hybrid |
| Round cable OD | 5.0mm to 14mm |
| Flat cable dimension | 4.6x8.9mm |
| Cable jacket material | LSZH, PEorTPU |
| Bending Radius | 20D |
| Cable crush resistance | 200N/cm long term |
| UV resistance |
i zuuiN long lerm ISO 4892-3 |
| Fire protection rating | UL94-V0 |
| Number of PLC | 1 to 2pcs |
| Number of fusion protection sleeve | 1 to 24pcs |
Configuration:
| Material | Size | Max Capacity | Nos of Adaptor | Weight | Color | |
| Strengthen Polymer Plastic |
(mm) 374×143×60 |
Splice 12 Fibers (1trays,12 fiber/tray) |
PLC Splitter 1 pcs of 1x8 |
12 pcs of SC | 1.75 kg | Black |
Trunk Cable Connecting
Prospecting or Military Communication
The cable will be replayed frequently, when prospecting or military communication. Normal connector and cable cannot stand frequently and high strength pulling and reuse. Inside of the KXT-R-12, armored cable and strength member were fixed by fastener, which make sure the box can stand 1200N pulling force long term. It’s very suitable for field use, especially in star network communications. High strength material and arc interface design make sure KXT-R-12 work abnormally when suffer shocks.Features and Benefits
