Kexint MTP®/MPO Slim Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP®/MPO Slim Trunks are suitable for up to 800G applications to connect between equipment or to interconnect modules/panels in a data center. Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optics connection.
| Parameters | IL – Max | IL – Typical | RL |
| SM APC – Standard | 0.75 dB | 0.40 dB | > 60 dB |
| SM APC – Premium | 0.35 dB | 0.20 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.40 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.20 dB | > 20 dB |
Kexint MTP®/MPO Slim Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP®/MPO Slim Trunks are suitable for up to 800G applications to connect between equipment or to interconnect modules/panels in a data center. Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optics connection.
Feature
✓ Conform to IEC, EIA-TIA, and Telcordia performance requirements
✓ All Assemblies are machine polished providing highest quality
✓ Cable terminated with base-12 fiber MTP®/MPO Connectors
✓ MPO push/pull release boot (only available in Standard and Elite versions)
✓ Available in custom length and cable construction from 8 to 144 fibers
✓ All Assemblies are factory tested and come with test certificate
✓ Factory pre-terminated assemblies with protocol for constant and reliable quality
✓ CPR Euro classes certified on demand
Application
✓ Telecommunication networks

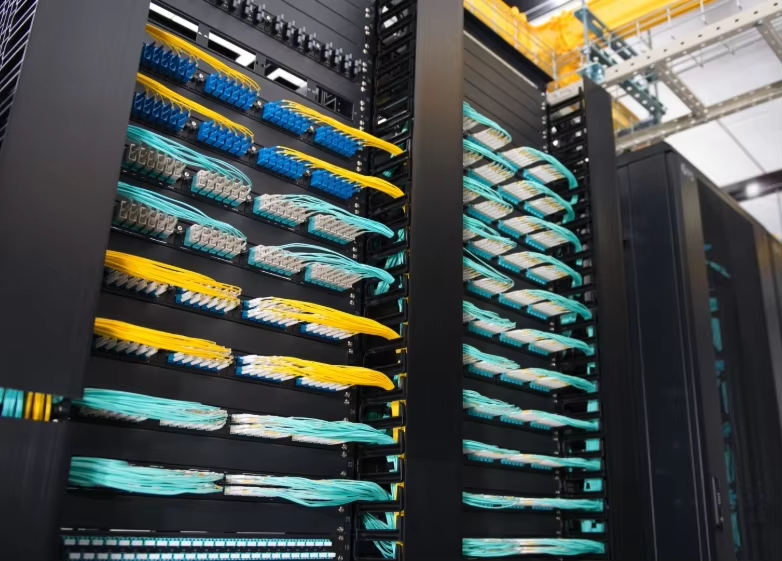

✓ Data centers, Co-location DC
✓ LAN or Campus wide Network
✓ Supports up to 800G applications

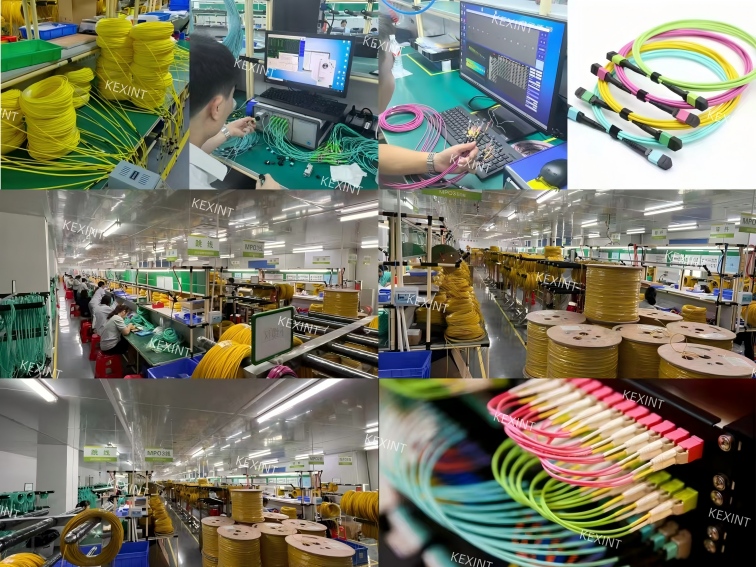

Our Factory
