Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. It provides you SC,FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection. The maximum extension is up to 120km over fiber.Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
Detail Information | |||
| Transmission Speed: | 1000Mbps | Wavelength: | 1310nm/1550nm |
|---|---|---|---|
| Connector: | SX/LX | Distance: | 20KM |
| Fiber Type: | SM MM | Port Type: | SC/ST/FC And RJ45 |
| Product Certifications: | CCC, CE, CE, FCC, FCC, RoHS, RoHS | Power Output: | DC 48V To DC 5V |
| Data Buffer: | 256K | ||
| High Light: | electrical sfp module,fiber optic ethernet transceiver | ||
1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply
Technical Specification：
1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K
10/100/1000M Dual fiber：
| Connector type | SC | SC | SC | SC | SC |
| Fiber type | Multi-mode | Single-mode | Single-mode | Single-mode | Single-mode |
| Wavelength | 850nm | 1310nm | 1310nm | 1550nm | 1550nm |
Max Distance | 62.5µm: 224m |
20Km |
40Km |
60Km |
80Km |
| 50µm: 550m | |||||
| Min TX PWR | -11.0dBm | -9.0dBm | -4.0dBm | -8.0dBm | -3.0dBm |
| Max TX PWR | -6.0dBm | -5.0dBm | 0dBm | 0dBm | 0dBm |
| Sensitivity | < -18dBm | < -21dBm | < -24dBm | < -25dBm | < -25dBm |
| Link Budget | 7.0dBm | 12.0dBm | 20.0dBm | 17.0dBm | 22.0dBm |
10/100/1000M single fiber：
| Connector type | SC | SC | SC | SC |
| Fiber type | Single-mode | Single-mode | Single-mode | Single-mode |
| Wavelength | 1310/1550nm | 1310/1550nm | 1310/1550nm | 1490/1550nm |
| Max Distance | 20Km | 40Km | 60Km | 80Km |
| Min TX PWR | -10.0dBm | -4.0/-8dBm | 0/-5.0dBm | -1dBm |
| Max TX PWR | -4.0dBm | 0dBm | 3/0dBm | 3dBm |
| Sensitivity | < -22dBm | < -25dBm | < -25dBm | < -25dBm |
| Link Budget | 12.0dBm | 20/17dBm | 25/20dBm | 24.0dBm |
Cable Connection of 10/100/1000M Series Gigabit Converter：
| Port type | Cable Type | Max.Length |
| 10/100/1000BASE-T | Cat. 5, 5E UTP, RJ-45 | 100 meters |
| 1000BASE-SX | Multi-mode Fiber of 850n (62.5/125µm) | 220 meters |
| 1000BASE-SX | Multi-mode Fiber of 850nm (50/125µm) | 550meter |
| 1000BASE-LX | Single-mode Fiber of 1310nm(9/125um) | 10-100km |
LED Indication：
Please refer to the following table for LED indication of 10/100/1000M Series Gigabit Converter
| LED | Status | Indication |
| power | ON | The Power is on |
| lnk/act | Flash | F1:FX Data,P1 and P2:TP Data |
| speed | ON | The Speed is 1000M |
Specifications of 10/100/1000M Series Gigabit Converter：
| MODEL | 1,10/100/1000M Series | 2,10/100/1000M Series | |
| STANDARD | IEEE802.3ab 1000BASE-T; | IEEE802.3ab 1000BASE-T; | |
IEEE802.3z 1000BASE-SX | IEEE802.3z 1000BASE-LX | ||
| INTERFACE | RJ-45 part x 1 (10/100/1000 Mbps) SC connector Fiber port x 1 (1000 Mbps) | ||
TP CONNECTIONS | 10/100/1000BASE-T:UTP Category 5, 5E | ||
FIBER CONNECTIONS | 1000BASE-SX:62.5/125µm or 50/125µm Multi-mode fiber, SC/FC connector | 1000BASE-LX:9 or 10/125µm Single-mode fiber ,SC/FC connector | |
LED INDICATIONS | lnk/act,speed,power | ||
| MAX.DISTANCE | 550m/220m | 10km and 20km,100km | |
| ENVIRONMENT | Operating Temp:0~+70℃ Storage Temp:-40~+85℃ Humlblty:10~90% non-condensing | ||
| POWER | 5V 2A | ||
| NET WELGHT | 500 g | ||
| EMISSION | FCC Class A, CE | ||
Typical Optical Power Budget：
| 10/100/1000M Series | |||||
| Connector | SC | SC | SC | SC | SC |
| Wavelength | 850nm | 1310nm | 1310nm | 1310nm | 1550nm |
| Typical | 550m/220m | 10Km | 20Km | 30Km | 50-100Km |
| Min TX | -11dBm | -11.0dBm | -10.0dBm | -7.0dBm | -1~-6.0dBm |
Max TX PWR | -3.0dBm | - 3.0dBm | -1.0dBm | 0.0dBm | 0.0dBm |
| Sensitivity | -18dBm | -21.0dBm | -21.0dBm | -24.0dBm | -24.0dBm |
Link Budget | 8.5dB | 12.0dB | 15.0dB | 19.0dB | 19.0dB |
Installation：
As with any electric device, you should place the equipment where it will not be subject to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: Please follow the steps to install the media converter. This Converter is aplug-and-play device.
1. Turn off the power of the device/station in the network in which the media converter will be installed.
2. Ensure that there is no activity in the network.
3. Attach fiber cable from the media converter to the fiber network. The fiber connections must be Matched-Transmit socket to receive socket
4. Attach a UTP cable from the 1000Base-Tx network to the RJ-45 port on the product
5. Connect the power cord to the media converter and check if the power LED lights up. The TP Link and FX link LED will light when all the cable connections are satisfactory.
6. Turn on the power of the device/station.
Packing & Delivery：
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or kexint brand are available
Inner packing: 5pcs in one carton
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation: By air ,by sea ,by DHL ,Fedex TNT ,UPS ...

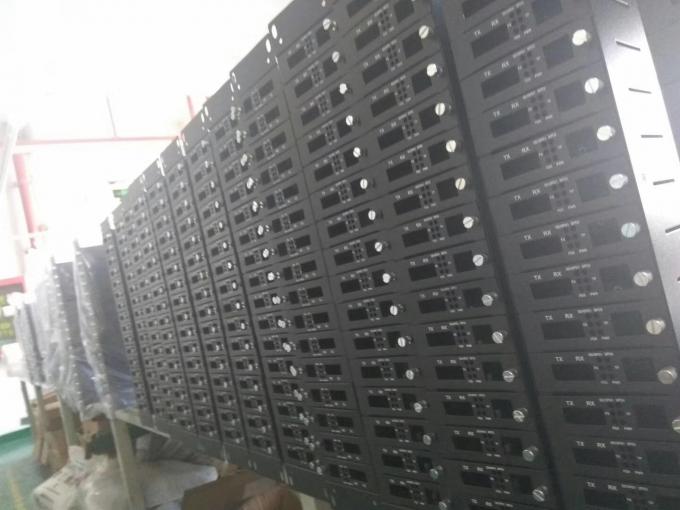

Our Company:
1).Lead time
With more than 200 employees in my company,at least 10,000 connectors can be produced.
2).Research Department
With our separate research team,so we are albe to have products made according to your requirements.
3).Qulity assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.
The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.
