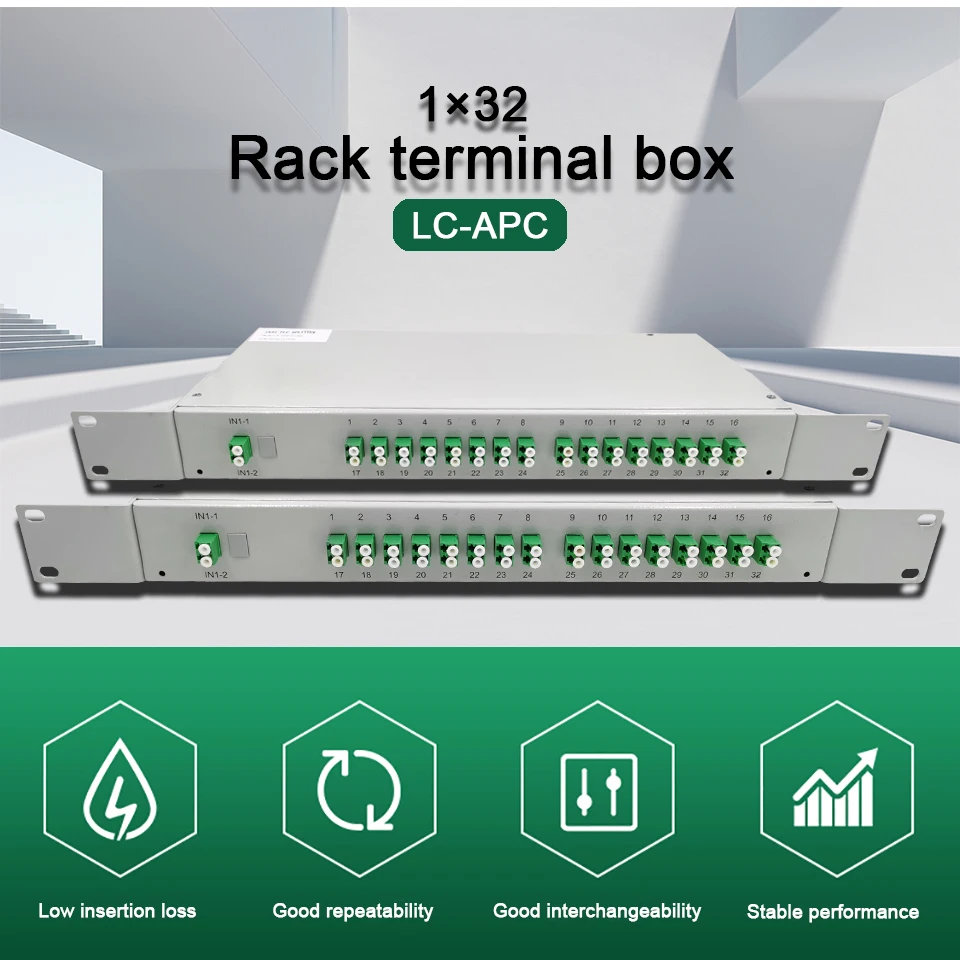

Keeping close up with the latest trend, Shenzhen Kexint Technology Co., ltd. has made KEXINT Fiber Optical 1*32 Rack Mount PLC Splitter LC APC a competitive product in the market. It is expected to lead the industry trend and bring benefits to customers. Continuous innovation ability is the fundamental guarantee of product quality. Shenzhen Kexint Technology Co., ltd. will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.

Model Number:1*32 LC/APCType:Fiber Optical PLC Splitter
Place of Origin:Guangdong, ChinaBrand Name:KEXINT
Use:FTTHWarranty Time:2 years
Network:NoneCertification:CE/ROHS/ISO9001
Fiber Type:G657A2Connector:SC APC
Cable type:RG178/RG316/1.13Insulation:FPE
Sheath:White LSZH

Products Description
The frame is a splitter, which is an integrated waveguide optical power distribution device based on a quartz substrate. It has the characteristics of small size, wide operating wavelength range, high reliability, and good uniformity of light splitting. It is especially suitable for passive optical networks (EPON, BPON, GPON, etc.) connect the central office and terminal equipment and realize the branching of optical signals. There are two types of 1 × N and 2 × N. The 1 × N and 2 × N splitters evenly divide the optical signals from multiple single or dual inlets into multiple outlets, or work in reverse to send multiple optical signals into a single or dual fiber.

Features:

· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm

Application:

Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)

1×32 Single Mode PLC Splitter Data Sheet
Operating Wavelength(nm)
1260-1650
Inspected Date
2018/12/8
P/N:
PLC-U-1X32
S/N:
20180308043
Fiber Type
G657A1
Fiber Length(m)
≥1.0
Connector Type
SC/APC
Package Dimension(mm)
482.6*44.45
Storage Temperature
-40~+85℃
Operating Temperature
-40~+85℃
Item
IL(dB)
PDL(dB)
RL(dB)
Wavelength(nm)
1310
1550
1310
1550
1310
1550
Spec.
MAX17.1
MAX 0.3
≥55
Port1
16.50
16.22
0.06
0.17
Pass
Pass
Port2
15.96
16.07
0.14
0.05
Pass
Pass
Port3
16.16
16.49
0.06
0.18
Pass
Pass
Port4
16.22
15.86
0.12
0.06
Pass
Pass
Port5
15.80
16.23
0.19
0.07
Pass
Pass
Port6
15.94
16.50
0.13
0.12
Pass
Pass
Port7
16.13
16.49
0.16
0.09
Pass
Pass
Port8
15.85
16.51
0.10
0.15
Pass
Pass
Port9
16.33
16.07
0.06
0.16
Pass
Pass
Port10
16.19
16.42
0.05
0.10
Pass
Pass
Port11
16.34
16.57
0.18
0.16
Pass
Pass
Port12
15.88
15.81
0.11
0.13
Pass
Pass
Port13
15.98
16.40
0.16
0.10
Pass
Pass
Port14
16.23
16.51
0.14
0.07
Pass
Pass
Port15
16.12
16.57
0.15
0.07
Pass
Pass
Port16
16.35
16.02
0.02
0.06
Pass
Pass
Port17
16.52
16.47
0.17
0.03
Pass
Pass
Port18
16.18
16.40
0.02
0.11
Pass
Pass
Port19
15.85
16.13
0.02
0.10
Pass
Pass
Port20
16.55
16.49
0.03
0.02
Pass
Pass
Port21
16.53
16.29
0.08
0.17
Pass
Pass
Port22
16.14
16.27
0.13
0.05
Pass
Pass
Port23
15.86
16.31
0.11
0.09
Pass
Pass
Port24
16.51
16.40
0.08
0.18
Pass
Pass
Port25
16.30
16.12
0.12
0.04
Pass
Pass
Port26
16.57
16.18
0.08
0.12
Pass
Pass
Port27
15.87
16.54
0.10
0.17
Pass
Pass
Port28
16.35
16.56
0.05
0.11
Pass
Pass
Port29
16.39
16.36
0.04
0.02
Pass
Pass
Port30
16.36
16.24
0.03
0.01
Pass
Pass
Port31
16.54
16.51
0.16
0.16
Pass
Pass
Port32
16.35
16.49
0.14
0.09
Pass
Pass
Input
N/A
Pass
Pass
MAX.
16.57
16.56
0.17
0.18
N/A
MIN.
15.85
16.12
0.02
0.01
N/A
Average
16.30
16.36
0.09
0.09
N/A
Uniformity(≤1.5dB)
0.72
0.44
Directivity(dB)
≥55
