MMS4a00 Compatible 1.6t 2xdr4/Dr8 Osfp Flat Top PAM4 Dom Dual MPO-12/APC SMF Infiniband Xdr Optical Transceiver Module

OSFP-1.6T-2xDR4H Optical Transceiver Module is an InfiniBand and Ethernet 1.6Tb/s 2x800Gb/s Twin-port OSFP224, 2xDR4/DR8 single mode, Silicon photonics-based, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 800Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 200G-PAM4 modulation and has a maximum fiberreach of 500-meters using 8 single mode fibers. The main application for OSFP-1.6T-2xDR4H is linking two switches together with up to 500 meters.

SEND INQUIRY NOW

Form Factor	OSFP224	Distance	500m
Wavelength	1310nm	Connector	Dual MPO-12 /APC
Power Consumption	≤26W	Transmitter	DFB(SiPh Based)
Receiver	PIN(SiPh Based)	Media	SMF
Modulation(Electrical)	8x212Gb/s PAM4	Modulation(Optical)	Two ports 4x212Gb/s PAM4

SEND INQUIRY NOW

Product Details

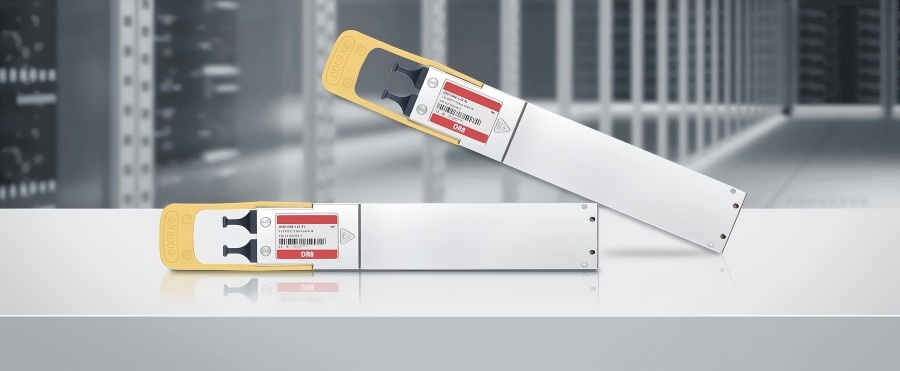

NVIDIA/Mellanox MMS4A00 Compatible 1.6T OSFP 2xDR4/DR8 PAM4 InfiniBand XDR Optical Transceiver (SMF, 1310nm, 500m, Dual MPO-12/APC, DOM, Flat Top)

The NVIDIA/Mellanox InfiniBand MMS4A00 Compatible OSFP Optical Transceiver is an InfiniBand 1.6T 2x 800Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 800Gb/s each. The parallel single mode, short reach 8-channel (2xDR4/DR8), uses 200G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers. It is qualified for use in InfiniBand XDR end-to-end systems.
It is the ideal solution for supercomputing and HPC industries, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. The flat-top (OSFP-RHS) version is suitable for liquid-cooled switches.

Feature

High Bandwidth, Low Power and Seamlessly Integrating

1.6T 2xDR4/DR8 OSFP flat-top optical transceiver module provides up to 1600Gbps aggregate throughput and can be applied in liquid cooling environments. Without heat sink, it can be fitted with the equipment in a tight fit, so it has a large contact area and is convenient for heat dissipation.

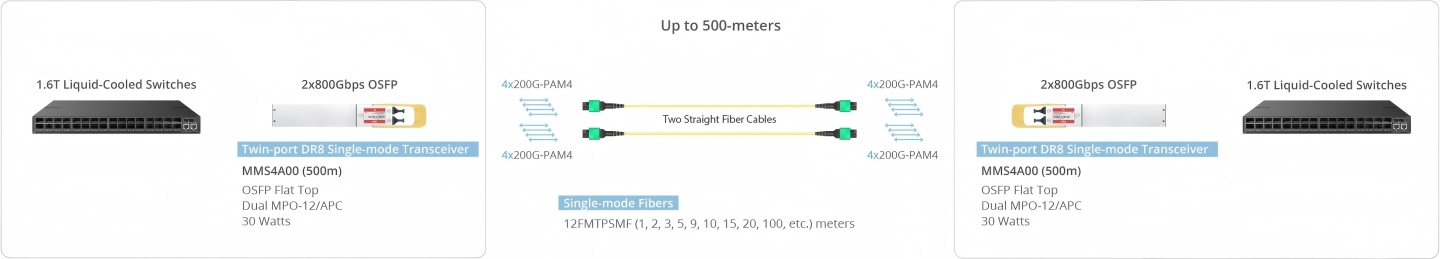

Connectivity Solution

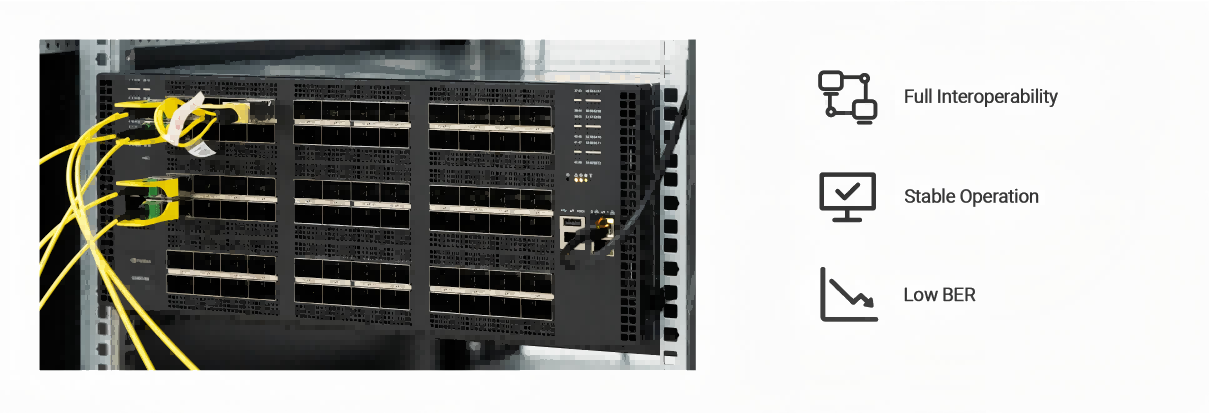

Application

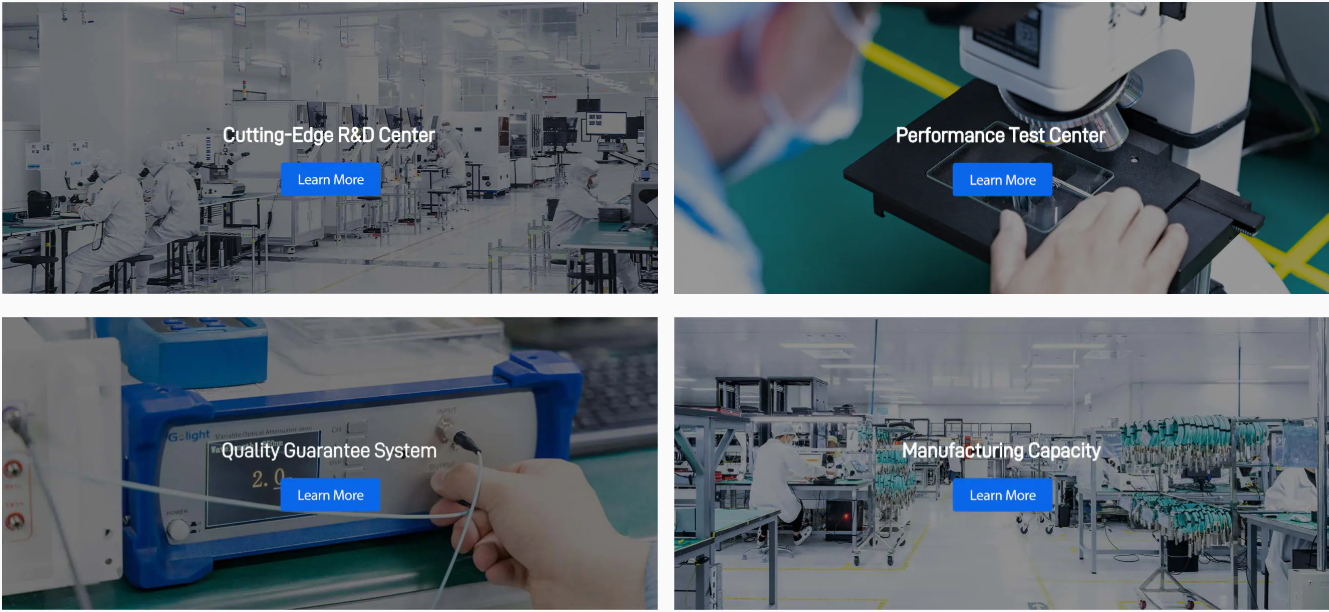

Testing
