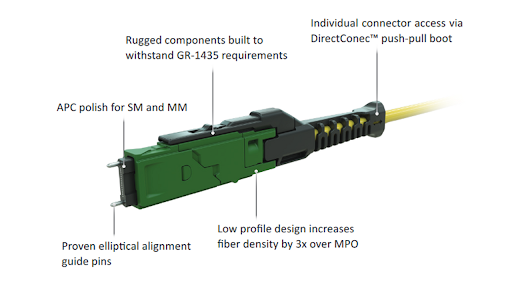

Kexint MMC 16-fiber patch cable is equipped with the innovative US Conec MMC connector, a cutting-edge VSFF multi-fiber interface. It adopts an advanced TMT™ ferrule of MT design, which maximizes fiber density exponentially while maintaining uncompromised transmission performance.
Designed for present and next-gen network deployments (400G, 800G, 1.6T and more), the Kexint MMC 16-fiber cable boasts ultra-low insertion loss and exceptional return loss. It also streamlines the historically cumbersome
polarity and gender configuration processes, effectively lowering the operational complexity associated with traditional MPO/MTP cabling systems.
Key Specifications
Connector Type: MMC/APC connectors on both ends (angled physical contact for superior return loss)
Fiber Count: 16 fibers per connector (single-row)
Fiber Mode: OS2 Singlemode 9/125 µm (Corning® G.657.A1 bend-insensitive fiber)
Insertion Loss: Typical ~0.25 dB, maximum ≤ 0.50 dB (elite low-loss ferrules)
Return Loss: ≥ 60 dB (excellent reflectance performance due to APC polish)
Jacket Rating: OFNP Plenum-rated (yellow jacket), suitable for in-building plenum pathways
Wavelengths: Optimized for 1310 nm and 1550 nm operation (standard singlemode wavelengths)
Operating Temperature: 0°C to 70°C (tested for stable performance in typical data center environments)
The MMC 16-fiber patch cable isn’t just a standard fiber jumper – it’s purpose-engineered for the high-density, ultra-high-speed demands of modern data centers and telecom networks. Here’s what makes it stand out:
High-Density Design: Fibers are precision spaced at just 0.25 mm, delivering 3× the port density of conventional MPO/MTP connectors. Ideal for space-crunched server racks and crowded patch panels.
Ultra-Low Insertion Loss: The premium TMT Elite™ ferrule guarantees minimal signal loss per connection, enabling longer transmission distances and supporting high-speed 400G/800G/1.6T data rates.
Universal Compatibility & Easy Operation: Fully works with standard fiber optic maintenance tools (cleaning pens, interferometers, polishers). The ergonomic DirectConec™ push-pull boot allows effortless insertion and removal, even in the most densely populated cabling panels.
Why Choose MMC Over MPO?
You might be asking: why switch to MMC connectors when MPO/MTP has long been the industry standard? Here’s why MMC is fast becoming the go-to choice for new high-density deployments:
Size Delivers Density: MMC connectors are roughly one-third the size of MPO, yet support more fibers—boosting patch panel port density by 3×.
Ergonomic Ease: The push-pull boot enables quick, tool-free insertion and removal, even in the tightest rack spaces. No more struggling with extraction tools.
Simplified Deployment: Streamlined polarity and gender management cuts installation time and reduces costly troubleshooting issues.
Upgrade Your Network with Kexint MMC 16-Fiber Patch Cables
In an era where data density, transmission speed and scalable performance drive network success, Kexint MMC 16-Fiber Patch Cable emerges as a future-proof connectivity solution that scales with your business. It fuses high fiber capacity, ultra-low loss performance and installer-centric design into a single compact connector form factor.
Whether you’re powering high-performance AI computing clusters, hyperscale cloud data centers, or mission-critical enterprise and government networks, Kexint cable delivers uncompromised bandwidth, stability and reliability for all your high-speed connectivity needs.
