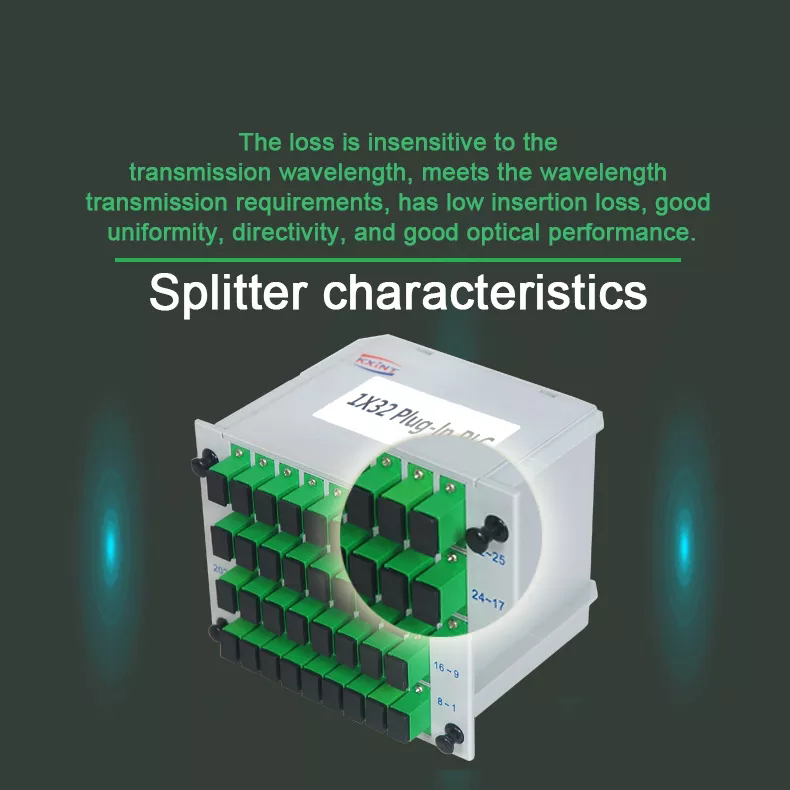

PLC 1×32 Fiber Optical Splitter SC/APC LGX 1260 ~ 1650 1*32 Colour Fiber Separation

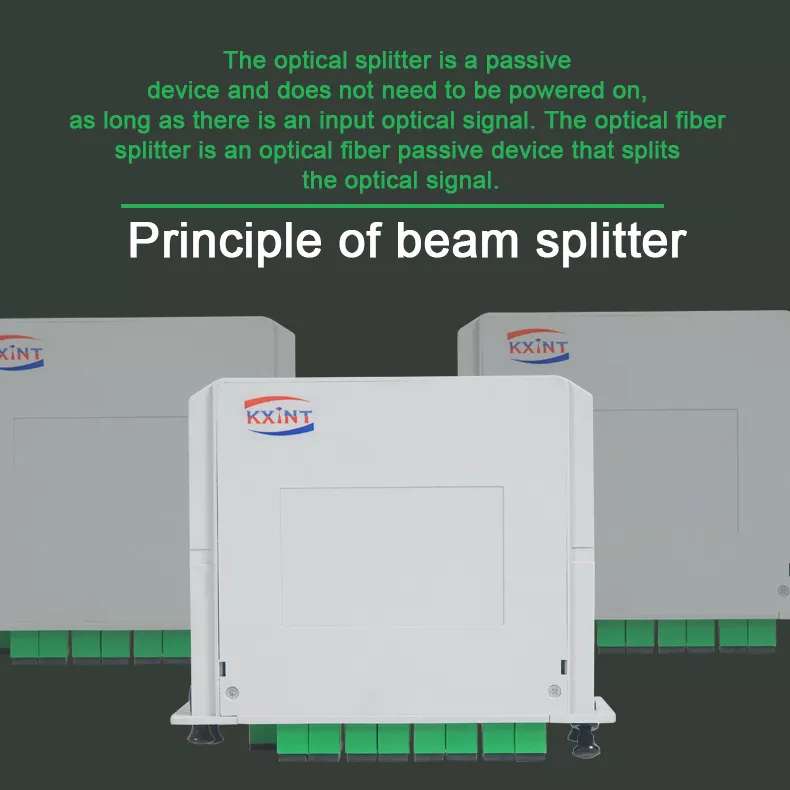

Single Mode PLC Splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.
Detail Information | |||
| Working Wavelength: | 1260-1650nm | Type: | Single Mode |
| Splitter Ratio: | 1x32 | Connector: | SC/APC |
| Insertion Loss: | ≤17.1dB | Application: | FTTH FTTB FTTX Network |
| Product Name: | PLC 1*32 | Size: | 130*100*100 Mm |
| High Light: | fiber optic plc splitter,abs plc splitter | ||

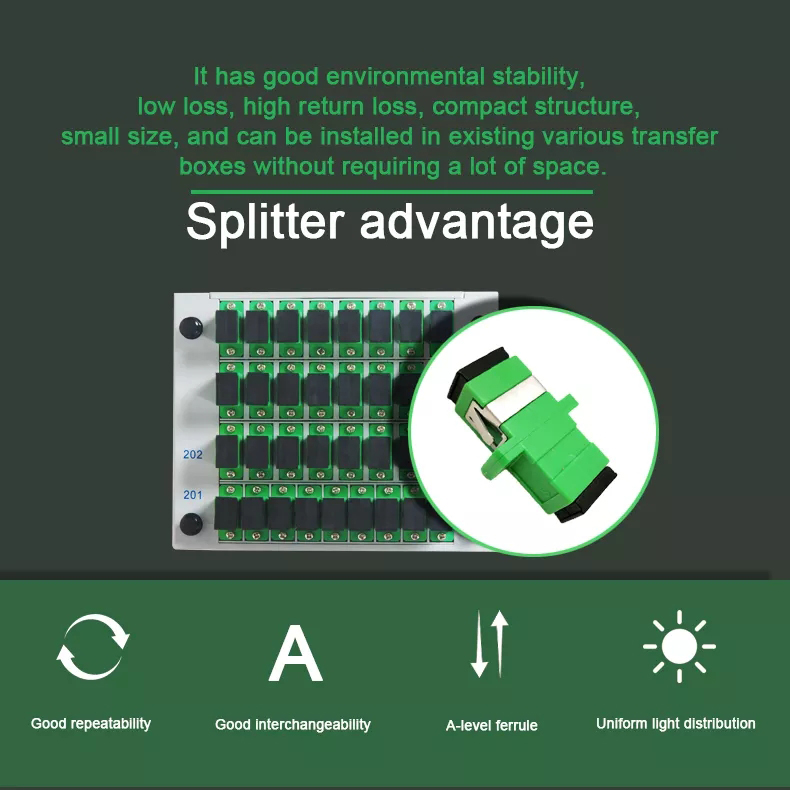

Features:
· Low Insertion loss
· Low PDL Compact Design
· Good channel-to-channel uniformity
· Wide Operating Wavelength: From 1260nm to 1650nm
· Wide Operating Temperature: From -40℃ to 85℃
· High Reliability and Stability

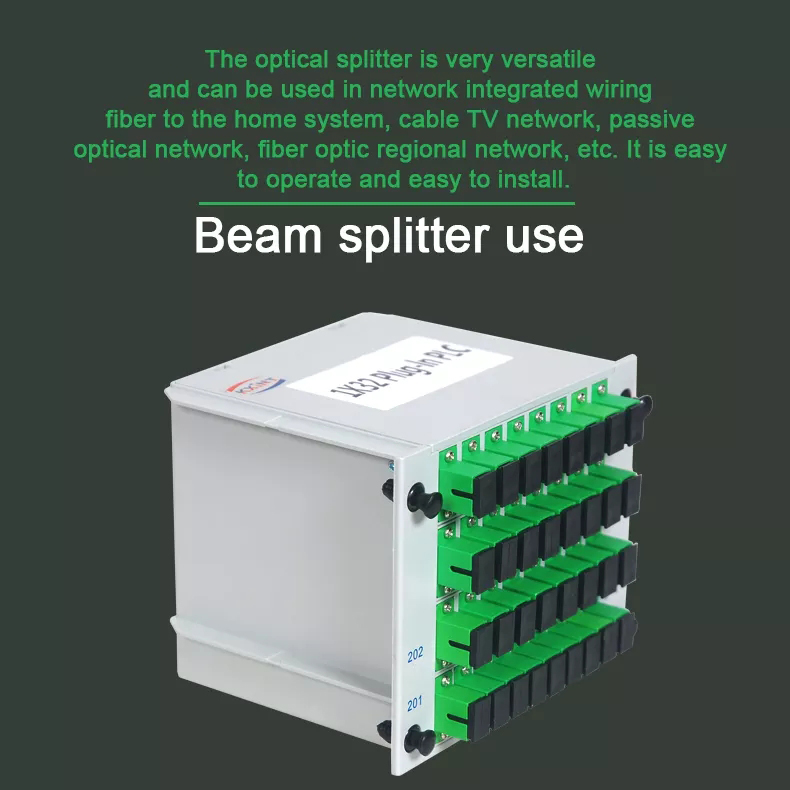

Applications:
· FTTX Systems
· PON Networks
· CATV Links
· Optical Signal Distribution

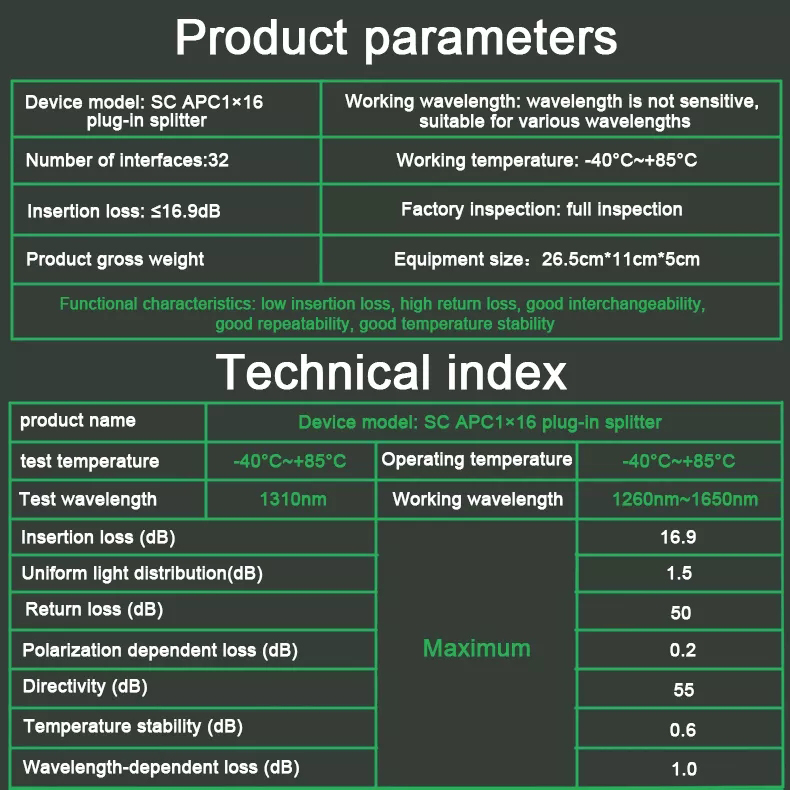

Specifications
| 1×32 Single Mode PLC Splitter Data Sheet | |||||||
| Operating Wavelength(nm) | 1260-1650 | Inspected Date | 2018/3/8 | ||||
| P/N: | PLC-A-1X32 | S/N: | 20180308043 | ||||
| Fiber Type | G657A1 | Fiber Length(m) | ≥0.6 | ||||
| Connector Type | SC/APC | Package Dimension(mm) | 130*100*100 | ||||
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ | ||||
| Item | IL(dB) | PDL(dB) | RL(dB) | ||||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 | |
| Spec. | MAX17.3 | MAX 0.3 | ≥55 | ||||
| Port1 | 16.40 | 16.55 | 0.19 | 0.13 | Pass | Pass | |
| Port2 | 15.96 | 15.94 | 0.08 | 0.10 | Pass | Pass | |
| Port3 | 16.26 | 15.85 | 0.17 | 0.17 | Pass | Pass | |
| Port4 | 16.28 | 16.00 | 0.02 | 0.01 | Pass | Pass | |
| Port5 | 16.51 | 16.41 | 0.13 | 0.18 | Pass | Pass | |
| Port6 | 16.60 | 16.45 | 0.04 | 0.03 | Pass | Pass | |
| Port7 | 15.82 | 16.03 | 0.06 | 0.03 | Pass | Pass | |
| Port8 | 15.94 | 16.17 | 0.07 | 0.16 | Pass | Pass | |
| Port9 | 15.89 | 16.27 | 0.06 | 0.04 | Pass | Pass | |
| Port10 | 16.11 | 16.54 | 0.07 | 0.12 | Pass | Pass | |
| Port11 | 16.09 | 16.56 | 0.16 | 0.14 | Pass | Pass | |
| Port12 | 16.33 | 15.84 | 0.10 | 0.11 | Pass | Pass | |
| Port13 | 16.45 | 16.17 | 0.08 | 0.11 | Pass | Pass | |
| Port14 | 16.42 | 16.05 | 0.06 | 0.09 | Pass | Pass | |
| Port15 | 16.01 | 15.84 | 0.10 | 0.16 | Pass | Pass | |
| Port16 | 16.52 | 16.58 | 0.04 | 0.17 | Pass | Pass | |
| Port17 | 15.95 | 16.44 | 0.04 | 0.08 | Pass | Pass | |
| Port18 | 16.56 | 16.18 | 0.14 | 0.14 | Pass | Pass | |
| Port19 | 16.05 | 16.10 | 0.06 | 0.09 | Pass | Pass | |
| Port20 | 15.83 | 15.81 | 0.09 | 0.12 | Pass | Pass | |
| Port21 | 16.25 | 15.88 | 0.06 | 0.08 | Pass | Pass | |
| Port22 | 16.22 | 16.12 | 0.02 | 0.05 | Pass | Pass | |
| Port23 | 16.44 | 16.10 | 0.12 | 0.04 | Pass | Pass | |
| Port24 | 16.40 | 16.36 | 0.08 | 0.05 | Pass | Pass | |
| Port25 | 16.03 | 15.90 | 0.08 | 0.08 | Pass | Pass | |
| Port26 | 16.10 | 15.98 | 0.16 | 0.03 | Pass | Pass | |
| Port27 | 16.01 | 15.86 | 0.03 | 0.14 | Pass | Pass | |
| Port28 | 16.33 | 15.98 | 0.14 | 0.18 | Pass | Pass | |
| Port29 | 16.01 | 16.24 | 0.03 | 0.18 | Pass | Pass | |
| Port30 | 15.94 | 16.40 | 0.06 | 0.10 | Pass | Pass | |
| Port31 | 16.48 | 15.89 | 0.04 | 0.07 | Pass | Pass | |
| Port32 | 16.52 | 16.44 | 0.06 | 0.02 | Pass | Pass | |
| Input | N/A | Pass | Pass | ||||
| MAX. | 16.56 | 16.44 | 0.16 | 0.18 | N/A | ||
| MIN. | 15.83 | 15.81 | 0.02 | 0.02 | N/A | ||
| Average | 16.19 | 16.10 | 0.08 | 0.09 | N/A | ||
