The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.
Detail Information | |||
| Name: | Distribution Box 16cores | Size: | 300*230*75 |
|---|---|---|---|
| Capacity: | 16cores For Splitter /16 Cores (adaptor) | Install: | PLC 1*8 2pcs /PLC 1X16 1PCS /16 Adaptors |
| Color: | White /Black /Light Gray | Optical Cable Ports: | 2~13mm |
| Mounting Way: | Wall Mounting Holding Pole | Waterproof Level: | IP65 |
| High Light: | fiber optic joint box,ftth fiber optic terminal box | ||
Features:
1, Total enclosed structure
2, Material:PC+ABS,wet-proof,waterproof,dust-proof,anti-aging,protection level up to IP65.

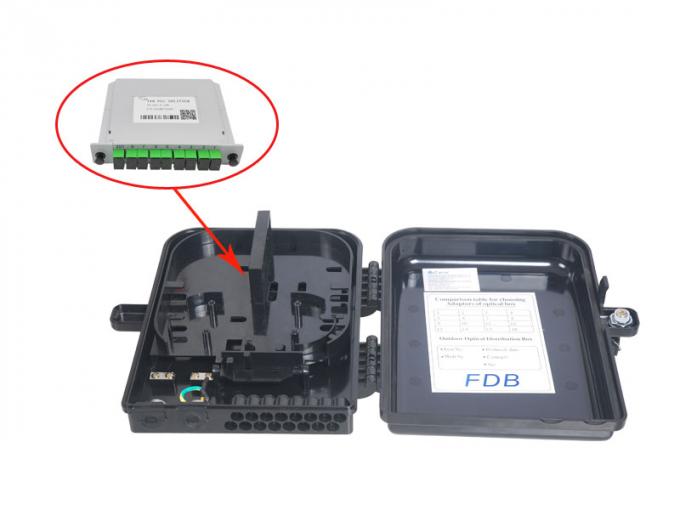

3, Clamping for feeder cable and drop cable ,fiber splicing,flxation,storage,distribution···etc,all in one.
4, Cable,pigtail,patch cords are running through own path without disturbing each other,cassette type SC/FC/PLC adaptor installation
5, Distribution panel can be flipped up,feeder cable can be placed in a cup-joint way,easy for maintenance and installation.
6, Cabinet can be installed by the way of wall-mounted,suitable for both indoor and outdoor uses.
Specifications:
| Item | KXT-16C/D |

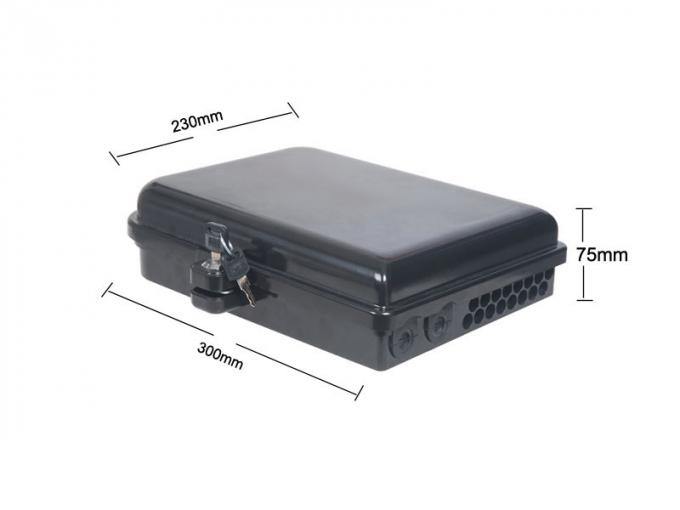

| Size(HxWxD)mm | 300*230*75 |
| Out Cable diameter(mm) | 0.9 , 2.0 , 3.0 , 4.2 , 4.8 |
| Cable ports | 16 |
| Adapter ports | 16 |
| Max capacity of splice | 16 |
| Suitable Adapter | FC,SC,LC,E2000 |
| Materials | PC |
| EnvironmentalTemperature(℃) | -40~80 |
1, Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
2, Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3, Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2×104 MΩ/500V(DC);
IR≥2×104 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
Configuration table:
Table 1 Model and configuration
| Model | Description | SizeA*B*C(mm) | Max Capacity | Installation Size D*E (mm) | Into the largest cable diameter (mm) | Cable outlet size (mm) |
| KXT-16C | Distribution Box | 300*230*75 | 16 | 190*298 | 16 | 2~4.6 |
| KXT-16D | Distribution Box | 300*230*75 | 16 | 190*298 | 16 | 2~4.6 |

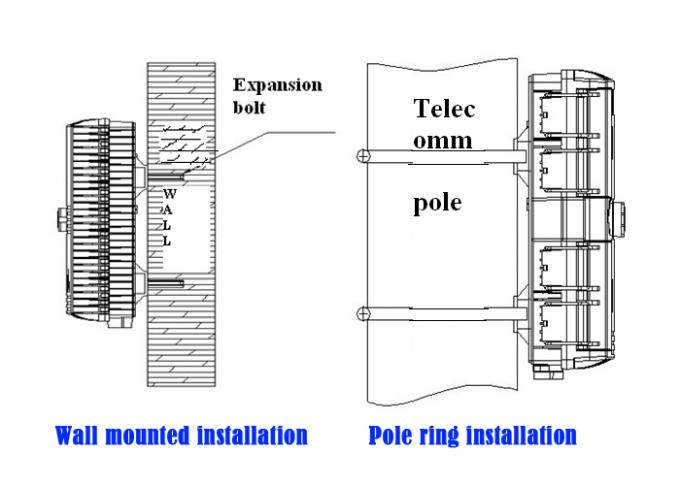

Site installation:
Installation:
1.Wall-mounted installation
Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.
2.Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .
Accessories:
1. Users' Manual*1.
2. Key*1.
3. Accessories Bag * 1
4. Easy pole ring*2,M6*20mm Bolt*2(Option)
