Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of EPON OLT. After years of growth and development, we have been mastering the manufacturing technologies maturely. As its advantages continue to be discovered, it is continually used in more field(s) such as Fiber Optic Equipment. Influenced by the market trends and customers' requirements, the design of fiber optic products,networking equipments,Communication system solutions,wireless transmission system,security monitoring system is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.

Model Number:EPON OLT 8 portType:EPON OLT
Place of Origin:Guangdong, ChinaBrand Name:KEXINT
Use:FTTHWarranty Time:3 years
Network:NoneConnector Type:Hybrid
Wavelength:1260-1250nmFiber Type:G657A2
Length:1mColor:colors
Size:320*440*44mmCertification:ISO9001:2008
Application:FTTX Systems G/E-PON Application CATV Networking

Product Description

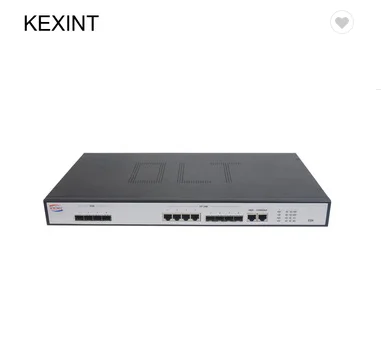

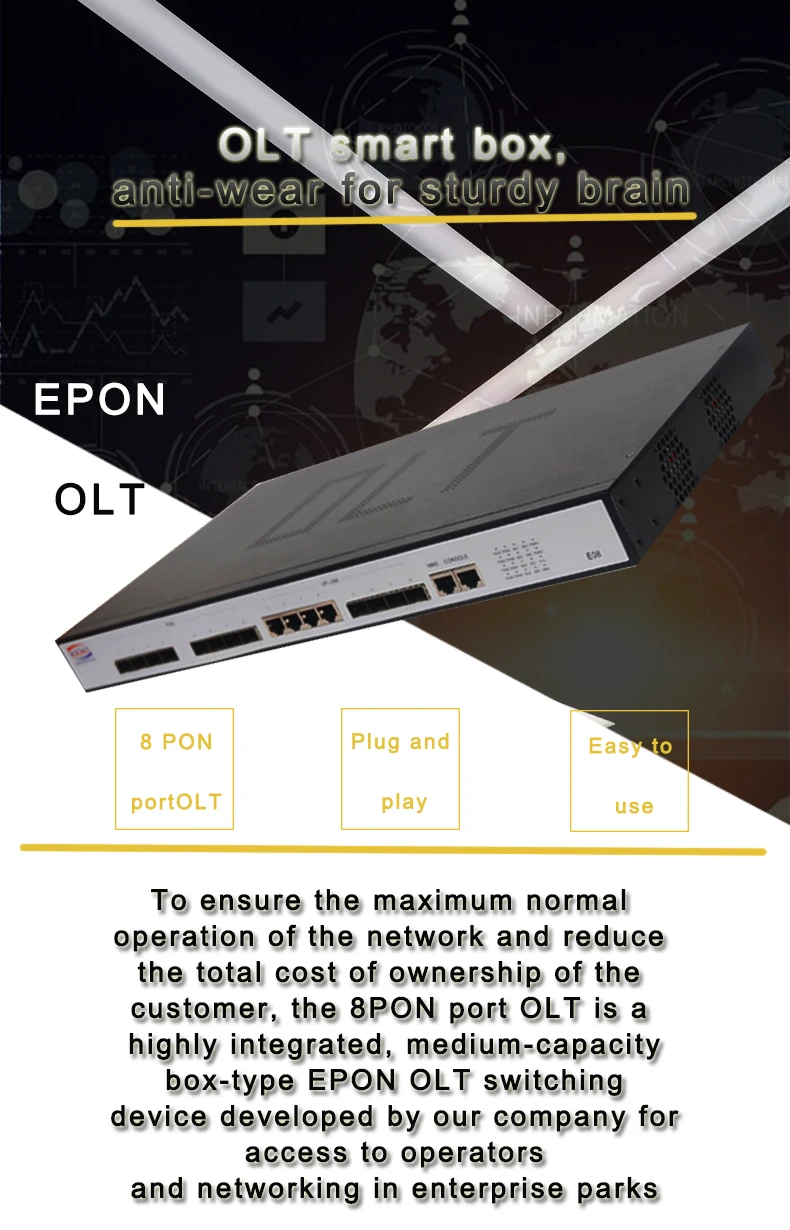

1U 8 PON GEPON OLT SFP 4 Optical Fiber 20km , 10g EPON OLT 1 / 64 ONT Uplink

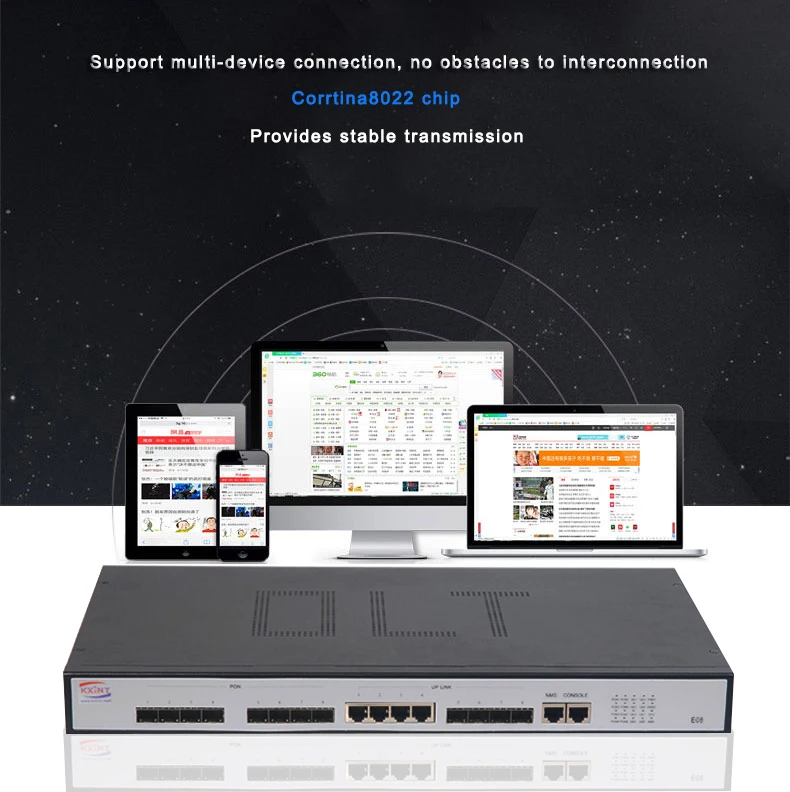

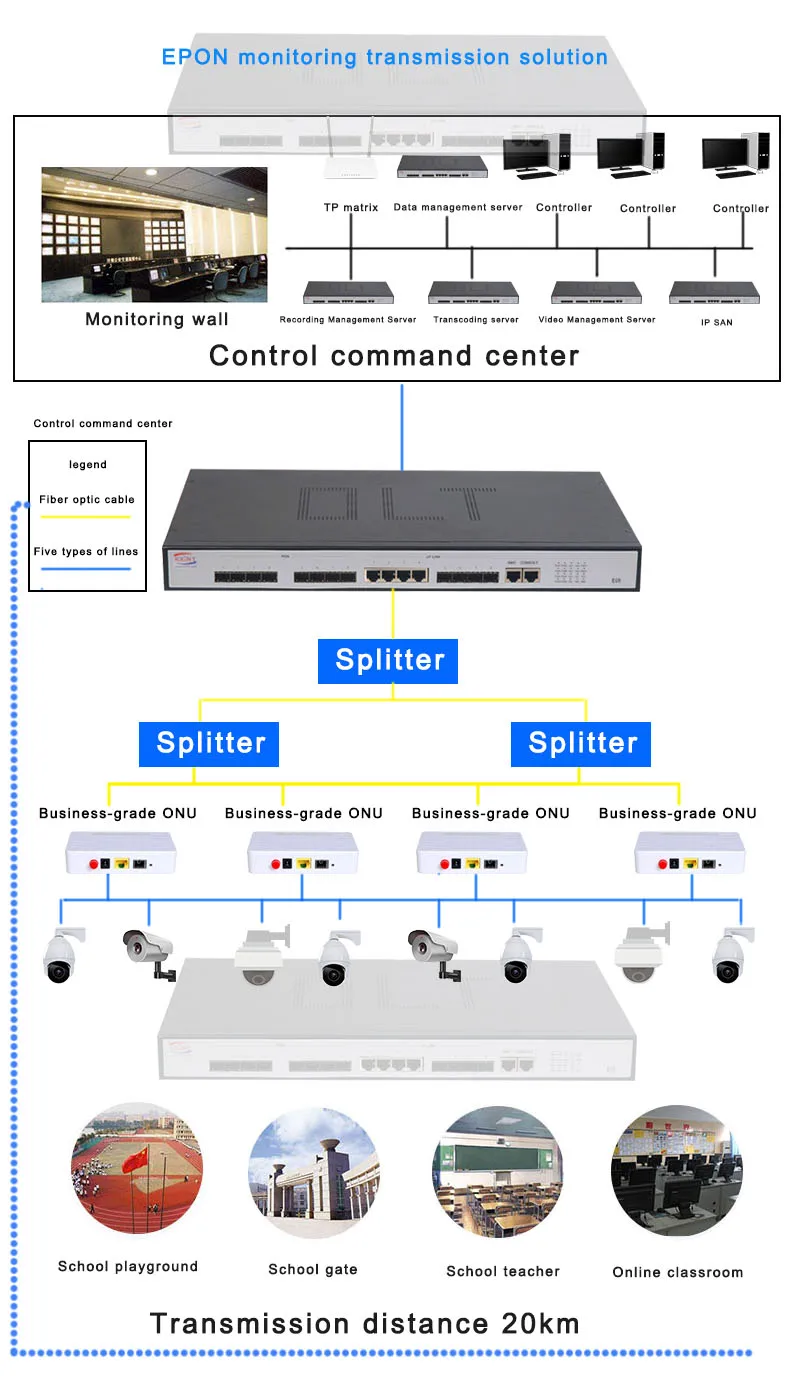

EPON-OLT-GP8008, the most effective access technology, is increasingly used in telecom broadband access, cable broadband access,FTTx, intelligent electric grid and surveillance.It is a small rack type EPON OLT. It consists of a EPON OLT and the network management card. I wors with EPON ONU series and ODN to establish a passive optic network.
Each PON port of 4 ports EPON OLT supports 64 terminal ONUs. It supports 10~20km transmission distance at the base of high bandwidth, and supplies full line speed L2/L3 transition capacity.
4 Port EPON OLT supports maximum 258 Logical Link Identifiers (LLID) and Dynamic Bandwidth Allocation (DBA). It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users. 4 Port EPON system greatly lowers the cost to establish network and assure high bandwidth. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.
Advantages:
PON:

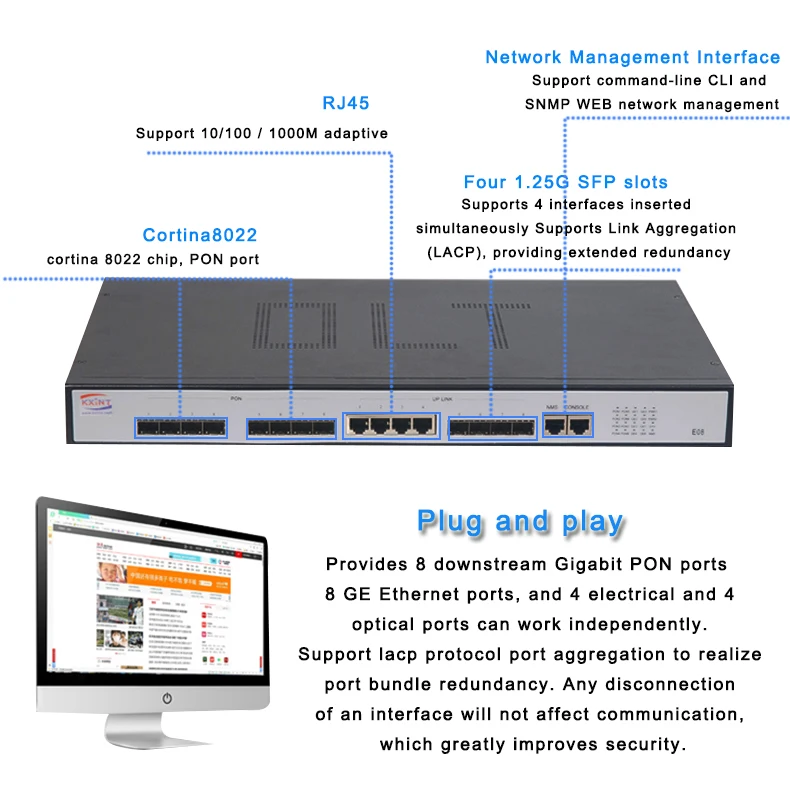

z 1000BASE-PX20 SFP
z Support 64 ONUs
z Full duplex EPON port operating at 1.25G

Standards compliance:
z IEEE 802.3ah
z CTC 2.x (China Telecom)
z IPMI version 2.0
Security:
z Physical isolation between ONUs
z Triple churning with 128 bit AES encryption - downstream and upstream
z 802.1x authenticator with remote administration

High Qos:
Each PON system supports maximum 128 Logical Link Identifier (LLID) and adopts AES-128 encryption to each LLID; support DBA function and SLA management function; support to debug different data flow through queue; support different stream weighting coefficient to fully guarantee QOS.
z 8 priority queues with multiprotocol classifier including IEEE802.1q VLAN, IEEE802.1p priority, IPv6 priority, IPv4 COS
z DBA support flexible bandwidth allocation algorithms, such as fixed, assured, and best effort,with small granularity 128kbps.
z IGMP, and IP Multicast
Powerful OAM Traits:

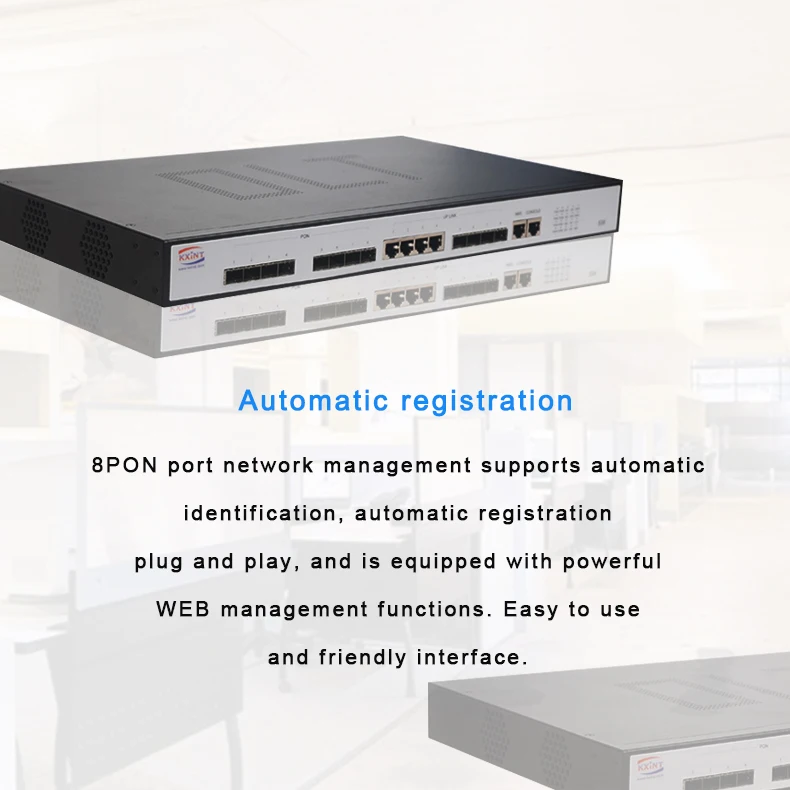

4 port EPON OLT supports auto-discovery and auto-register, user line testing, terminal ONU fiber failure alert and power failure
alert. It also contains abundant operation and manageable features such as MAC address limited and leached, IP address limited and
leached, bandwidth control, VLAN, flow control.

Perfect Management Function:
Support CLI, Telnet, GUI and SNMP management function; Support telenet upgrade on line; support in-band/out-band management;support Telenet supervising and falut location.
z CLI via telnet or console

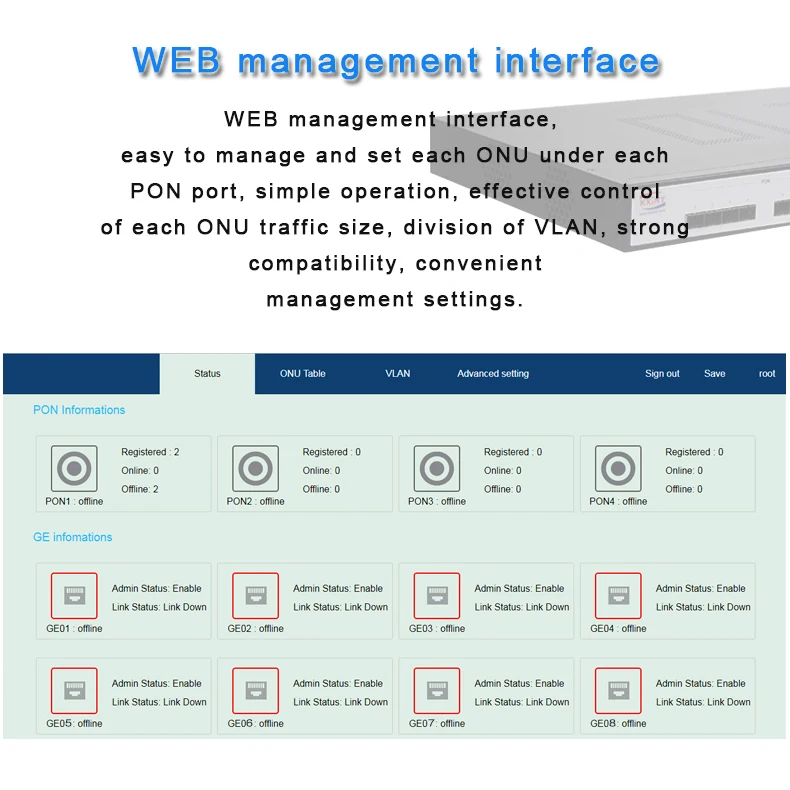

z Embedded Web Server to support Web-based management
z Embedded SNMP agent to facilitate NMS management
Working Environment:
Parameter
Specification
Max optical power of the module card
DC-48V or AC220V
Operating temperature
-10~55℃
Storage temperature
-40~70℃
Humidity
5%~90% non-condensing
Dimension
320(length) ×440(width) ×44(height):mm
