FWDM 1*2 1m, 3.0,T1550 R(1310,1490nm),SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB
I-WDM isekelwe kubuchwepheshe obufakazelwe befolda yefilimu emincane. Le WDM isetshenziswa kakhulu ohlelweni lokuxhumana lwe-fiber optical kanye ne-EDFA lapho kudingeka khona amabhendi ayisicaba futhi abanzi.


THUMELA UMBUZO MANJE
I gama le-brand:
KEXINT
Indawo Yomsuka:
I-SHENZHEN
Inombolo Yemodeli:
I-KXT-FW-SA1
Isitifiketi:
ISO-9001 2008
Inani elincane le-oda:
Ukuxoxisana
Imininingwane yokupakisha:
Izikhwama zipakishwa, bese kupakishwa amabhokisi, futhi igwebu liphakathi.
Isikhathi sokuthumela:
7
Imigomo Yokukhokha:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Ikhono Lokuhlinzeka:
500+pcs+1 usuku
THUMELA UMBUZO MANJE
  • Imininingwane Yomkhiqizo

Imininingwane Yemininingwane

Ubude besiteshi:T1260~1360nm R1480~1500&1530 ~ 1610nmUhlelo lwe-WDM:Isolation Transmission
Ukuzihlukanisa:45dBIsixhumi:1550+COM-SC/APC , 1490/1310-SC/UPC
Iphakheji:Ishubhu yensimbiUkuhlukaniswa kwe-Fiber:2 Impande
Ukuqondisa:55dBIphakheji (ngaphandle kwamabhuzu):90*20*10Mm
Ukukhanya Okuphezulu:

i-fiber optic splitter

,

wdm izingxenye

1.INCAZELO

I-WDM isekelwe kubuchwepheshe obufakazelwe befolda yefilimu emincane. Le WDM isetshenziswa kakhulu ohlelweni lokuxhumana lwe-fiber optical kanye ne-EDFA lapho kudingeka khona amabhendi ayisicaba futhi abanzi.

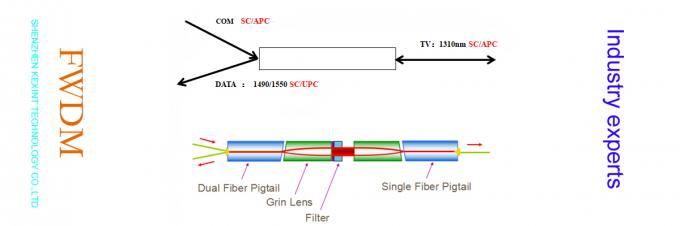

2.Umsebenzi Womkhiqizo

FWDM 1*2 1m, 3.0,SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB 0

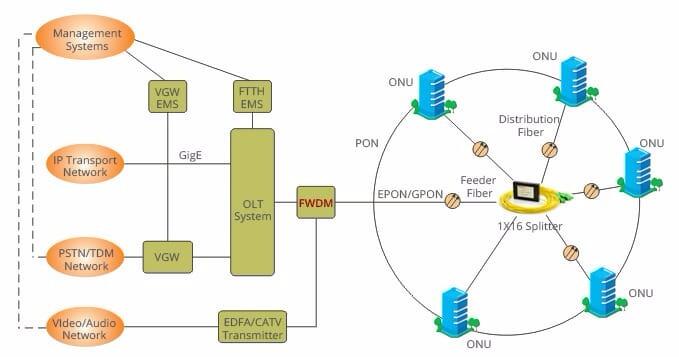

3.Uhlelo Lokusebenza Lomkhiqizo

EDFA

I-FTTH

Uhlelo lweCATV

Uhlelo lwe-WDM

4.Uhlu Lomkhiqizo Ohlobene

P/NIkhodiI-P/N yekhasimendeQaphela
Idivayisi ye-FWDM
WDM-1x2-SM-R45T13-1m-3.0-30db-SC/APC-SC/UPC-SC/APC


1 m, 3.0, T1310, R1490/1550 nm SC/UPC (DATA 1490nm, 1550nm), SC/APC (TV 1310nm&Com)














5.Izici:

Ibhendi Yokusebenza Ebanzi

Ukuhlukaniswa Kwesiteshi Okuphezulu

Ukulahlekelwa Kokufaka Okuphansi

Ukuthembeka Okuphakeme Nokuzinza

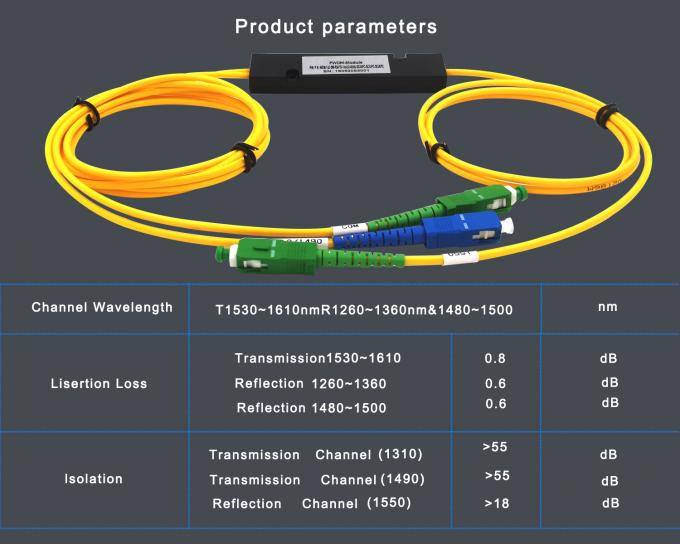

6. Imininingwane:

IpharamithaI-FTTH
I-Transmission Operating Wavelength (nm)1550+/-10
I-Reflection Operating Wavelength (nm)1310±50/1490+/-10
I-IL (dB)Ukuzindla≤0.6
Ukudluliswa≤0.8
I-IL Flatness (dB)< 0.3
Isolation(dB)Ukuzindla> 18
Ukudluliswa> 55
Isiqondiso(dB)>55
I-RL (dB)> 50
I-PDL(dB)<0.1
PMD(ps)<0.1
Ukubamba Amandla(mW)300
Izinga Lokushisa Lokusebenza (℃)-20 ~ +70
Izinga Lokushisa Lesitoreji (℃)-40 ~ +85
Ubukhulu bephakheji (mm)I-Ф5.5 × L34 (L38 ye-900um Jacket)



7. Ulwazi Lwe-oda:

I-SCWDMIsiteshiUhlobo lweFiberUbude be-FiberIsixhumi

M=Mux

D= Idemux

510=1510nm 530=1530nm 550=1550nm 570=1570nm1=I-Fibre Engenalutho
2=900um Jacket
3=3mm Ikhebula		1=1 imitha
2=2 Amamitha		0=Lutho
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC



FWDM 1*2 1m, 3.0,SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB 1

FWDM 1*2 1m, 3.0,SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB 2

FWDM 1*2 1m, 3.0,SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB 3



FWDM 1*2 1m, 3.0,SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB 4

8. Izinkonzo Zethu:

a. Umkhiqizi ochwepheshe, u-100% uhlolwe izikhathi ezingaphezu kwezingu-3.

b. Izixazululo zamakhasimende ngezinsuku, hhayi amaviki.

c. Izinsizakalo ezifudumele ezinokunaka ngokucophelela.

d. Ingahlinzeka ngombuzo wakho othize phakathi namahora angama-24.

e. Yonga izindleko eziningi, ulethe izinzuzo ezengeziwe ukuze ikhasimende likhulise ibhizinisi.

f. Sineminyaka engu-12 sinesipiliyoni kulo mkhakha. Singabahlinzeki bomsebenzi ongawethemba.
