FTTH Fast Connect Fiber Optic Distribution Box 4 into SC - 16 Ports Wall mounting Holding pole
Detail Information | |||
| Description: | 4 Into SC - 16 Ports | Color: | White / Black / Light Gray |
|---|---|---|---|
| Capacity: | 16 ~ 96 Cores | Material: | PC+ABS |
| Optical Cable Ports: | Optical Cable Ports | Mounting Way: | Wall Mounting/Holding Pole |
| Type: | Quick Connect | Structure Size: | 210*330*121 |
| High Light: | fiber optic connection box,ftth fiber optic terminal box | ||
KXT-B-16XL this equipment is used as client wiring equipment in FTTx system. It is mainly used for end welding, optical splitting, wiring output and other functions of optical transmission terminals. It can effectively terminate, protect and manage optical cables for optical network transmission Required equipment in the process.
Features:
·Water-proof design with IP-65 Protection Level.
·Integrated with flap-up splice cassette and adaptor holder
·All stainless metal plate and anti-rusting bolts, nuts
·Fiber bend radius control more than 40mm
·Suitable for the fusion splicer or mechanical splice
·2Pcs of 1*8 Splitter can be installed as an option
·Mechanical sealing structure and mid-span cable entry.
·16 ports cable entrance for drop cable
·16 adapter for drop cable patching
Applications :

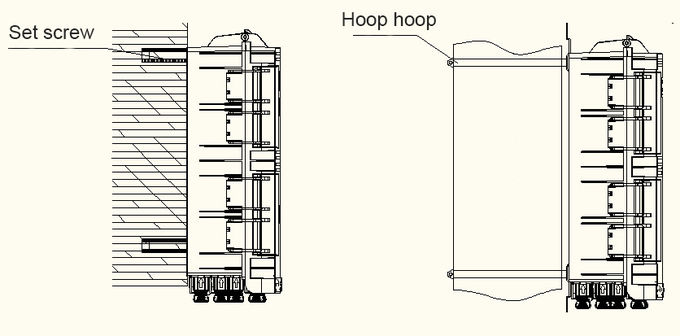

·Wall mounting and pole mounting installation
·FTTH pre-installation and filed installation
·2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable

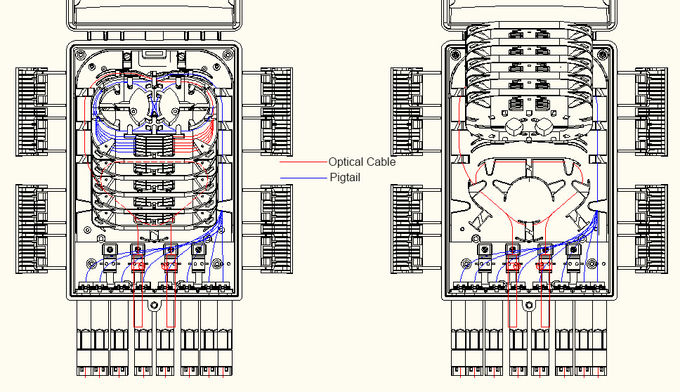

Cable port:
Could be connected 4 inlet ports, 16 outlet ports.
Cable diameter(mm): φ2~φ13
Structural characteristics:
1. The box is fully enclosed, with a simple and beautiful appearance.
2. The box material is PC + ABS, which is superior in moisture resistance, water resistance, dust resistance, corrosion resistance and aging resistance, and the protection level reaches IP65.
3. It has the functions of fixing, welding, inventory and wiring of optical cable / leather cable.
4. The incoming and outgoing lines of optical cables, pigtails, and fiber jumpers are independent of each other and do not interfere with each other, and are easy to maintain.
5. The switchboard can be turned upside down. The cable entry cable has a pull-out function, which is convenient and quick to construct and maintain.
6. The cabinet can be installed by wall or pole, and can be used indoors and outdoors.
3.Technical conditions:
1. Environmental requirements
Working temperature: -40 ℃ ~ + 85 ℃
Relative humidity: ≤85% (+ 30 ° C)
Atmospheric pressure: 70KPa ~ 106Kpa
2. Main technical indicators
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Mating durability life:> 1000 times
3. Lightning protection technical indicators
The box grounding device is insulated from the box, and the insulation resistance is not less than 2 MΩ / 500V (DC);
IR≥2 MΩ / 500V
The withstand voltage between the box grounding device and the box is not less than 3000V (DC) / min without breakdown, no flying
Arc; U≥3000V
Configuration:

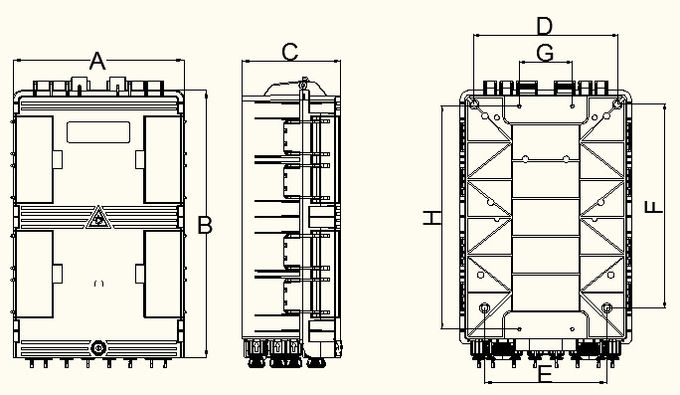

| Model | Function | Structure size (Figure 1) | Full configuration capacity | Wall mounting size (Figure 2) | Maximum diameter of cable entry hole A | |
| A*B*C(mm) | SC | D*E*F (mm) | G*H | |||
| KXT-B-16XL | Fiber Distribution Box | 210*330*121 | 16(SC/APC) | 176*150*250 | 65*273 | 14 |
Main Technical Indexes:
2.1 Environmental Temperature:-40°C~60°C;
2.2 Max capacity: 4 fibers;
2.3 Application for outdoor, IP65 grade
2.4 Material: High impact plastic.
