Detail Information |
|||
| Model: | CAT6 U/UTP 2 Core G657A2 | Sheath Material: | LSZH Sheath |
|---|---|---|---|
| Product Size: | 12.8*6.2*4.6mm (±0.2mm ) | Conductor: | Solid-Bare Copper 0.575mm |
| Fiber Optical: | G657A2 | Out Sheath: | LSZH |
| Length: | 305 M Or 500 M | Application: | FTTH , FTTB |
| High Light: | electric copper cable,fiber optic lan cable |
||
CAT6 U/UTP 2 Core G657A2 Copper Lan Photoelectric Composite Fiber Optic Network Cable 1000Mbps

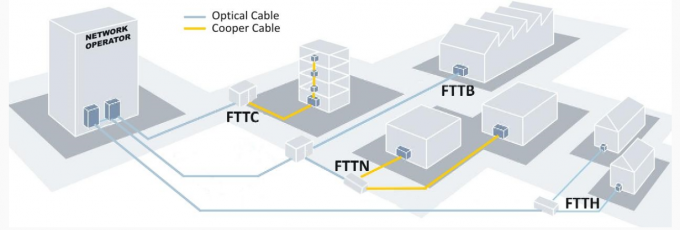

Photoelectric composite network cable can realize the transmission of optical signals, and can also realize the transmission of electrical signals at a rate of 1000Mbps. In the construction of communication room, FTTB, FTTO, FTTH can be flexibly wired and save space. The most important thing is to be able to easily achieve photoelectric separation, and to solve the wiring needs of different end users in the field of FTTH.Apply to Local aera network system and Subscriber network system.
Specification:
1. Model: UTP CAT 6 cable
2.Rated Temperature: -45 °C - 75°C
3.Unshielded twisted pairs:
4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
5.Insulation: HD-PE
6.Jacket: PVC or LSNH
7.Impedance:100±15%Ω at 1~100MHz
8.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,
Features:
1.Fast and Reliable Connection
2.Twisted Pairs with Bright Color for Easy Recognition
3.Ripcord and Footmark for Convenient Use
4.Smooth Jacket for Easy Pulling in Tight Space
5.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Application:
1.It’s mainly used for video surveillance
2.Computer network cabling project
3.Broadband network communication
4.Digital ISDN and ATM 155Mbps network
5.Ethernet network
6.Audio and data transmission

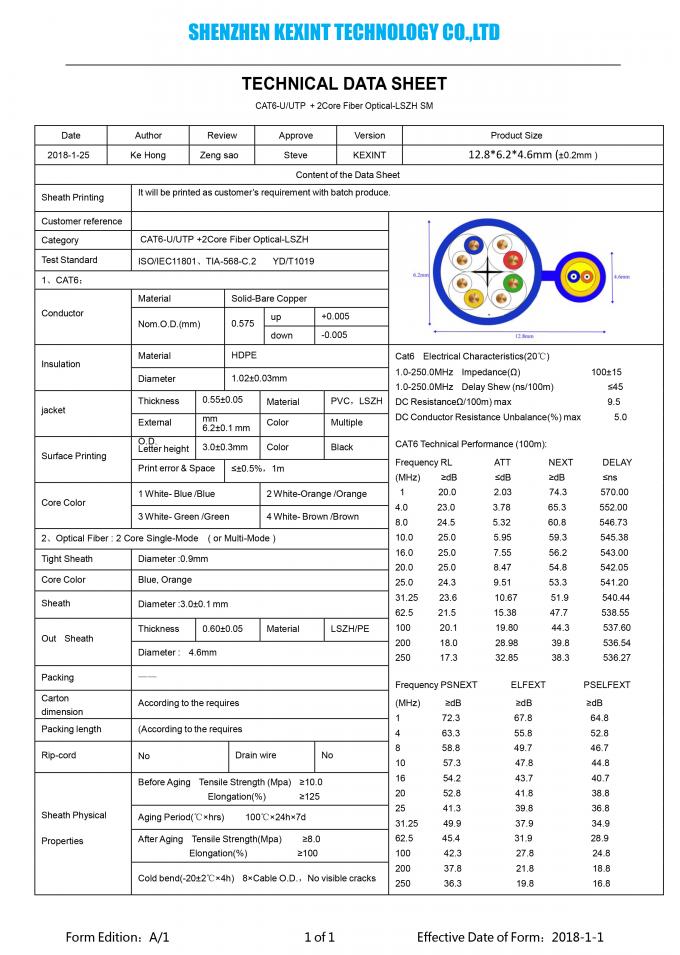

Product Design:
| Date | Author | Review | Approve | Version | Product Size |
| 2018-1-25 | Ke Hong | Zeng sao | Steve | KEXINT | 12.8*6.2*4.6mm (±0.2mm ) |
| Category | CAT6-U/UTP +2Core Fiber Optical-LSZH | |||||||
| Test Standard | ISO/IEC11801,TIA-568-C.2 YD/T1019 | |||||||
| 1,CAT6: | ||||||||
| Conductor | Material | Solid-Bare Copper | ||||||
| Nom.O.D.(mm) | 0.575 | up | +0.005 | |||||
| down | -0.005 | |||||||
| Insulation | Material | HDPE | ||||||
| Diameter | 1.02±0.03mm | |||||||
| jacket | Thickness | 0.55±0.05 | Material | PVC,LSZH | ||||
| External |
mm 6.2±0.1 mm |
Color | Multiple | |||||
| Surface Printing |
O.D. Letter height |
3.0±0.3mm | Color | Black | ||||
| Print error & Space | ≤±0.5%,1m | |||||||
| Core Color | 1 White- Blue /Blue | 2 White-Orange /Orange | ||||||
| 3 White- Green /Green | 4 White- Brown /Brown | |||||||
| 2,Optical Fiber : 2 Core Single-Mode ( or Multi-Mode ) | ||||||||
| Tight Sheath | Diameter :0.9mm | |||||||
| Core Color | Blue, Orange | |||||||
| Sheath | Diameter :3.0±0.1 mm | |||||||
| Out Sheath | Thickness | 0.60±0.05 | Material | LSZH/PE | ||||
| Diameter : 4.6mm | ||||||||
| Packing | —— | |||||||
|
Carton dimension |
According to the requires | |||||||
| Packing length | (According to the requires | |||||||
| Rip-cord | No | Drain wire | No | |||||
|
Sheath Physical Properties |
Before Aging Tensile Strength (Mpa) ≥10.0 Elongation(%) ≥125 |
|||||||
| Aging Period(℃×hrs) 100℃×24h×7d | ||||||||
|
After Aging Tensile Strength(Mpa) ≥8.0 Elongation(%) ≥100 |
||||||||
| Cold bend(-20±2℃×4h) 8×Cable O.D.,No visible cracks | ||||||||
