Ibhokisi Lokusabalalisa I-Fiber Optical
Ibhizinisi lobuchwepheshe obuphezulu eligxile ocwaningweni nasekuthuthukisweni kwezokuxhumana kanye nokukhiqizwa kwefiber optical.
Ulimi
Ibhizinisi lobuchwepheshe obuphezulu eligxile ocwaningweni nasekuthuthukisweni kwezokuxhumana kanye nokukhiqizwa kwefiber optical.
Usayizi omncane nesisindo esincane somzimba ohlangene wokufakwa kalula
·Udonga lufakwe ngokuvikela ngomshini
·Iyatholakala kuma-adaptha e-FC,SC,ST,LC
·Ifiber ingangena isuka phansi noma eceleni
I-Anti-UV, i-Ultra violet ukumelana nemvula
Imininingwane Yemininingwane | |||
| Umbala: | Okumpunga | Inombolo ebalulekile: | 12 Ingqikithi |
|---|---|---|---|
| Okubalulekile: | PC+ABS+PE | Isakhiwo esingangeni manzi: | IP65 |
| Kusayizi Wekhebula: | 2.0 ~ 12.5mm | Usayizi Wekhebula Langaphandle: | 2.0 3.0 4.2 4.6 4.8 Mm |
| Igama: | I-KXT-12G | Faka i-Splitter: | YEBO |
| Ukukhanya Okuphezulu: | ibhokisi lokuxhuma i-fiber optic,ibhokisi le-ftth fibre optic terminal | ||
| Into | I-KXT-12G | |

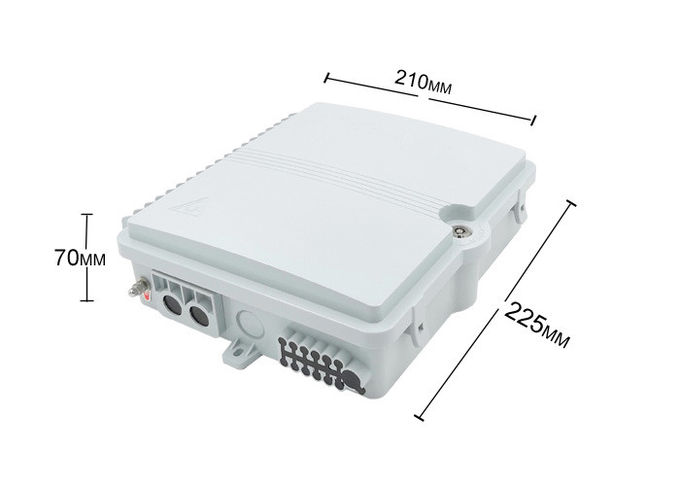

| Usayizi(HxWxD)mm | 225*200*65 | |
| Ububanzi bekhebula elingaphandle(mm) | 0.9 , 2.0 , 3.0 , 4.2 , 4.8 | |
| Izimbobo zekhebula | 12 | |
| Izimbobo ze-adaptha | 12 | |
| Umthamo omkhulu we-splice | 12 | |
| I-adaptha efanelekile | FC,SC,LC,E2000 | |
| Izinto zokwakha | I-PC | |
| I-EnvironmentalTemperature(℃) | - 40-80 | |
1, Imfuneko yezemvelo
Izinga lokushisa lokusebenza: -40 ℃~+85 ℃
Umswakama ohlobene:≤85%(+30℃)
Ukucindezela komkhathi: 70KPa ~ 106Kpa
2, Idatha enkulu yobuchwepheshe
Ukulahleka kokufakwa:≤0.2dB
Ukulahleka kokubuyisela kwe-UPC:≥50dB
Ukulahleka kokubuyisela kwe-APC:≥60dB
Impilo yokufakwa nokukhipha:>1000 izikhathi
3, Imininingwane yedatha yezobuchwepheshe yokuduma
Idivayisi yokubeka phansi ihlukaniswe nekhabhinethi, ukumelana nokuhlukaniswa kungaphansi kwe-2 × 104MΩ/500V(DC);
IR≥2×104 MΩ/500V
Amandla kagesi okumelana phakathi kwedivayisi ephansi kanye nekhabhinethi ayikho ngaphansi kuka-3000V(DC)/min, akukho ukubhoboza, akukho flashover; U≥3000V

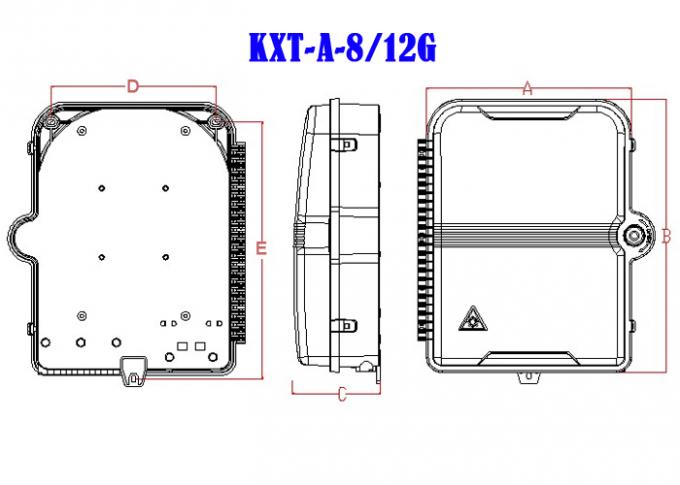

Ithebula lokumisa:
Ithebula 1 Imodeli nokumisa
| Imodeli | Incazelo | Usayizi(Pic 1)A*B*C(mm) | Amandla aphezulu | Usayizi Wokufaka I-D*E (mm) | Kububanzi bekhebula obukhulukazi (mm) | Usayizi wokuphuma kwekhebula (mm) |
| I-KXT-8G | Ibhokisi Lokusabalalisa | 320*240*100 | 8 | 168*210 | 8 | 2~4.6 |
| I-KXT-12G | Ibhokisi Lokusabalalisa | 320*240*100 | 16 | 168*210 | 12 | 2~4.6 |
Ukufakwa kwesayithi:

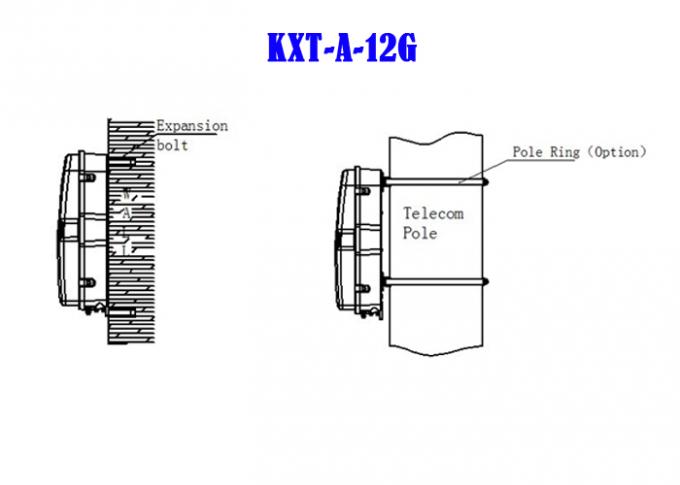

Ukufakwa:
1.Ukufakwa okufakwe odongeni
Gcoba izimbobo ezi-4 phezu kodonga ngokusekelwe kusayizi wethebula 1, beka ibhawodi lokunweba Φ7.5*40, beka ibhokisi ukuze liqondanise izimbobo futhi usebenzise ibhawodi ukubopha.

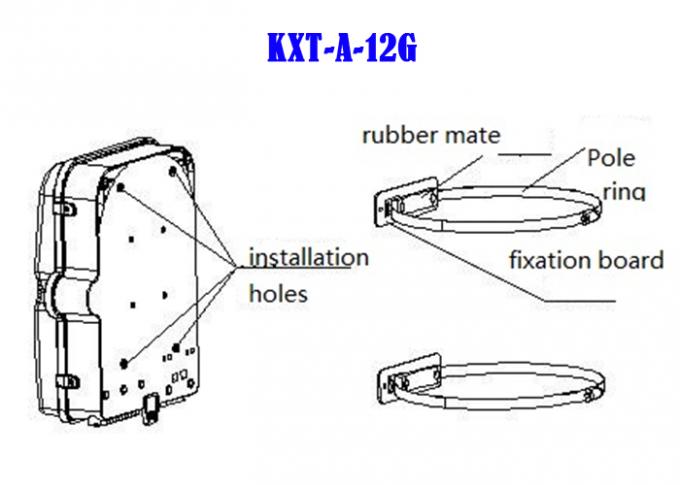

2.Ukufakwa kwe-Pole-mounted
Lungisa isethi engu-1 yendandatho yesigxobo esilula esigxotsheni se-telecom.
Izinsiza:
1. Imanuwali yabasebenzisi*1.
2. Ukhiye*1.
3. Isikhwama Sezinsiza * 1
4. Indandatho yesigxobo esilula*2,M6*20mm Bolt*2(Option)
Ukupakisha, ukuthutha kanye nokugcina
Le mpahla ifaka umswakama futhi ivikela ukuzamazama komhlaba. Izesekeli zipakishwa izikhwama zepulasitiki zokuqala, bese zifakwa emabhokisini anezikhwama zepulasitiki ukuze zivalwe. Kunezimpawu zokungangenwa amanzi kanye nokuzamazama komhlaba ngaphandle kwamabhokisi.Ayikwazi ukuhlehliswa kukuthutha futhi ikhululeke ekugingqikeni lapho ithwele. Sicela ulayishe ngokucophelela futhi uvimbele ukungqubuzana. Kufanele uyivimbele emvuleni enamandla ngaphambi kokufakwa. Izinga lokushisa ekuthuthweni kufanele lilawulwe phakathi kuka-35 ℃ kuya +55 ℃.Ukunqwabelana ngokweqile kwezimpahla kufanele kugcinwe emakhathoni. Umgcinimafa kufanele aqhelelane nokuguguleka kwemishini yegesi ebolayo futhi izinga lokushisa kufanele libe ngaphansi kuka-45℃ futhi libe ngaphezu kuka -5℃, futhi izinga lokushisa elihlobene akufanele libe phezulu esikhathini eside (ngokuvamile ngaphansi kwama-75%).
