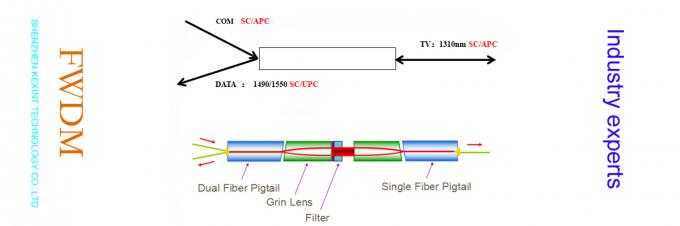

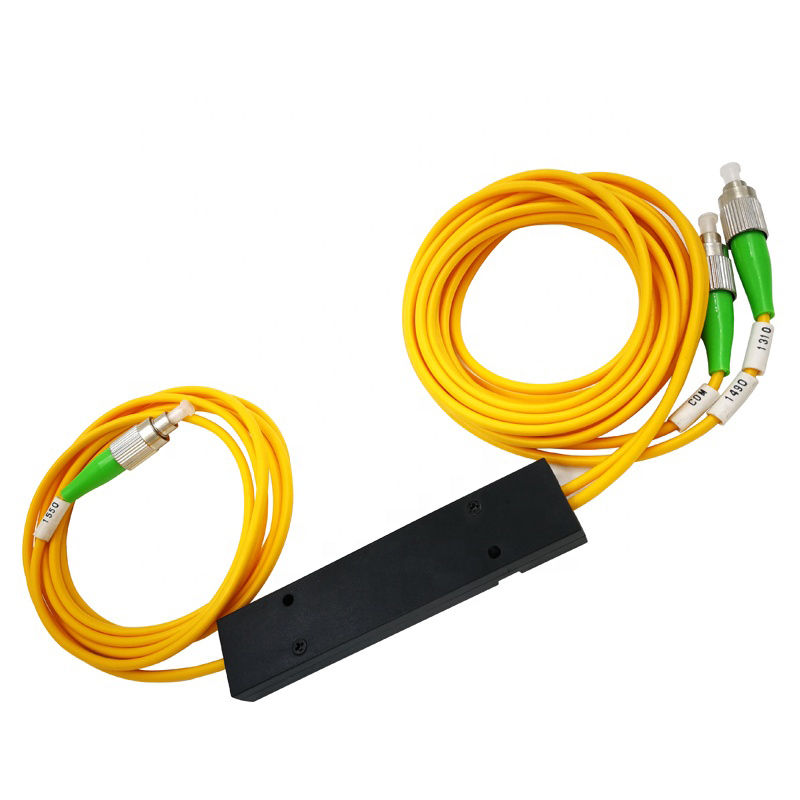

Imodyuli ye-WDM yokuhlunga esetshenziswe kakhulu kuma-amplifiers we-Optical Amplifiers, amanethiwekhi we-WDM. Idivayisi ihlanganisa noma ihlukanisa ukukhanya kuma-wavelength ahlukene (1310nm / 1490nm / 1550nm) ebangeni elibanzi. Ingakhulisa umthamo we-fiber eyodwa ukuze ifinyelele ukuxhumana kwe-bidirectional, ngakho-ke isetshenziswe kabanzi ku-Optical Network Ukuvuselelwa kanye nokunwetshwa, noma ukwethula ibhizinisi elisha eliphelele njll.
Ukuchazwa Komkhiqizo:
Izici:
Ububanzi be-wavelength bubanzi
Ukulahleka kokufakwa okuphansi
Isiteshi esiphakeme sodwa
Ukuqina okuphezulu kanye nokwethenjwa
Isicelo:
Ukuqashwa kwesistimu
Ama-Transmitters kanye ne-fiber
I-Fibre Optical Amplifier
Uhlelo lwe-catv
I-FTTH System
Ukucaciswa:
| Ipharameter | T1310 R1490&I-1550 | |
| Pand Band Wavelength Range (NM) | I-1260 ~ 1360 | |
| Ukuboniswa kwe-Band1 Wadleth Range (NM) | 1480 ~ 1500 | |
| Ukulahleka Kokufaka (DB) | Khombisa isiteshi | ≤0.6 |
| Isiteshi sokudlula | ≤0.8 | |
| Pass Band Rippler (DB) | <0.3 | |
| Ukuhlukaniswa (db) | Khombisa isiteshi | > " |
| Isiteshi sokudlula | >Umphobho wamakhasi wamavumthetho | |
| Ukuqina kokunciphisa Ukulahleka kokushisa (DB / ℃) | <0.005 | |
| Ukulahleka kokuncika kwe-polarizen (DB) | <0.1 | |
| Ukuhlakazwa kwemodi ye-polarization (PS) | <0.1 | |
| Ukuqondiswa (db) | >Okucindezelekile kakhulu | |
| Ukulahlekelwa Ukulahleka (DB) | >Okucindezelekile kakhulu | |
| Ukuphathwa kwamandla okukhulu (MW) | 500 | |
| Ukushisa okusebenzayo (℃) | 0 ~ + 70 | |
| Ukushisa kwesitoreji (℃) | -40 ~ + 85 | |
| I-Package Cimension (MM) | 1. φ5.5 x l35 (umcufi ongenalutho) | |
| 2. φ5 x5 x l38 (900um tube okuxekethile) | ||
| 3. l90xw20xh9.5 (2.0 mm noma 3.0mm ikhebula) | ||
Izinsizakalo zethu:
Umkhiqizi we-1.profussion, u-100% uhlolwe izikhathi ezingaphezu kuka-3.
2.Customers Solutions ngezinsuku, hhayi amasonto.
Izinsizakalo ezi-3.Yarmly ngezinto ezicophelela.
I-4.Can inikezela ngophenyo lwakho oluthile kungakapheli amahora angama-24.
5.Save Izindleko eziningi, ziletha izinzuzo eziningi zekhasimende ukwandisa ibhizinisi.
6.We wayesecela eminyakeni engu-12 nakho kule nsimu. Thina umphakeli professional ongayethemba.
