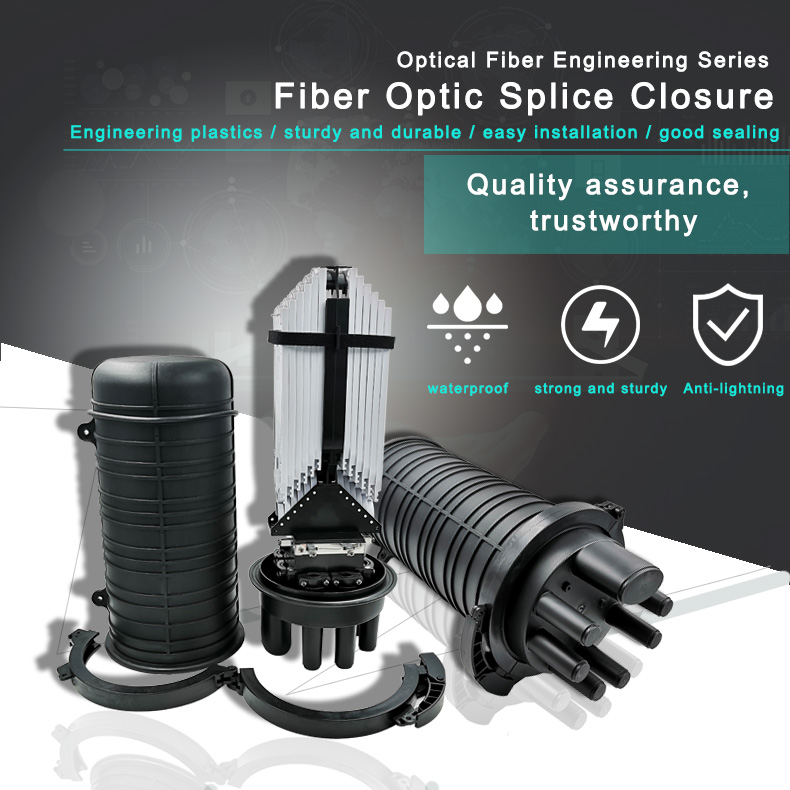

Materproof IP68 288 Core FTTH Dome Fibthic ukuvalwa kwama-telecom opharetha ephezulu
I-KXT-M-10 isetshenziswa kabanzi ekuhlukaniseni, ukusabalalisa izintambo ze-Optical eziguquguqukayo. Kungumthamo omkhulu, uMax. 288 Febers

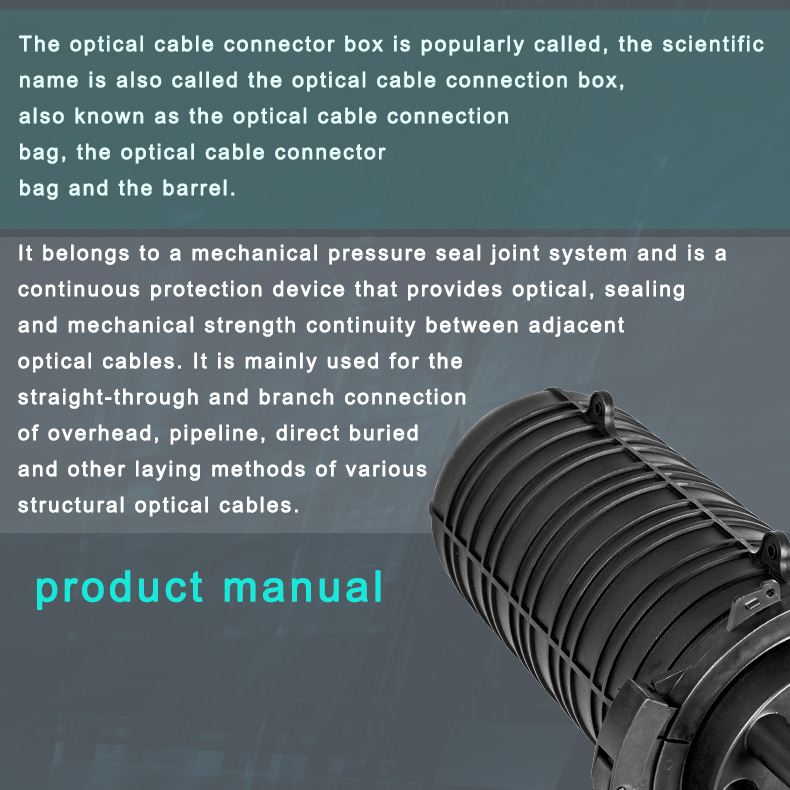

Uhlobo lochungechunge lweDome Shure, olusetshenziselwa ukuxhumana okuqondile ngesikhathi senqubo yokudlulisela kwe-fiber optical, futhi luhlinzeka ngokuvikelwa kokuxhumana okuhlanganyelwe, ngezimbobo ezi-6 ezincane eziyindilinga nomhlaba omkhulu wekhebula; Ukushisa Ukubekwa uphawu ngokushisa okushisayo okusobala; Ingasetshenziselwa ngaphezulu kwekhanda, i-pole, udonga nokufakwa okungcwatshwayo. Ngokusebenza kahle kokubekwa uphawu, ukufakwa okulula nobubanzi besicelo esibanzi kuyisinqumo esihle kakhulu sokuxhumeka kwe-fiber optical.

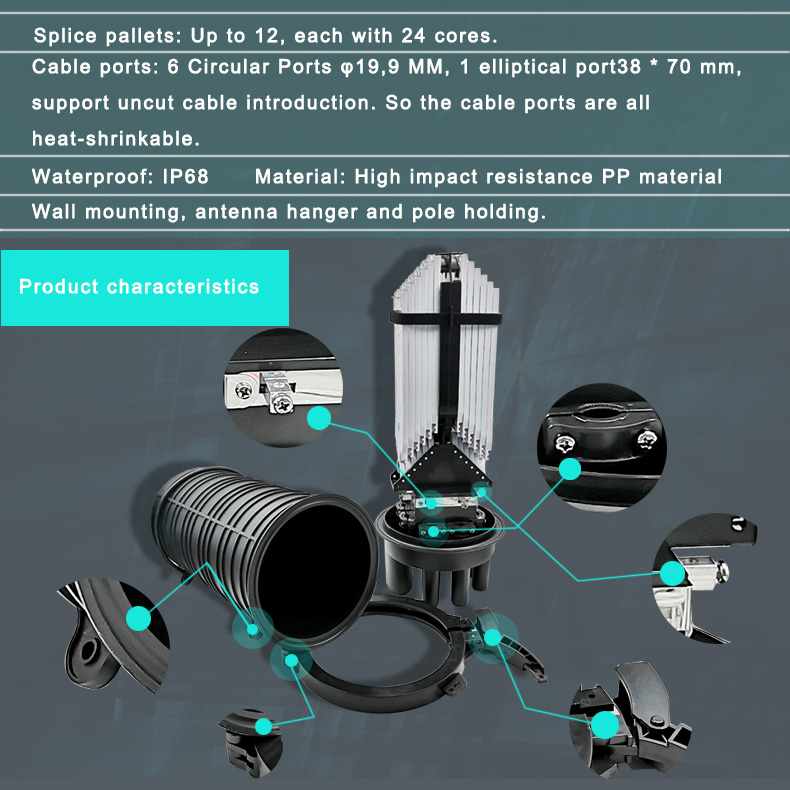

1. Isici Somkhiqizo:
1) Splice Tray: UMax. Ama-12pcs, ngalinye alitholile
2) I-Cable Port: I-6PCS Round Port φ19.9MM, 1pc Oval Port 38x70mm ukusekela ukungena kwekhebula ngaphandle kokusika. Wonke amachweba amakhebula acwebezela ukuncipha ukubekwa uphawu.

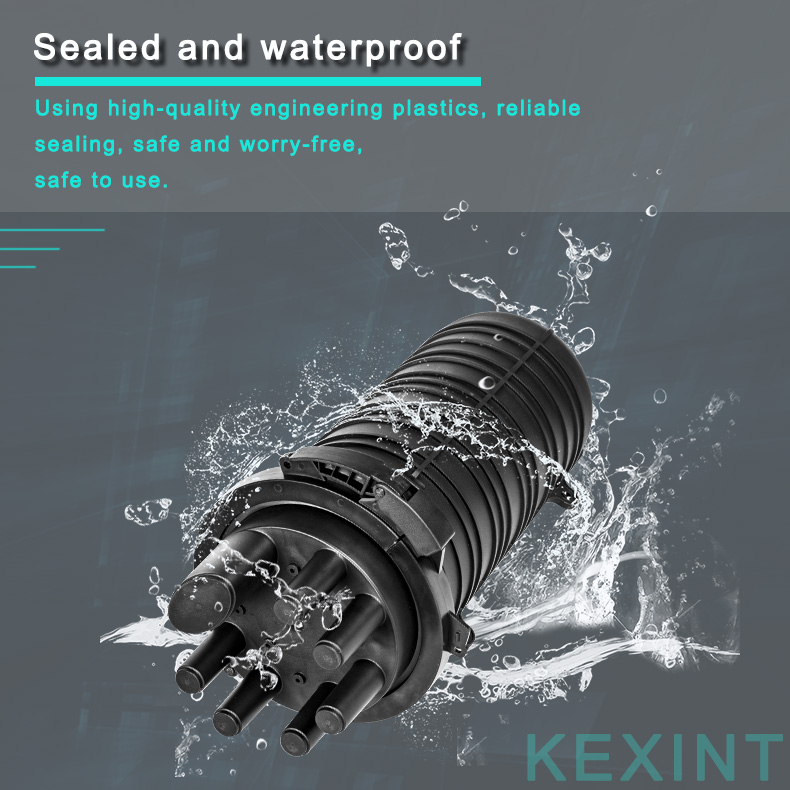

3) Amanzi: IP68
4) Ukufakwa odongeni, i-hanger ye-reanger ne-pole ebambe
5) Izinto: Ukumelana nomthelela ophakeme kwe-PP izinto ze-UV
* Zonke izinkomba ezisebenzayo zihambisana neNational YD 814.1-2004 Ejwayelekile yebhokisi lokusabalalisa.
* Amachweba amakhebula amane nane namane; Kunezimbobo eziyindilinga eziyi-1 nezinkulu, ezingangena futhi ziphume Φ7 Φ1 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 Φ 11 φ199.9 Izintambo ze-Optical.
* Isidumbu sebhokisi langaphandle senziwe nge-plastitics yobunjiniyela esiphakeme, inezici zesisindo esikhanyayo, amandla aphezulu emishini, ukuguga okuqinile, ukumelana okuqinile, ukumelana nombani, kanye nokuphila kwenkonzo eqinile.
* I-spy ye-splay ye-spray embondelekile kanye nedivaysi enezinto ezizimele ye-insulation yenza ukucushwa kwe-fiber fiber, ukunwetshwa kanye nentambo yentambo eguquguqukayo, elula futhi iphephile.

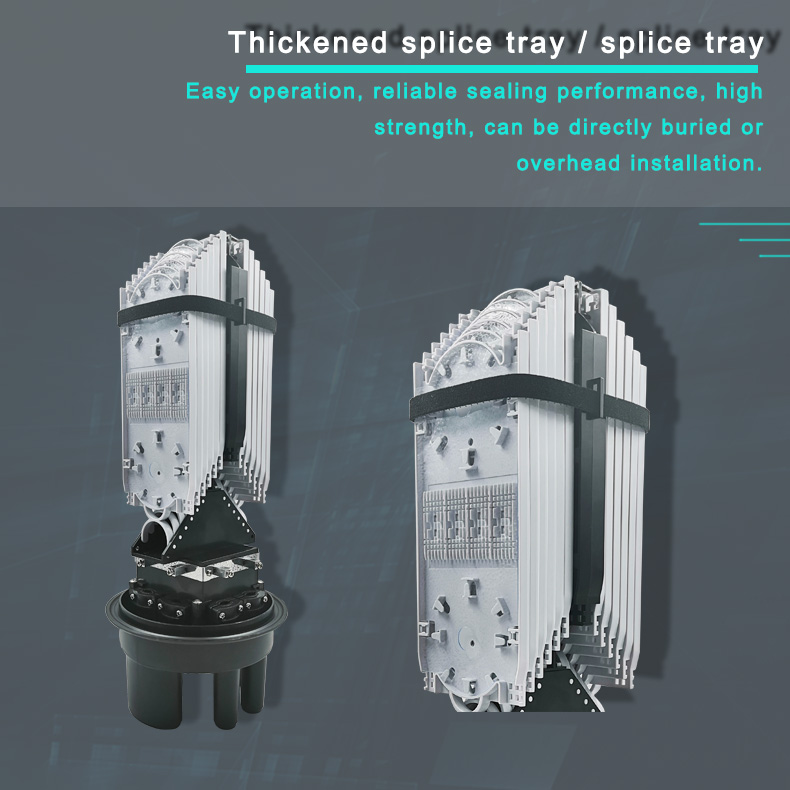

* I-Splice Tray ifakwe ngama-slots ahlukanisayo kanye nomnikazi we-plc splitter, ongalungiswa nganoma yisiphi isikhathi ngokuya ngezidingo zokuxhumana okuqondile noma okuphambukayo.

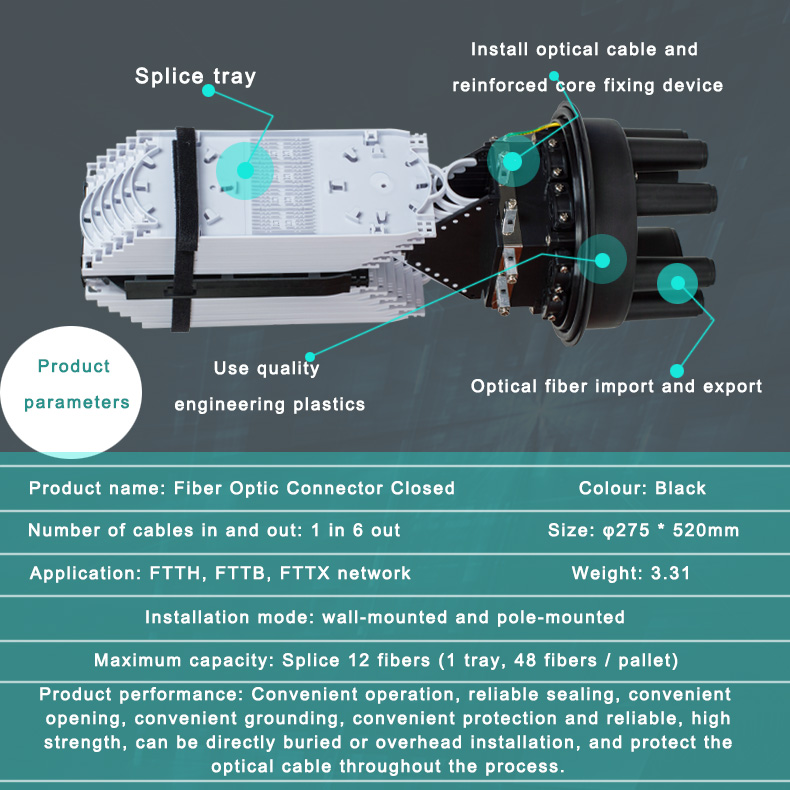

2. Inkomba yezobuchwepheshe:
* I-fiber radius ye-curvature: ≥40mm
* I-Optical Disk Ukulahleka okwengeziwe: ≤ 0.01DB
* Temperature Ibanga: - 40 ° C ~ + 70 ° C
* Ingcindezi ye-Anti Lateral: ≥2000n / 10 cm
* Ukuqinisekiswa okushaqisayo: ≥20n.m
* Izinga Lokuvikelwa: IP68
Inqubo yokufaka:
1. ukufakwa Ikhebula:
Vula umgodi: wabona amachweba wokungena njengoba kudingeka.
② Hlanza i-sheath yentambo ngendwangu (cishe amamitha ayi-1,8)
③ Slayida intambo ebhokisini ngomgodi.
2. ukulungiselela Ikhebula:
① Strip the Sheath Cable, hlanza ukugcwaliswa, usike umnyombo oqinisiwe ngebanga elingu-75mm kusuka ekusikeni kwe-sheath;
② Uma ikhebula kwakuvikela ifakiwe, ushiye ungqimba ikhebula ukuzivikela cishe 25mm x 25mm ohlangothini Axial at cutout annular ikhebula futhi ukunqanda ikhebula kwakuvikela;
Sika ishubhu evulekile ku-35mm kusuka engxenyeni ye-annur yekhebula le-optical, susa uwoyela kwi-optical fiber tub, ufake ishubhu evikelekile elingenalutho.
④ Qondanisa isigaba sekhebula bese uqeda umgodi wesisekelo, faka umnyombo oqinisiwe ungene emgodini wokulungiswa, unciphise nge-nati bese usika okweqile;
Uma i-Shield Wire isetshenziselwa ukuxhuma izintambo ezi-2, izintambo kufanele zibhangqwe ndawonye ngokuya nge-oda lokuphuma.
3. Okusaqanda imbobo ukubekwa uphawu:
① Sula ebusweni okweqanda futhi ikhebula emgodleni nge ucezu ehlanzekile iphepha noma indwangu ibanga 100mm kusukwa emgodini;
② Ukhalele indawo e-elliptical kanye ne-cable sheath ngephepha lesihlabathi, lihlanze ngendwangu;
③ Beka ishubhu elishisayo elicwengekile, bese umaka ikhebula le-optic ekugcineni kweshubhu;
④ Yenza umaki wesibili kukhebula ku-5mm kusuka kuMarker 1;
⑤ Songa ikhebula ngephepha elifudumele le-aluminium kusuka kuphawu lwesi-2;
⑥ Lapho ufaka ikhebula le-2, labela ishubhu elishisayo elishisayo ngokuya ngosayizi wekhebula, faka ikhadi legatsha (Qaphela: Wonke amakhadi egatsha kufanele afakwe ngokuphelele ku-Shrink tube)
⑦ Heat ukushisa Nciphisa tube ne ithoshi ukuze unciphe wonke umnikazi futhi ikhebula ke nokushisa Ukugunda nhlangothi zombili kuze ukuncibilika kwezinguzunga hot ugeleza aphume izintambo ezimbili.
ukufakwa 4. optic Ikhebula:
① I-Splice Preyint ngayinye ibambe imicu engu-16, futhi ibambelela kumashubhu ama-2 ayi-tare okuvikeleka ngakolunye uhlangothi lwe-tray, umaka ishubhu ngalinye ngebanga le-15mm kusuka emaphethelweni e-splice tray;
② nginqume ngokucophelela ishubhu lokuvikelwa okwengeziwe kuphawu bese uvikela ishubhu ku-tray ngentambo.
5. Ukuxhumeka kwe-Fibrical fiber nokugcina:
① Xhuma imicu ehambisanayo njengoba kudingeka;
② Qeqesha i-fiber ehlanganiswe ku-slot ye-splice tray, uhlanganise i-fiber esele ku-tray;
③ Bheka ukuthi yonke imicu iqinile, bese imboza isembozo esisobala bese uyilungisa ku-splice tray.
6. Ukufakwa kwebhokisi:
Beka isembozo sebhokisi esisekelweni sebhokisi. Qiniseka ukuthi umgodi we-elliptical wesisekelo sebhokisi uqondaniswe nomcibisholo omakwe ebhokisini lesembozo. Sebenzisa indandatho yokukhiya ukukhiya isivalo sebhokisi nesisekelo sebhokisi ndawonye.
